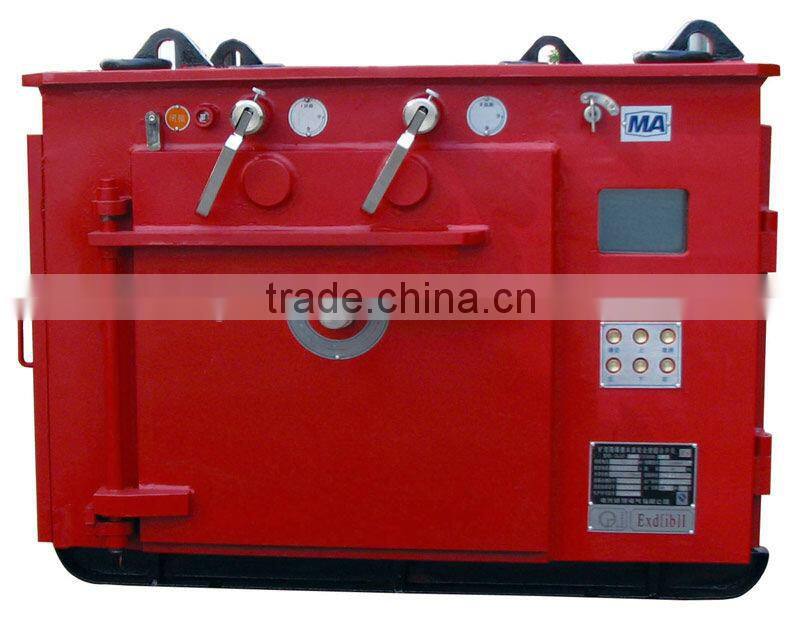

Mining Explosion-proof and Intrinsically Safe Combination Motor Starter

Purpose

It is ideal for mines having explosive gases (Methane) and coals, and it is used in AC 50Hz, 3300V power supply circuit. It can control start, stop, reverse rotation and double-speed switching of many 3-phase AC asynchronous inductance motors or many AC double-winding and double-speed motors, and it also can protect motors and their power supply circuits. Therefore, when it is attached in KJ254 mine electric power automatic control and comprehensive measurement and monitor system to realize automatic control on power supply equipments in mining area. The starter has all Chinese LCD touch screen display that has highly stable performance and is highly reliable for perfect man-machine conversation function.

Technical Features

1.All Chinese LCD touch screen display;

2.Pull-down menu setting;

3.Standard RS 485/232 communication interface is attached;

4.Various protective functions for overcurrent, short-circuit, undervoltage, phase loss, current leakage, overvolt age and 3-phase unbalance etc;

5.Real-time display of 3-phase current, system voltage, operating status of circuit, on-line status of circuit and  fault types etc;

6.Function of faults searching and faults recording;

7.It is attached in KJ254 mine electric power automatic control and comprehensive measurement and monitor system to realize telemetry, telecommunication, remote control and remote regulation.

8.lead into equip:The fast plug, platen type can choose;

9.can provide a 4 kVA/127 V(220V) to illuminate power supply.
