Mining Explosion Proof Intrisically Safe Type AC Inverter

Mining Explosion Proof Intrisically Safe Type AC Inverter thumbnail-1
Mining Explosion Proof Intrisically Safe Type AC Inverter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
China DIANGUANG
Model Number:
ZJT-500(400/315/200)/660(1140)
Contact Supplier Request Quote Chat Now
Dianguang Explosion Protection Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name China DIANGUANG
Model Number ZJT-500(400/315/200)/660(1140)
Output Power Other, 200,315,400,500
Size 2000*1200*1200cm
Weight 980kg
Input Voltage AC 660/1140V 50/60 HZ, 220V
Output Voltage AC660/ AC1140V
Type DC/AC Inverters
Output Frequency 0.5-60HZ
Output Current 0.5A

Mining Explosion-proof &Intrinsically Safe AC Frequency Inverter

Purpose

 It is a high technology product assembling vacuum magnetic starter, digital frequency

converting speed adjustment device and related cooling technology. It is used to

control the soft start, soft stop and speed adjustment during operation of asynchronous

motor of AC frequency 50HZ,rated voltage 660V or 1140V,with the good features of

starting current small, starting speed stable, starting time adjustable, impact on grid

small, starting performance reliable, especially with starting curves ”S” and linear.

The curves are optional according to the accurate working status, only to reduce the

dynamic tension on equipment during the starting. If used with bell conveyor ,it is

possible to decrease the belt strength requirement of conveyor, dropping the initial

investment, meanwhile, extending the usage life of conveyor. When the frequency

convertor works on line, it is possible to adjust the power voltage and frequency of

motor according to the load of motor, only to achieve the expected torque and energy

saving.

 This product is mainly used to control the soft start, soft stop and operation process of

transportation equipment at the places of coal mine well, open-air mine, port wharf,

coal preparation plant, power generating factory.

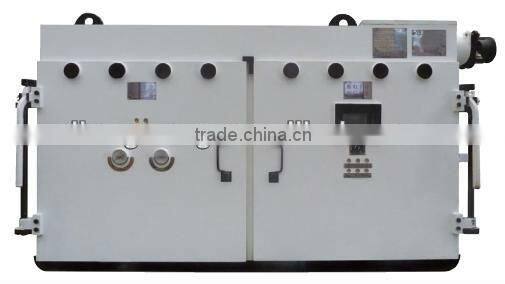

Mining Explosion proof Intrisically safe type AC Inverter





 Technical Data

Input Voltage(V)

AC 660/1140,50/60HZ(-15%+10%)

Output Voltage(V)

AC 660/1140

Starting Frequency(HZ)

0.5-60HZ adjustable settings

Screen Resolution (HZ)

0.01

Intrinsically Safe Power: input voltage(V)

220

Intrinsically Safe Max Breaking Voltage of

Output(V)

DC18

Max Current of Output(A)

0.5

Starting Time (S)

1-300 seconds adjustable

Working Type

Short-time ,on-line

Braking Type

Power consumption braking, DC braking,

feedback braking

Low Frequency Turn

Automatic torque compensation, low speed full

torque ,150%rated torque

Accelerative &Slow Down Curves

Liner and “S” curve

Cooling Method

Cool naturally below45KW, cool by heat tube

45-500KW

Control method

Vector control without speed sensor

Ex-mark

Exd[ib]I explosion-proof and intrinsically safe
