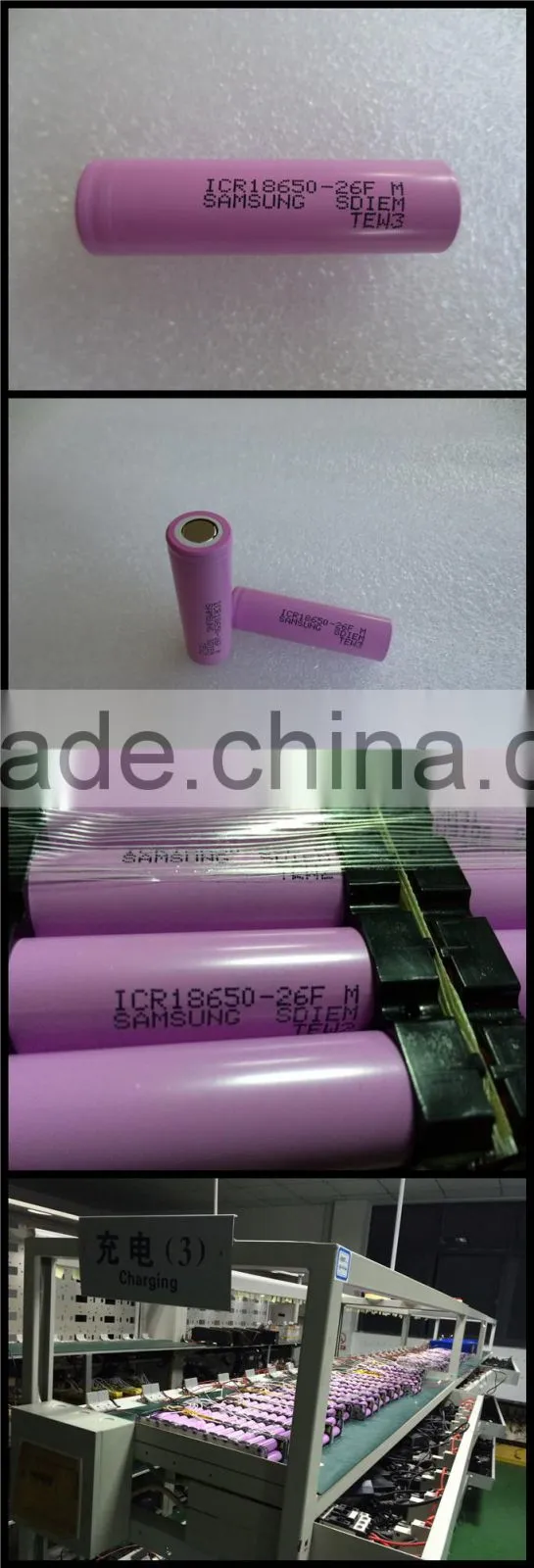

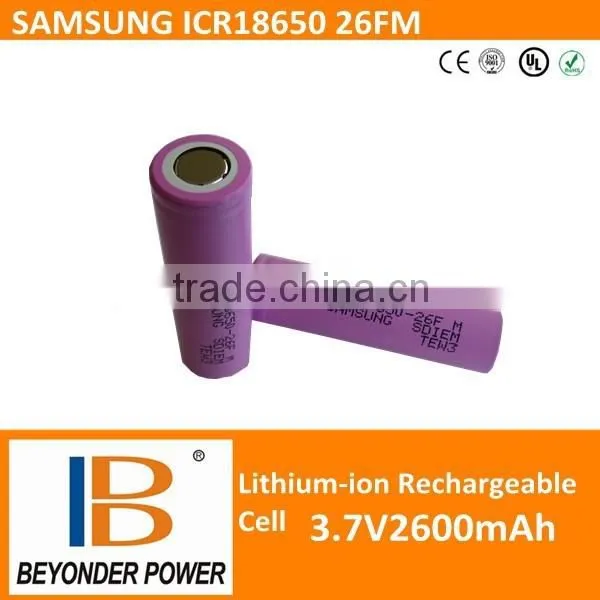

SAMSUNG SDI18650 26F cells, 3.7V2600mAh, for electric bicycles, UPS
Product Description
| Item Specification | |
| 1 Nominal Capacity | 2600mAh (0.2C, 2.75V discharge) |
| 2 Minimum Capacity | 2550mAh(0.2C, 2.75V discharge) |
| 3 Charging Voltage | 4.2 ±0.05 V |
| 4 Nominal Voltage | 3.7V |
| 5 Charging Method | CC-CV(constant voltage with limited current) |
| 6 Charging Current | Standard charge: 1300mA |
| Rapid charge : 2600mA | |
| 7 Charging Time | Standard charge : 3hours |
| Rapid charge : 2.5hours | |
| 8 Max. Charge Current | 2600mA(ambient temperature 25℃) |
| 9 Max. Discharge Current | 5200mA(ambient temperature 25℃) |
| 10 Discharge Cut-off Voltage | 2.75V |
| 11 Cell Weight | 47.0g max |
| 12 Cell Dimension | Height : 65.00mm max |
| Diameter : 18.40mm max | |
| 13 Operating Temperature | Charge : 0 to 45℃ |
| Discharge: -20 to 60℃ | |
| 14 Storage Temperature | 1 year : -20~25℃(1*) |
| 3 months : -20~45℃(1*) | |
| 1 month : -20~60℃(1*) | |
| Note (1): If the cell is kept as ex-factory status (50% of charge), the capacity recovery rate is more than 80%. | |
| Safety Test | |||||||
| 1 Overcharge Test | |||||||
| Test method: To charge the standard charged cell with 12V and 2.6A at 25℃ for 2.5 hours. | |||||||
| Criteria: No fire, and no explosion. | |||||||
| 2 External Short-circuit Test | |||||||
| Test method: To short-circuit the standard charged cell by connecting positive and negative terminal by less than 50mΩ wire for 3hours. | |||||||
| Criteria: No fire, and no explosion. | |||||||
| 3 Reverse Charge Test | |||||||
| Test method: To charge the standard charged cell with charge current 2.6A By –12V for 2.5 hours. | |||||||
| Criteria: No fire, and no explosion. | |||||||
| 4 Heating Test | |||||||
| Test method: To heat up the standard charged cell at heating rate 5℃ per minute up to 130℃ and keep the cell in oven for 60 minutes. | |||||||
| Criteria: No fire, and no explosion | |||||||

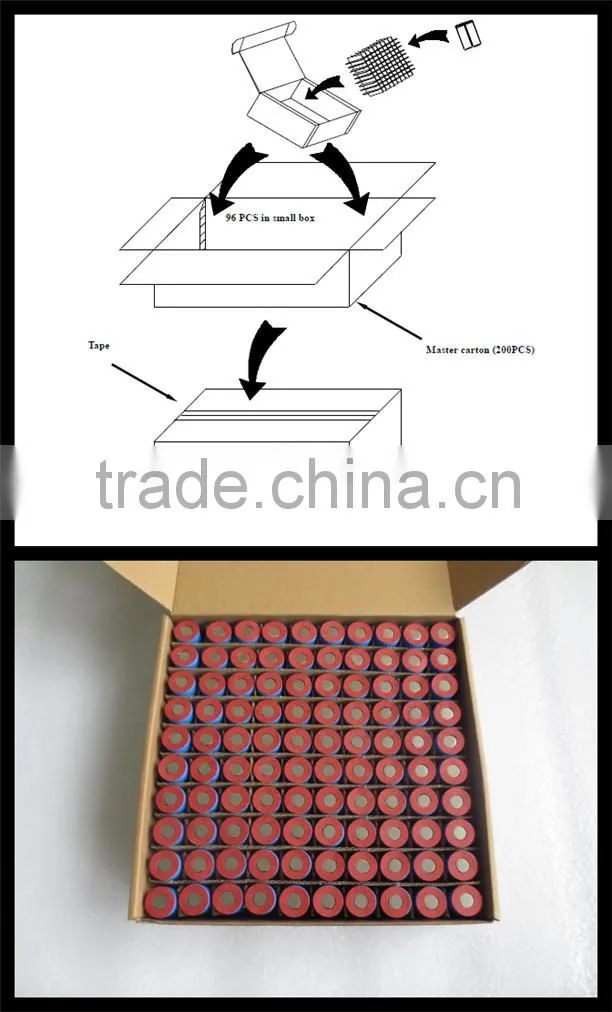

Packaging& Shipping
Shipping
1. Samples are always available and normally take 5-10 days ready to ship. Quantity goods usually get ready to ship in15 days after deposit received or as per order quantity.
2. We offer varies shipping ways, including via express such as TNT/UPS/FEDEX/DHL, airline as well as by sea based on customer requirements.
Shipping Port: Default port Shanghai or Shenzhen Port, China
Payment Terms
1. We accept L/C, T/T, PAYPAL, Western Union, Cash and so on.
2. 100% TT in advance for samples. For large quantities, 30% TT in advance as soon as order confirmed and the balance before shipping via TT or L/C etc.
3. If you prefer other payment terms, please contact us freely.
Our Services
Replacement Policy
1. We guarantee two years warranty of our battery products.
2. In case of any product defective, please notify us within 3 working days after receiving goods.
3. Any items must be returned in their original condition to qualify for a replacement.
4. The buyer is responsible for related shipping cost replacement incurred.
Advantages
1. Prompt response for your inquires and timely order process after payment is verified
2. OEM product is available. Customer’s logo or typical design could be shown in battery products based on mutual discussion.
3. Professional engineer team and strong technical ability , which always provides our clients with excellent ideas and perfect solutions.
4. As an experienced battery factory over years, we are able to offer customers high quality and favorable prices.
For more detailed information, please just click and send your inquiry.
