With UV Dryer Paper 3/4 Automatic Silk Screen Printer Machine
US$ 1 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
scien-art
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paper Flat Spot uv Semi-automatic Silk Screen Printing Machine for SaleUS$ 1 - 10,000MOQ: 1 Set -
New Design Wholesale 3/4 Automatic Screen PrinterUS$ 1 - 10,000MOQ: 1 Set
-
High Quality Directly Factory 3/4 Automatic Screen Printing MachineUS$ 1 - 10,000MOQ: 1 Set
-
New Design Wholesale 3/4 Automatic Silk Screen PrinterUS$ 1 - 10,000MOQ: 1 Set
-
High Quality Directly Factory 3/4 Screen Printing MachineUS$ 1 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
scien-art
Model Number
YKP6090/70100/90120
Usage
Card Printer, Cloths Printer, Label Printer, Paper Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, paper spot uv screen printer
Automatic Grade
Semi-Automatic
Voltage
220V/380V
Gross Power
2.3+12Kw
Dimensions(L*W*H)
1.6*1.3*1.28m+1230*980*1350mm
Weight
850Kg
Certification
CE/ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

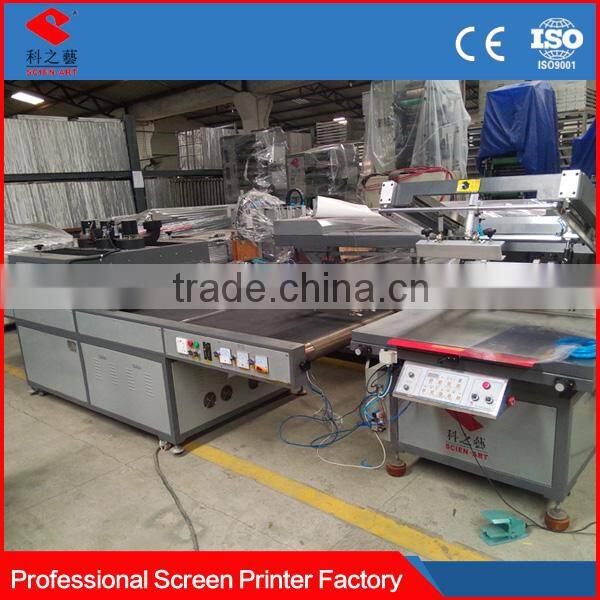

with UV dryer paper 3/4 automatic silk screen printer machine :
screen printer :
| Model | YKP6090 | YKP-70100 | YKP90120 |
| Workbench Area (mm²) | 700*1000 | 800*1100 | 1000*1300 |
| Max Print Area (mm²) | 600*900 | 700*1000 | 900*1200 |
| Max Screen Size(mm) | 900*1200 | 1000*1300 | 1200*1500 |
| Min Screen Size(mm) | 450*550 | 550*650 | 650*700 |
| Frame Lift Height (mm) | 300 | 300 | 300 |
| Operation Air Pressure (Mpa) | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 |
| Air-Consumption(0.6Mpa)(L/pcs) | 13 | 13 | 13 |
| Source Power (kw) | 2.3 | 2.3 | 2.3 |
| Rated Power (V/Hz) | 220/50 | 220/50 | 220/50 |
| Max Table Height(to floor) | 820 | 820mm | 820 |
| Printing Speed (pcs/h) | 500-1200 | 500-1200 | 500-1200 |
| Dimension (mm) L×W×H | 1500*1200*1250 | 1600×1350×1280 | 1800*1400*1300 |
| Weight (kg) | 410 | 480 | 550 |
UV dryer technical parameters:
Model |
UV750 |
UV1000 |
Conveyor belt width(mm) |
750 |
1000 |
Power(V/Kw) |
380V/12.5KW |
380V/12.8KW |
Conveyor speed(m/min) |
0-15 |
0-15 |
UV light power(kw) |
5.6kw; 2 set |
5.6kw; 2 set |
Overall dimensions(mm)L*W*H |
2500(or4000)*980*1350 |
2500(or4000)*1230*1350 |
Weight(kg) |
300 |
350 |
video link : https://youtu.be/yisbZRDEpzs
| |||
| Roll to roll screen printer | Automatic Screen Printer | Semi-Auto Screen Printer1 | Semi-Auto Screen Printer2 |
| |||
| LED UV Curing System | UV Dryer | Three Fourths Auto-Screen Printing Line1 | Three Fourths Auto-Screen Printing Line2 |
