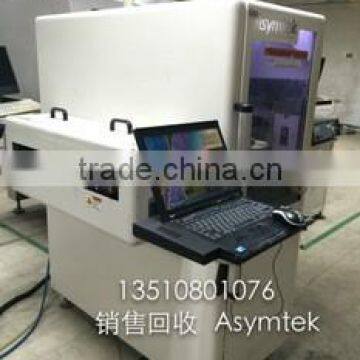

Used Asymtek S-920N glue dispenser machine
Conveyor
Max. board/carrier length: One station: 340 mm (13.4 in.)
Three stations: 320 mm (12.6 in.)
Min. board/carrier length: 25 mm (1.0 in.)
Max. board/carrier width: Single lane: 525 mm (20.7 in.)
Dual lane: 228 mm (9.0 in.)
Min. board/carrier width (1): 34 mm (1.3 in.)
Max. board/carrier thickness: 12 mm (0.5 in.)
Max. overboard clearance: 30 mm (1.2 in.)
Underboard clearance: 2.75 mm (0.11 in.)
Transport height: Conforms to SMEMA standard for
conveyor height; height adjustable
from 913-965 mm (35.9 - 38.0 in.)
from floor to bottom of the part
Edge clearance: 6 mm (0.24 in.);
5 mm (0.20 in.) available by request
Maximum load capacity (2): 2 kg (4.4 lbs.)
Operation modes: Automatic (SMEMA), manual, passthrough
Belt types: ESD O-ring, ESD high-temp 6-mm
flat belt, ESD high-temp 4-mm flat
belt
•Scalable machine design matches current and future process requirements for maximum
return on investment
•Flexible number of heating zones with Rapid Response Heaters and optional Controlled
Process Heat (CpH) software ensure quick ramp to set point, minimizing process time
•Digital vision system provides high-speed fiducial image acquisition
•Programmable fluid and valve pressure for closedloop processing, eliminates errors
associated with manual operations
•Slim design maximizes floor space utilization and lowers cost of ownership
