Help CenterHigh Performance Dispenser Asymtek X-1020 for Pcb Glue
Related Products
-
Second-hand Glue Dispenser Drives DJ-9000 for SaleUS$ 10,000 - 130,000MOQ: 1 Set -
Low Price Automatic Glue Dispenser X-1020 With High QualityUS$ 10,000 - 130,000MOQ: 1 Set
-
Hot Sale Used Liquid Glue Dispenser Asymtek in StockUS$ 10,000 - 130,000MOQ: 1 Set
-
High Quality Asymtek X-1020 Automatic Colorant Dispenser MachineUS$ 10,000 - 130,000MOQ: 1 Set
-
Asymtek X-1020 Used Glue Machine for PCB ICUS$ 10,000 - 130,000MOQ: 1 Set

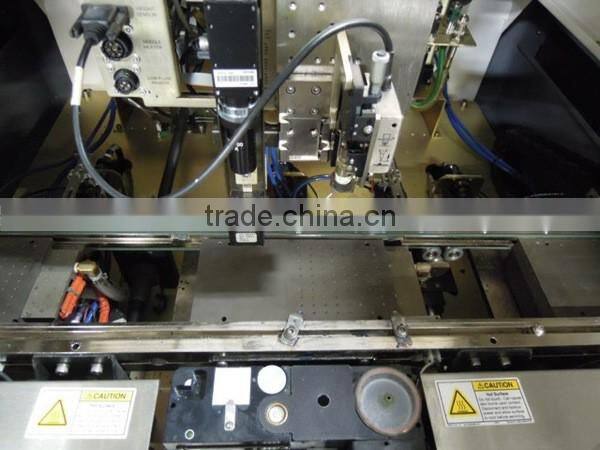

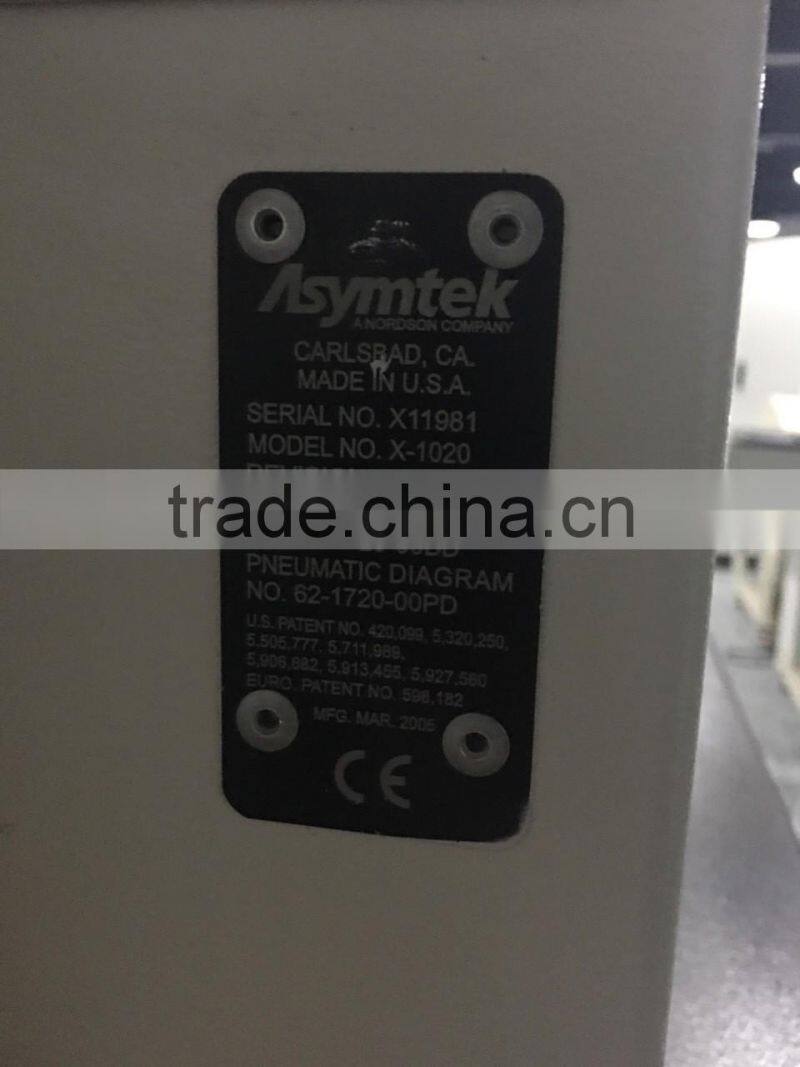

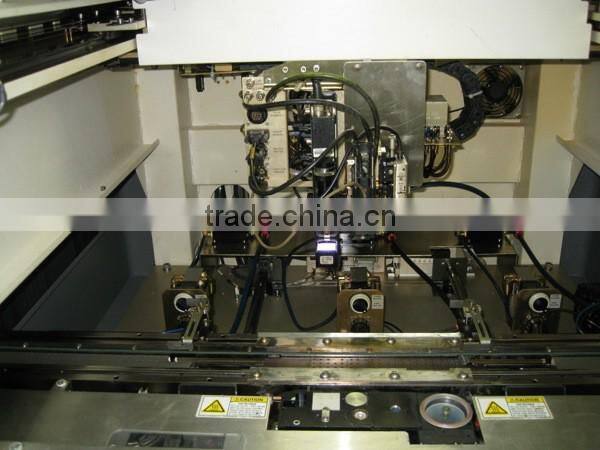

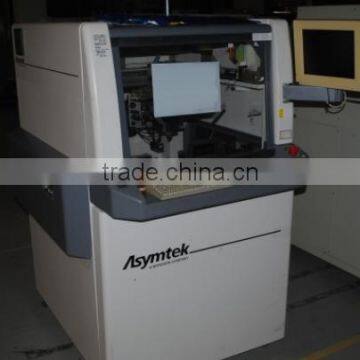

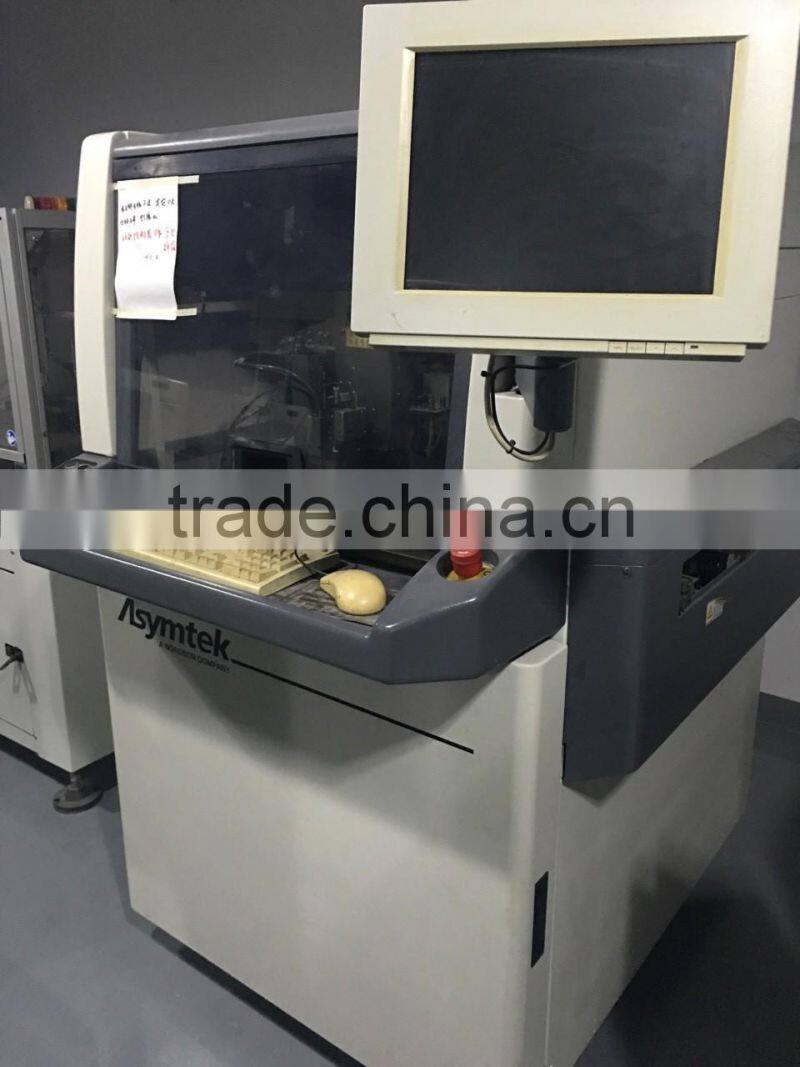

Used Asymtek X-1020 glue dispenser machine
X-1020 SYSTEM SPECIFICATIONS
MOTION SYSTEM:
X-Y Placement Accuracy: ±0.050 mm (0.002 in.), 3 Sigma
±0.076 mm (0.003 in.), 3 Sigma (fast mode)
Z Accuracy: ±0.025 mm (0.001 in.), 3 Sigma
High Precision Z Accuracy: ±0.012 mm (0.0005 in.), 3 Sigma
X-Y Repeatability: ±0.025 mm (0.001 in.)
Encoder Resolution: 5 micrometer
X-Y Acceleration: 1.0 g peak with S-curve jerk control
X-Y Velocity: 1 m/s (40 in/s) peak
X-Y Travel: 501.4 x 541.5 mm (19.7 x 21.3 in.)
Z Travel: 89.0 mm (3.5 in.)
X-Y Type: Brushless DC servomotor driven,
low-inertia, closed-loop, high-resolution
cable drive with linear-encoder feedback
Z Type: Brushless DC servomotor, rack and pinion
Z-drive with precision encoder feedback
DISPENSE AREA (X-Y):
DJ-9000, DV-8K, DV-7K: |
458.2 x 459.0 mm (18.0 x 18.1 in.) |
DP Pump: |
442.2 x 418.6 mm (17.4 x 16.5 in.) |
Dual Action (Valve 1/Valve 2):
DV or DJ/DV or DJ: |
356.9 x 432.5 mm (14.1 x 17.0 in.) |
DV or DJ/DP: |
353.0 x 394.2 mm (13.9 x 15.5 in.) |
DP/DP: |
309.0 x 394.2 mm (12.2 x 15.5 in.) |
1.Precise jetting of a wide variety of materials such as underfill, encapsulants, no-flow underfill, stacked die adhesives and more
2.Superior closed-loop control of process variables — fluid weight, flow rate, and substrate heat — for optimized throughput and yield with minimal operator interface
3.Enhanced pattern recognition system with robust blue-red on-axis lighting for a larger range of vision capability
4.Linear-encoded X-Y drive system for ± 0.050 mm high-precision placement accuracy and ± 0.076 mm for high-speed applications
