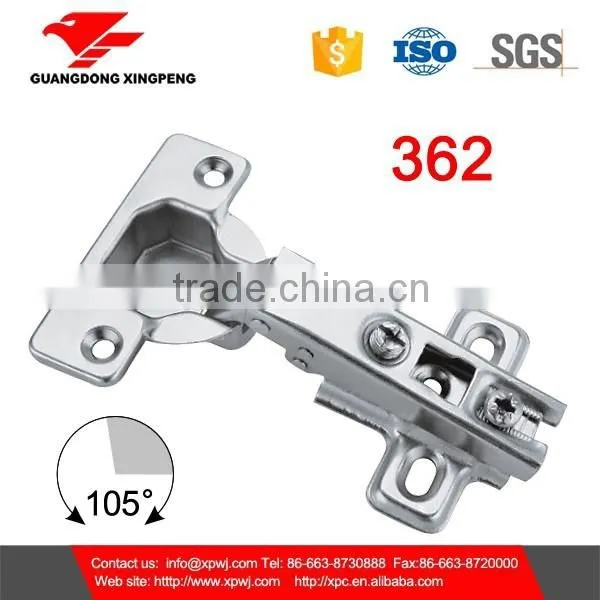

362 China Hardware Factory Past ISO9001:2008 System 11.5mm Depth New Mirror Cabinet Door Hinge
- 50000 Piece / Pieces per Month
- Shenzhen or Shantou
- Good Price High Quality Furniture Hardware Accessories SS Material Clip On Soft Close Cabinet Hinges
- stainless steel piano hinge
- stainless steel cast industrial hinges
- Rust Resistant And Durable Stainless Steel Hinges Marine Hinges 40*40/50*50/60*60
- Best selling products: household outdoor doors and windows, heavy hinges, OEM materials, stainless steel, iron, etc
- Best selling products: household outdoor doors and windows, heavy hinges, OEM materials, stainless steel, iron, etc
Product Details
Place of Origin: | Guangdong, China | Brand Name: | XP OR OEM | Model Number: | 362 mirror cabinet door hinge |
Product Description
Item no. | 362 china hardware factory mirror cabinet door hinge |
Material | Steel with nickel plated |
Opening angle | 105° |
Cup diameter | 35mm |
Depth | 9.5/11.5mm |
Hole pitch | 45/48mm |
Bases | base h=0, h=2 with two or four holes |
Screw | self-trapping screw and Euro screw available |
Three types | Full overlay, Half overlay, Inset |
Drill in door | 3-8mm |
Door thickness | 5mm thickness |
Cycle test | 50,000 times opening and closing guaranteed |
Other function | height and side adjustments |
Supply | one month can product 500000 peice of hinge |
Packing | 2pcs/polybag or about 200pcs/big polybag, then put in a carton |
Delivery time | 10-30 days after detail confirmation and deposit |
Website |
|
1. More than 60000 Squar meter workshop (5 factories.)
2. More than 120 pcs punching machines.
3. More than 64 sets rolling slide machines.
4. More than 4 sets of automatic ball bearing slide assembling machines.
5. More than 20 sets of automatic hinge assembling machines.
6. Salt Spray test machines 3 set
7. Hinge and slide testing machines each two sets.
8. More than 500 staff working for your products and your success.
9. More than 30 QC checking quality (A. when the mould finished. B. when the first 20pcs components punch out. C. before doing the plating. D before components assembling. E. Before the goods we pack into carton box. F. random checking the goods in stock.
10. Experience in making or design for customer logo and carton box. More than 12 years export experience all over the world.
..........
bisagra | bisagra oculta | bisagras cazoleta | bisagra cazoleta | bisagras invisibles
The concealed hinge is not visible externally. The standard opening angle is 95-110 °; special wide-angle hinges. For example television cabinets, can be opened to 165 degrees. Another important feature of this hinge is the adjustment: After installation, you can adjust the screws still hanging on wrong doors on the cabinet, and you don't need fret anymore. In addition, the locking mechanism can be set on a spring from gentle to vigorous (tension adjustment). | |
For kitchen furniture, living room and bedroom cabinets, use 35-mm cup hinges, for smaller furniture such as cupboards for 26-mm cup hinges. As the ideal DIY hinge called Aufschraubscharnier. It can be quickly attached to door and body, since no necessary with pot hole. However, it offers less adjustability than the concealed hinge. Maximum opening angle is 170 °. |
cerniera | cerniera anta | cerniera armadio | cerniera per porta | | zawias szafka

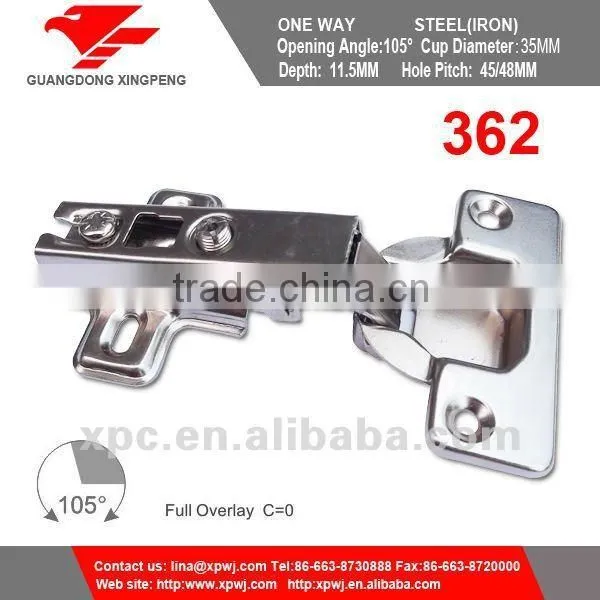

Full overlay Straight concealed hinge (resting)
Doors that are the body wall are secured with a straight concealed hinge,offset 0 mm.
| ||

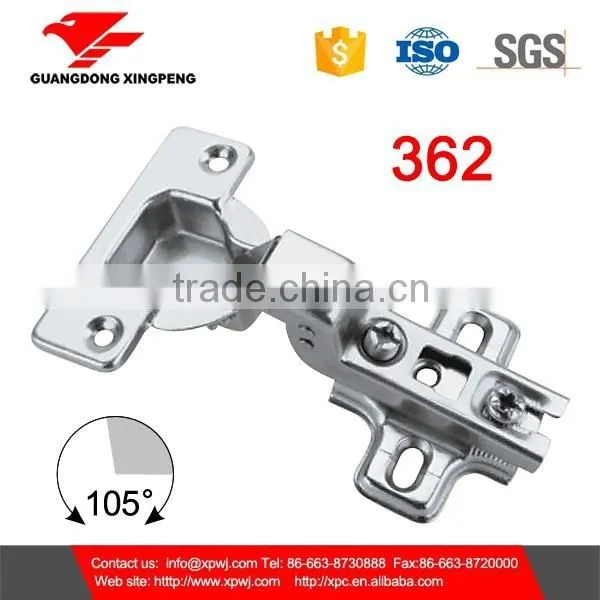

Half overlay Cranked concealed hinge (middle panel)
The hinge at the center wall fence is offset by 9 mm (bent) to allow the door to open with enough space.
| ||

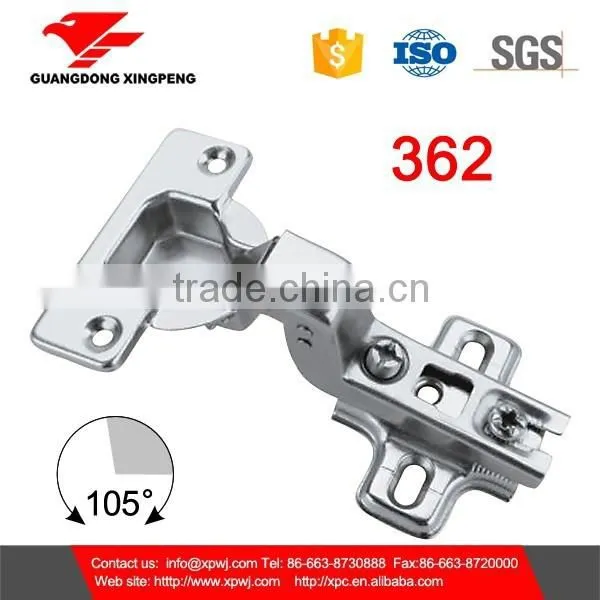

Cranked Concealed Hinge (Inset)
Inset: intermediate side wall and door need a few millimeters square. The bend (turn) is 17 mm
|
scharnier | scharnieren | tür scharnier | scharnier tür | scharniere |
Bases/ mounting plates:
Hinge adjustment:
Tension adjustment; support adjustment, height adjustment, depth adjustment
Quality Commitment:
1) we have passed ISO 9001:2000 international quality management system
2) About 17 years experience of product and management
3) Adward” The famous trademarks of guangdong province”
"Famous brand products of guangdong province”
"National industry standard drafting unit”.
Service guarantee:
(1) We can delivery any type of hinges that you need to you.
(2) Quickly deliver product notice
(3) Deliver goods to custome as soon as posilble
(4) Estabilsh Mutually beneficial and win-win relationship, provide effective product information
| XINGPENG STANDARD PRODUCTION PRECESSURE |
1 | Reply the quotation within 24 hours after receive the inquiry |
2 | New tooling cost and time replying within 48 hours |
3 | Free samples (normal products) within 48 hours |
4 | Within 12 hours send out the PI and PL Once we received the PO from customer |
5 | Within 24 hours make the carton box design for customer confirmation |
6 | Within 48 hours make the logo for customer confirmation(if needed) |
7 | Within 48 hours run the production notice to production department |
8 | When we making the components production will send photos for customer ref |
9 | When assembling the components will send photos for customer ref |
10 | When we packing the goods will send photos for customer ref |
11 | When the goods in warehouse will send photos for customer ref |
12 | One week before the goods ready will confirm shipping agent with customer |
13 | Once finished the loading will send customer loading photos |
14 | Send customer loading documents for customer to transfer the payment on time |
15 | After receive the Balance payment within 24 hours confirm the contact details to send out the documents in time for customer |
Certification | SGS,ISO9001:2000 |
Packing: | each in polybag,20pcs in a inner box; 200pcs/carton |
Delivery date: | around 30~45 days base on order quantity |
MOQ | 5000pcs(XINGPENG BRAND) |
Supply Ability | 100000pcs/month |
Payment Term: | T/T; L/C or others |
Samples offer | XingPeng will offer free samples base on reasonable quantity for quality inspection |
samples arrangement: | Samples wil be prepare to seding in about 3 working days DHL/Fedex: will be around 4~6 days to reach destination |
Please contact our After-sales department within 30 days after you received the cargo to give us some feedback.
Tel:0086-663-8730688 Time: 9:00a.m. ~6:00 p.m. (beijing)
Problems confimatoin |
Tiny problem: | Please provide the proof to photo or video to us. we will reply in two days time |
Serious problem: | |
A | WE WILL DISPATCH OUR QUALITY AND PROBLEM APPRAISERS TO MAKE A CONFIRMATION |
B | HAVE A NEGOTIATION OF THE COMPENSATION AND SIGN AGREEMENTS |
C | OUR AFTER SALES DEPARTMENT WILL PERFORM THE DUTIES AS THE AGREEMENTS |
Thanks for viewing and welcome to contact us! For more cabinet hinges, hydraulic hinges or drawer
slide, please view at
Or contact us by the following:
Company: Guangdong Xingpeng Industrial Co., Ltd.
Contact: Cruse Su
Tel: 86-0663-8730688
Fax: 86-0663-8720000
skype:gdxingpeng
whatsapp:13580170228
wechate:13580170228
QQ:2851279121
