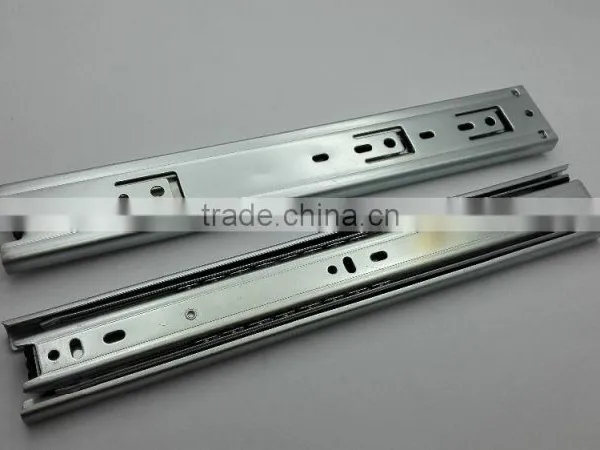

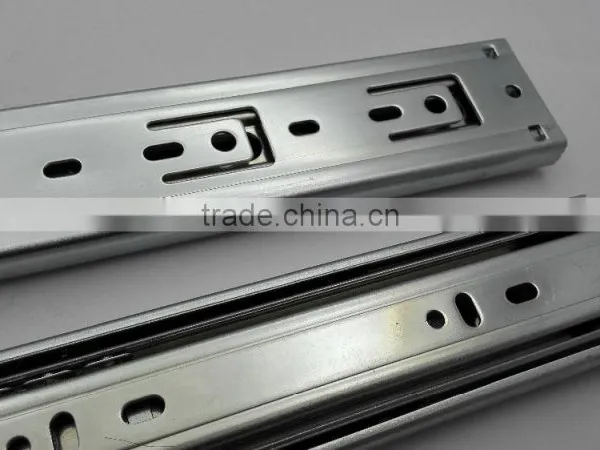

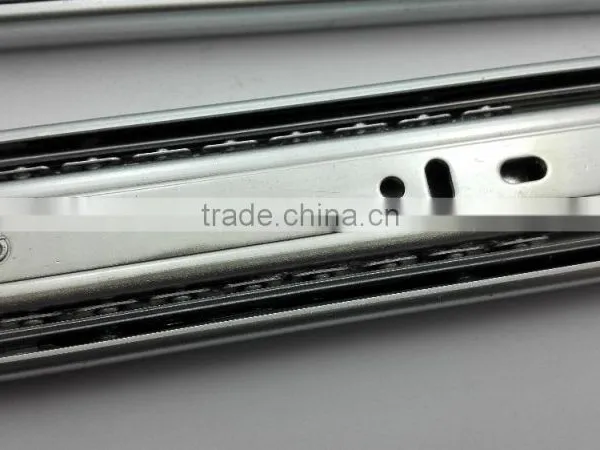

Help Center45MM Single Extension Furniture Hardware Ball Bearing Drawer Slide
Related Products
-
W30 Light Load Cold Rolled Steel Telescopic SlideUS$ 0.01 - 0.02MOQ: 10000 Sets -
Cabinet Hardware Funiture 3 Fold Stainless Steel Slide Drawer SlideUS$ 0.2 - 0.25MOQ: 1000 Sets
-
45mm Stainless Steel Soft Closing Drawer SlideUS$ 1.22 - 1.28MOQ: 1000 Sets
-
45MM Ball Bearing SlideUS$ 0.55 - 1.2MOQ: 50000 Sets
-
45MM Stainless Soft Closing SlideUS$ 1 - 4MOQ: 1000 Sets
| Specification Form: | |

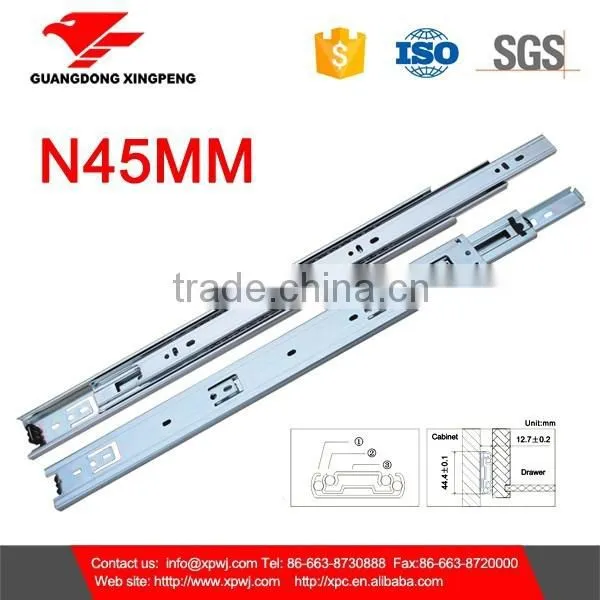

| ITEM | 45MM Single Extension with dot shape Ball Bearing Drawer Slide |
| Type | 3-fold, full extension, push to open drawer slide, rail |
| Material | cold-rolled steel plate; |
| Finish | blue or color zinc plated, black plated |
| Thickness | 1.2*1.2*1.2, 1.0*1.0*1.0, 1.2*1.2*1.5 mm |
| Size | width:44.7mm, Height:12.7mm |
| Length | 250-650mm |
| Load capacity | 40 kg/set |
| Function | fine adjutment of gap is possible when installing, quick sepatation mechanim, vibration prevention ball strip for absorbing impulsive force |
| Packing | 1pc/polybag, then 10-15sets per carton; or special requirement |
| Equipment | produced on high precision production line and testing equipment |
| Applications | Mid-duty movable cabinet,desk drawer,ordinaty furniture, or any applications requiring 40kgs load or less and requiring full extension. |
| Suitable | smooth an silence running,suitable for economic office furniture |
| Delivery Time | 30 days after detail confirmation and deposit |
| Webside | |

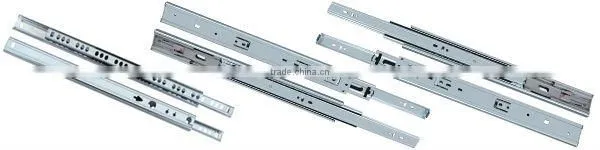

| 45MM Full Extension with 2 Balls a strip Ball bearing drawer slide |

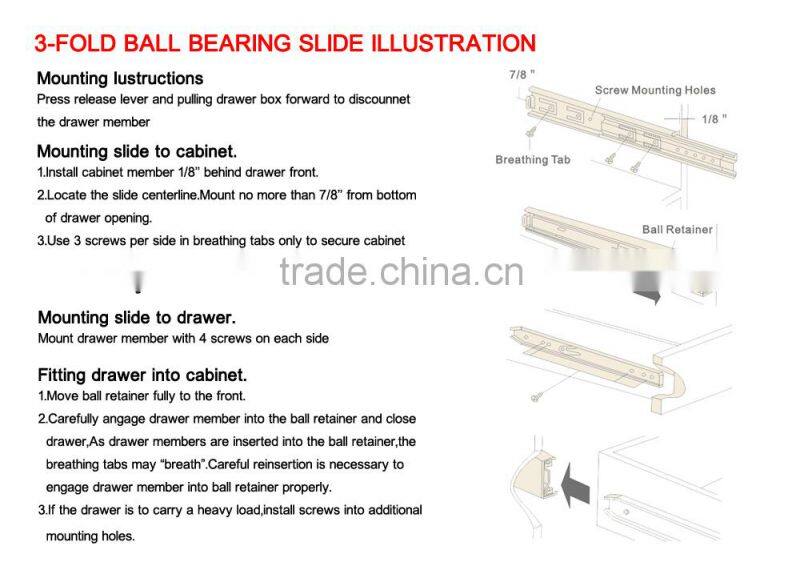

| 3-fold ball bearing slide Illustration: | ||||||||||||
| | ||||||||||||
size & thickness range | ||||||||||||

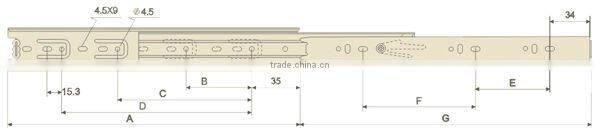

| SIZE | A | B | C | D | E | F | G | |
||||
| 10" | 250 | 64 | 160 | / | 160 | / | 247 | |||||
| 12" | 300 | 64 | 192 | / | 96 | 128 | 297 | |||||
| 14" | 350 | 64 | 192 | 256 | 96 | 160 | 347 | |||||
| 16" | 400 | 64 | 224 | 288 | 128 | 192 | 397 | |||||
| 18" | 450 | 64 | 288 | 320 | 160 | 192 | 447 | THICKNESS RANGE | ||||
| 20" | 500 | 64 | 320 | 384 | 192 | 224 | 497 | NO | N4510 | N4510A | N4512 | N4515 |
| 22" | 550 | 64 | 384 | 448 | 192 | 256 | 549 | 1 | 1.0mm | 1.0mm | 1.2mm | 1.2mm |
| 24" | 600 | 64 | 448 | 512 | 224 | 288 | 597 | 2 | 1.0mm | 1.0mm | 1.2mm | 1.2mm |
| 26" | 650 | 64 | 512 | 576 | 256 | 288 | 647 | 3 | 1.0mm | 1.2mm | 1.2mm |
1.5mm |
1. More than 60000 Squar meter workshop (5 factories.)
2. More than 120 pcs punching machines.
3. More than 64 sets rolling slide machines.
4. More than 4 sets of automatic ball bearing slide assembling machines.
5. More than 20 sets of automatic hinge assembling machines.
6. Salt Spray test machines 3 set
7. Hinge and slide testing machines each two sets.
8. More than 500 staff working for your products and your success.
9. More than 30 QC checking quality (A. when the mould finished. B. when the first 20pcs components punch out. C. before doing the plating. D before components assembling. E. Before the goods we pack into carton box. F. random checking the goods in stock.
10. Experience in making or design for customer logo and carton box. More than 12 years export experience all over the world.
| Quality Commitment: |
| 1) we have passed ISO 9001:2008 international quality management system |
| 2) About 17 years experience of product and management |
| 3) Adward "The famous trademarks of guangdong province" |
| "Famous brand products of guangdong province" |
| "National industry standard drafting unit" |
| Service guarantee: |
| 1) We can delivery any type of hinges that you need to you. |
| 2) Quickly deliver product notice |
| 3) Deliver goods to customer as soon as posilble |
| 4) Estabilsh Mutually beneficial and win-win relationship, provide effective product information |
| Recommended hot saler drawer slide(ball bearing slide): |
| 2 fold two way travel hydraulic drawer slide push open channel |
|
| Certification | SGS,ISO9001:2000 |
| Packing: | each in polybag,20pcs in a inner box; 200pcs/carton |
| Delivery date: | around 30~45 days base on order quantity |
| MOQ | 5000pcs(XINGPENG BRAND) |
| Supply Ability | 100000pcs/month |
| Payment Term: | T/T; L/C or others |
| Samples offer | XingPeng will offer free samples base on reasonable quantity for quality inspection |
| samples arrangement: |
Samples wil be prepare to seding in about 3 working days DHL/Fedex: will be around 4~6 days to reach destination |
Please contact our After-sales department within 30 days after you received the cargo to give us some feedback.
Tel:0086-663-8730688 Time: 9:00a.m. ~6:00 p.m. (beijing)
| Problems confimatoin |
| Tiny problem: | Please provide the proof to photo or video to us. we will reply in two days time |
| Serious problem: | |
| A | WE WILL DISPATCH OUR QUALITY AND PROBLEM APPRAISERS TO MAKE A CONFIRMATION |
| B | HAVE A NEGOTIATION OF THE COMPENSATION AND SIGN AGREEMENTS |
| C | OUR AFTER SALES DEPARTMENT WILL PERFORM THE DUTIES AS THE AGREEMENTS |
|
XINGPENG STANDARD PRODUCTION PRECESSURE |
1 |
Reply the quotation within 24 hours after receive the inquiry |
2 |
New tooling cost and time replying within 48 hours |
3 |
Free samples (normal products) within 48 hours |
4 |
Within 12 hours send out the PI and PL Once we received the PO from customer |
5 |
Within 24 hours make the carton box design for customer confirmation |
6 |
Within 48 hours make the logo for customer confirmation(if needed) |
7 |
Within 48 hours run the production notice to production department |
8 |
When we making the components production will send photos for customer ref |
9 |
When assembling the components will send photos for customer ref |
10 |
When we packing the goods will send photos for customer ref |
11 |
When the goods in warehouse will send photos for customer ref |
12 |
One week before the goods ready will confirm shipping agent with customer |
13 |
Once finished the loading will send customer loading photos |
14 |
Send customer loading documents for customer to transfer the payment on time |
15 |
After receive the Balance payment within 24 hours confirm the contact details to send out the documents in time for customer |
Company: Guangdong Xingpeng Industrial Co., Ltd.
Contact: Cruse Su
Tel: 86-0663-8730688
Fax: 86-0663-8720000
skype:gdxingpeng
whatsapp:13580170228
wechat:13580170228
QQ:2851279121
