Home > Products > function slide > 32mm 3-fold ball bearing slide , toole box drawer slide,mepla drawer slide

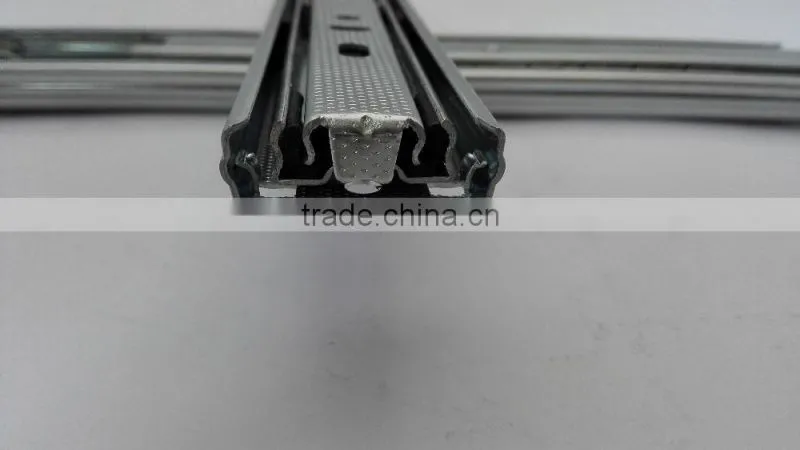

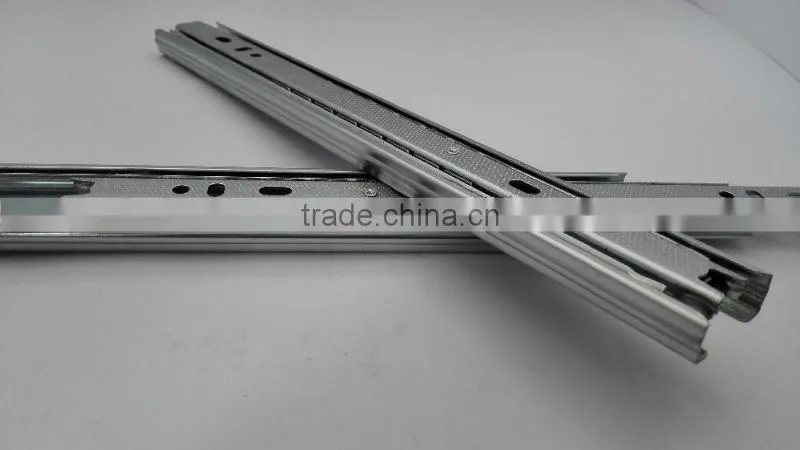

32mm 3-fold ball bearing slide , toole box drawer slide,mepla drawer slide
- 700000 Set / Sets per Month
- any named port in shenzhen or shantou
- Credit Card
Product Details
Place of Origin: | China | Brand Name: | XingPeng | Model Number: | 32mm ball bearing drawer slide |
Usage: | Furniture drawer box | Type: | Kitchen Cabinet Drawer Slide Channel | Material: | Cold-rolled steel plate, Cold Rolled Steel plate |
Product Description

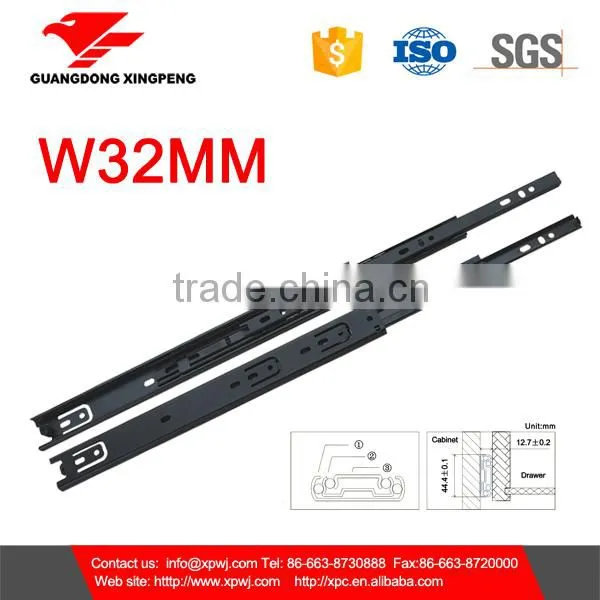

32 telescopic channel with 0.8*0.8*0.8mm thickness.
1.Characteristic:
1).full extension slide;
2).0.8*0.8*0.8mm thickness.
3).black color and zinc color
2.Specifications:
Type: | full extension slide |
Material: | cold- rolled steel plate |
Surface material: | electro-zinc plated and black zinc plated are available. |
Thickness: | 0.8*0.8*0.8mm thickness |
Size | 250 - 400mm |
Installation gap between rails | 11.5+-0.2mm |
Load capacity and times test: | 15kg, cycle test over 50,000 times. |
Application type: | office furniture, kitchen cabinets, or home drawers |
Produce equipment | produced on high precision production line and testing equipment |
Suitable: | smooth an silence running,suitable for economic office furniture; |
Webside: |
3.Inner packing:
1 set/polybag, or as per customer's requirements
Outer packing:
20 sets/ctn, or as per customer's requirements
The auto machine
FAQ
Q:XingPeng is trading company or factory?
A: xingpeng is factory and establish since 1997
Q:How to get there?(when you are in GuangZhou)
A: 1) take a bus in GuangYuan station; 5 hours by bus and we will pick you up in station
2) take train(high speed) will take about 3 hours arrive in chaoshan station. And we will pick you up in station.
3) take fly from baiyun air port to chanshan air port. This will takes about 1 hours. And we will pick you up in air port
Q:Why customer choose us?
A: 1) Service
2) Quanlity control
3) Reasonable price
4) Shipment delivery time
Q:XingPeng do the plating outside or has own plating line?
A:XingPeng own private plating line. And will do better in new plating city after Jun.30,2015
Q: XingPeng only doing export business or also domestic business?
A: Xingpeng Make both.
Q:Can you do my products or logo?
A:XINGPENG:Yes,we can do your brand and your design.
More information will be showing here or if you have any questions, please send us email!Thank you !!
We have sophisticated production equipment and the sophisticated production
technologies .
The high quality products of our company are evaluated approval by the certification of ISO9001:2000.
We have many advanced testing equipments including pull tester,etc to controproducts quality and meet customers’ demands. All our products with SGS,UL product certification approval.
1.Certification:SGS,ISO9001:2000
2.Delivery date: around 30~45 days base on order quantity
3.MOQ: 5000pcs(XINGPENG BRAND)
4.Supply Ability: 10000000pcs/month
5.Payment Term: T/T; L/C or others
6.Samples offer: XingPeng will offer free samples base on reasonable quantity for quality inspection
7.samples arrangement: Samples wil be prepare to seding in about 3 working days
8.DHL/Fedex: will be around 4~6 days to reach destination
Company: Guangdong Xingpeng Industrial Co., Ltd.
Contact: Lynn
Tel: 86-0663-8730688
Fax: 86-0663-8720000
skype:gdxingpeng-lynn
