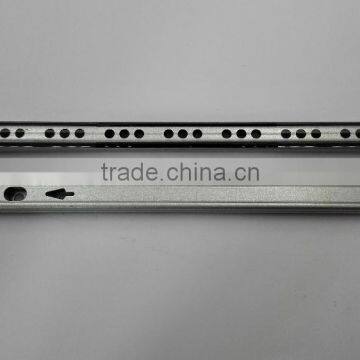

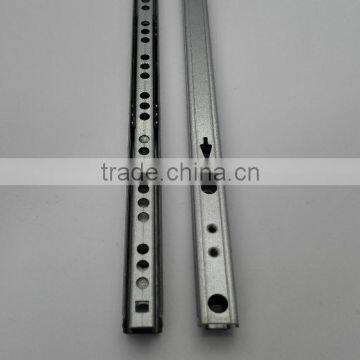

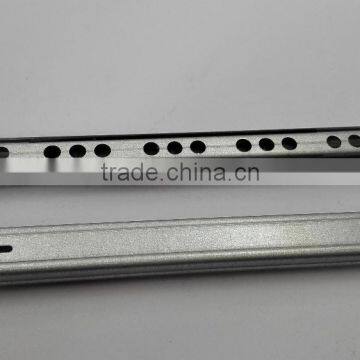

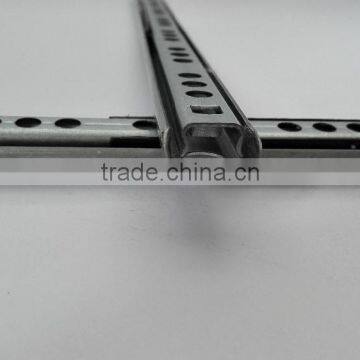

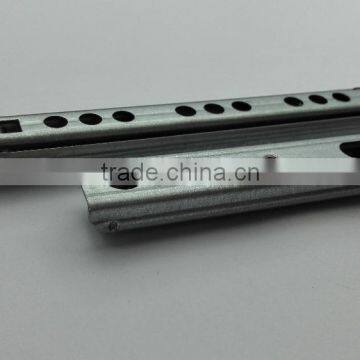

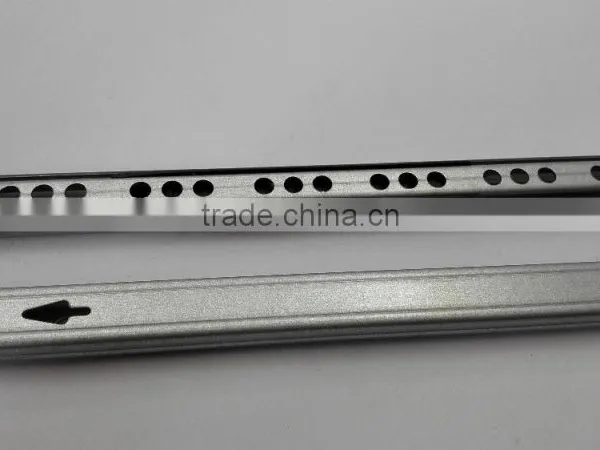

Help CenterCabinet Hardware 17mm 2 Fold Mini Telescopic Drawer Channel Quality Choice
Related Products
-
17mm Roller Bearing Slide Drawer Rail RunnerUS$ 0.2 - 0.4MOQ: 10000 Sets -
17mm Double Side Travel Mini Ball Bearing Drawer SlidesUS$ 0.22 - 0.25MOQ: 10000 Sets
-
17mm Furniture Cabinet Hardware Two Way Travel Ball Bearing Sliding TrackUS$ 0.01 - 0.02MOQ: 10000 Sets
-
27mm Width Two Fold Drawer Slide With Ball Bearing SlideUS$ 0.036 - 0.039MOQ: 5000 Sets
-
17mm Mini Ball Bearing SlidersUS$ 0.02 - 0.03MOQ: 10000 Sets
| Specification Form: | |
| ITEM | Cabinet Hardware 17mm 2 Fold Mini Telescopic Drawer Channel |
| Type | 2 fold, Inseparable, two ways travel |
| Material | cold- rolled steel plate; |
| Finish | blue or color zinc plated, black plated |
| Thickness | 0.8*0.8m,0.9*0.9mm, 1.0*1.0mm |
| Size | Width:17mm, Height:9.8mm |
| Length | 182-430mm |
| Installation | 9.8±0.2mm |
| Load capacity | 12 kg/set |
| Packing | 100set/ctn bulk packing or per customers requirement. |
| Equipment | produced on high precision production line and testing equipment |
| Applications | little-duty movable cabinet,desk drawer,ordinaty furniture, or any |
| requiring 12kgs load or less and requiring full extension. | |
| Suitable | smooth an silence running,suitable for economic office furniture |
| Delivery Time | 15-30 days after detail confirmation and deposit |
| Webside | |

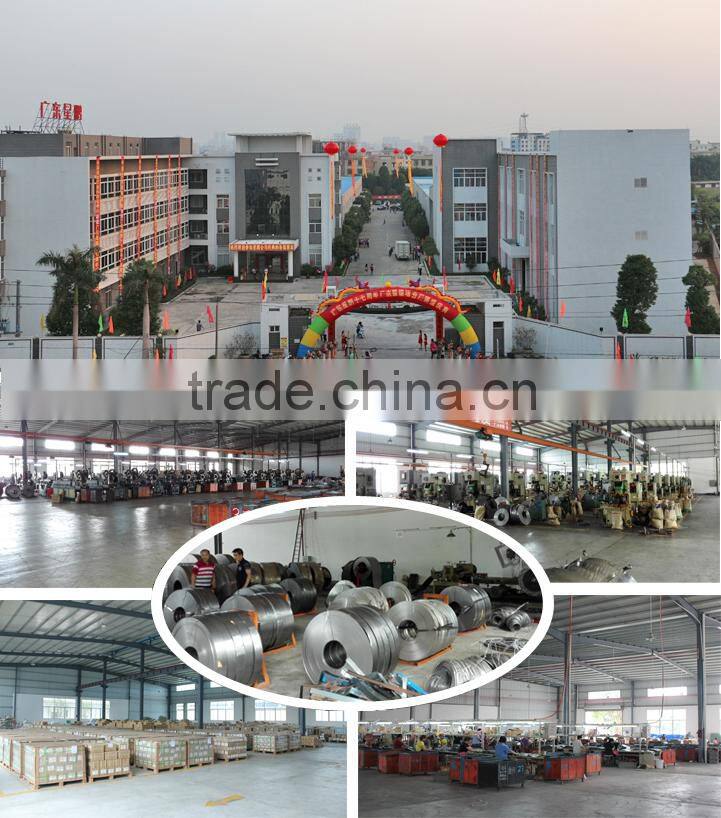

1. More than 60000 Squar meter workshop (5 factories.)
2. More than 120 pcs punching machines.
3. More than 64 sets rolling slide machines.
4. More than 4 sets of automatic ball bearing slide assembling machines.
5. More than 20 sets of automatic hinge assembling machines.
6. Salt Spray test machines 3 set
7. Hinge and slide testing machines each two sets.
8. More than 500 staff working for your products and your success.
9. More than 30 QC checking quality (A. when the mould finished. B. when the first 20pcs components punch out. C. before doing the plating. D before components assembling. E. Before the goods we pack into carton box. F. random checking the goods in stock.
10. Experience in making or design for customer logo and carton box. More than 12 years export experience all over the world.
..........

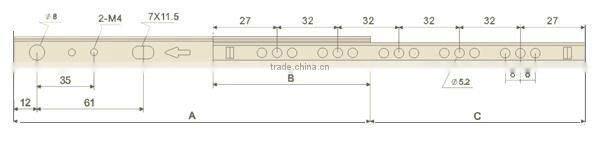

| SIZE | A | B | C | |
|||
| 17mm | 182 | 77 | 105 | ||||
| 17mm | 214 | 77 | 137 | ||||
| 17mm | 246 | 77 | 169 | ||||
| 17mm | 278 | 95 | 183 | ||||
| 17mm | 310 | 95 | 215 | THICKNEE RANGE | |||
| 17mm | 342 | 120 | 222 | NO | R1708 | R1709 | R1710 |
| 17mm | 374 | 120 | 254 | 1 | 0.8mm | 0.9mm | 1.0mm |
| 17mm | 430 | 120 | 300 | 2 | 0.8mm | 0.9mm | 1.0mm |
Quality Commitment:
1) we have passed ISO 9001:2008 international quality management system
2) About 17 years experience of product and management
3) Adward” The famous trademarks of guangdong province”
"Famous brand products of guangdong province”
"National industry standard drafting unit”.
Service guarantee:
(1) We can delivery any type of hinges that you need to you.
(2) Quickly deliver product notice
(3) Deliver goods to custome as soon as posilble
(4) Estabilsh Mutually beneficial and win-win relationship, provide effective product information
Recommended hot saler drawer slide(ball bearing slide):
| Certification | SGS,ISO9001:2000 |
| Packing: | each in polybag,20pcs in a inner box; 200pcs/carton |
| Delivery date: | around 30~45 days base on order quantity |
| MOQ | 5000pcs(XINGPENG BRAND) |
| Supply Ability | 100000pcs/month |
| Payment Term: | T/T; L/C or others |
| Samples offer | XingPeng will offer free samples base on reasonable quantity for quality inspection |
| samples arrangement: |
Samples wil be prepare to seding in about 3 working days DHL/Fedex: will be around 4~6 days to reach destination |
Please contact our After-sales department within 30 days after you received the cargo to give us some feedback.
Tel:0086-663-8730688 Time: 9:00a.m. ~6:00 p.m. (beijing)
| Problems confimatoin |
| Tiny problem: | Please provide the proof to photo or video to us. we will reply in two days time |
| Serious problem: | |
| A | WE WILL DISPATCH OUR QUALITY AND PROBLEM APPRAISERS TO MAKE A CONFIRMATION |
| B | HAVE A NEGOTIATION OF THE COMPENSATION AND SIGN AGREEMENTS |
| C | OUR AFTER SALES DEPARTMENT WILL PERFORM THE DUTIES AS THE AGREEMENTS |
|
XINGPENG STANDARD PRODUCTION PRECESSURE |
1 |
Reply the quotation within 24 hours after receive the inquiry |
2 |
New tooling cost and time replying within 48 hours |
3 |
Free samples (normal products) within 48 hours |
4 |
Within 12 hours send out the PI and PL Once we received the PO from customer |
5 |
Within 24 hours make the carton box design for customer confirmation |
6 |
Within 48 hours make the logo for customer confirmation(if needed) |
7 |
Within 48 hours run the production notice to production department |
8 |
When we making the components production will send photos for customer ref |
9 |
When assembling the components will send photos for customer ref |
10 |
When we packing the goods will send photos for customer ref |
11 |
When the goods in warehouse will send photos for customer ref |
12 |
One week before the goods ready will confirm shipping agent with customer |
13 |
Once finished the loading will send customer loading photos |
14 |
Send customer loading documents for customer to transfer the payment on time |
15 |
After receive the Balance payment within 24 hours confirm the contact details to send out the documents in time for customer |
