INTCERA was founded in 2001 with the registered capital over US$10 million, which is a national high tech enterprise and a leading manufacturer with self-developed ceramic ferrule production technology(CIM), INTCERA is NO.4 IN THE WORLD behind Adamand, TOTO, and KYOCERA(JAPAN) who owned this technology .
Ceramic ferrule is our leading products, and it shares 30% market sales of ferrule in domestic with 2 Production base, all the equipment are imported from Switzerland and Japan. for more information,refer to ours official website:

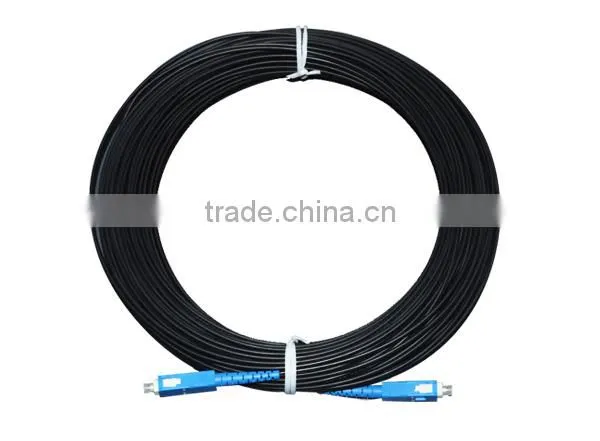

SC type patch cord
Application
-Telecommunication System
-Testing Equipment
-CATV System
-Long-haul Telecommunication
-LAN System
Features
-PC, UPC, APC polishing available
-High Return Loss
-Low Insertion Loss
-High Reliability and stability
-Available for single mode /multimode and simplex/duplex
-0.9mm, 2.0mm, 3.0mm diameter cable available
Technical Parameter
Compliant with: IEC-61754
Compliant with: Telcordia-GR-326-CORE
Complaint with: RoHS
Specification
Fiber Mode |
SM |
MM |
||||
Connector Type |
FC,SC |
ST,LC |
FC,SC,ST,LC |
|||
Diameter |
Φ0.9,Φ2.0,Φ3.0 |
|||||
End-face Finishing |
PC |
UPC |
APC |
PC |
UPC |
APC |
Insertion Loss(dB) |
≤0.20 |
≤0.30 |
≤0.20 |
≤0.30 |
||
Return Loss(dB) |
≥45 |
≥50 |
≥60 |
≥45 |
≥50 |
≥35 |
Exchangeability(dB) |
≤0.20 |
|||||
Repeatability(dB) |
≤0.10 |
|||||
Operating Temperature(℃) |
—40~+75 |
|||||
Storage Temperature(℃) |
—40~+85 |
|||||
Operating Wavelength(nm) |
1310, 1550 |
|||||
