Help Center18mm Film Face Plywood 1220x2440 Cnc Engraving Router Machine
Related Products
-
Screen Sculpture CNC Router (Plasma Cutting Machine)NegotiableMOQ: 1 Set -
Car/acrylic/mould Top Class Metal Engraving Cnc Router With CEUS$ 2,999 - 4,231MOQ: 1 Set
-
Shoe Material/sole/tread CNC Router With RotaryUS$ 1,000 - 3,000MOQ: 1 Set
-
Rubber Patch Mould USAldmsapp Pattern/metal Engraving Cnc Router(QL-1218)US$ 2,999 - 4,231MOQ: 1 Set
-
Timekeeper Part Process Light CNC Tooling Mini Cnc Router MachineUS$ 1,000 - 2,000MOQ: 1 Set
Specifications
cnc engraving router machineMode of saving the intermittence
German ball screw and imported guide
dustproof structure
CE

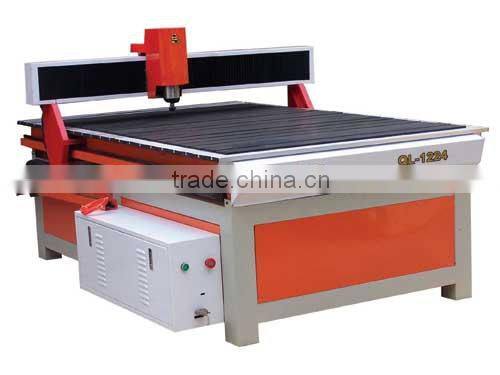

cnc engraving router machine QL-1224
Characteristics:
• Matching European brand names ball screw, and linear guide high quality accessories.
• High-power, high-performance drives and motors.
• popular X-axis dust structure.
• Software compatibility strong: If renowned Type3/artcarm/castmate/proe/Corelerow / Wentai, and other CAD / CAM software.
Applicable industry
Billboard industry: characters cutting, plate production, LED / neon channel, literal-hole cut, blister Lightbox mold production.
Machine Model |
QL-1224 |
X.Y working area |
1200*2400mm |
Z working area |
>100mm |
Table |
1300*2680mm |
Max. Speed |
6m-7m/min |
Max. working speed |
3m-3.5m/min |
Max. feeding height |
110mm |
Working delicacy |
0.005mm |
Repositioning accuracy |
0.05mm |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power (spindle is not included) |
550w |
Working voltage |
AC220V/50Hz |
Spindle power |
1.5kw |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Steper |
Send Inquiry to This Supplier
