Specifications

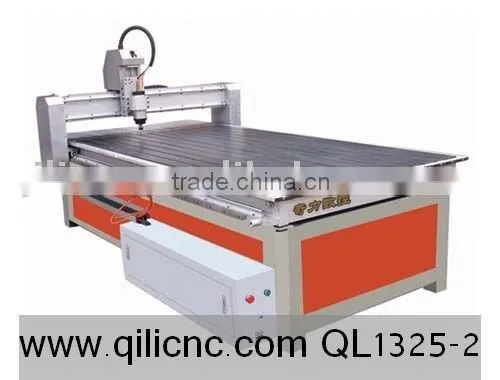

Wood Working CNC Carving MachineMax. speed 30-40m/min
5.5 KW Vacuum Pump
Large Leadshine driver
X Y Z all with square guide
Product Features:
Axis under the control of software, high automation
High speed and efficiency, max. speed over 14m/m
High power spindle and good rigidity
Wood CNC Machinery is with two motors and unique two rack driving, No deformation and vibration after a long0-time work at high speed
Automatic Lubrication.
Standard Configurations |
Options |
Square Tube Lathe Bed, absorption table-board |
2.2KW Dust Collector |
X Y with racks, all with square guides |
|
Axis Y with two motors |
|
DSP System |
|
3.0KW Spindle and Transducer |
|
Large Leadshine driver |
|
5.5 KW High-power Vacuum Pump |
|
Auto Lubrication System |
|
Max. speed 30-40m/min |
|
Technical Data | |
Working Area |
1300mm*2500mm*200mm |
Table Size |
1480mm*3000mm |
Max. Speed |
>20m/min |
Processor |
DSP/ Speed 100MHZ |
Interface |
USB |
Command Code |
G Code*.u00*.mmg*.plt |
Working Software |
DSP |
Power (not including spindle) |
1840w |
Working Voltage |
AC380V/50HZ |
Spindle Power |
3.0kw |
Spindle Running Speed |
0-24000rpm |
Motor |
Stepper |
