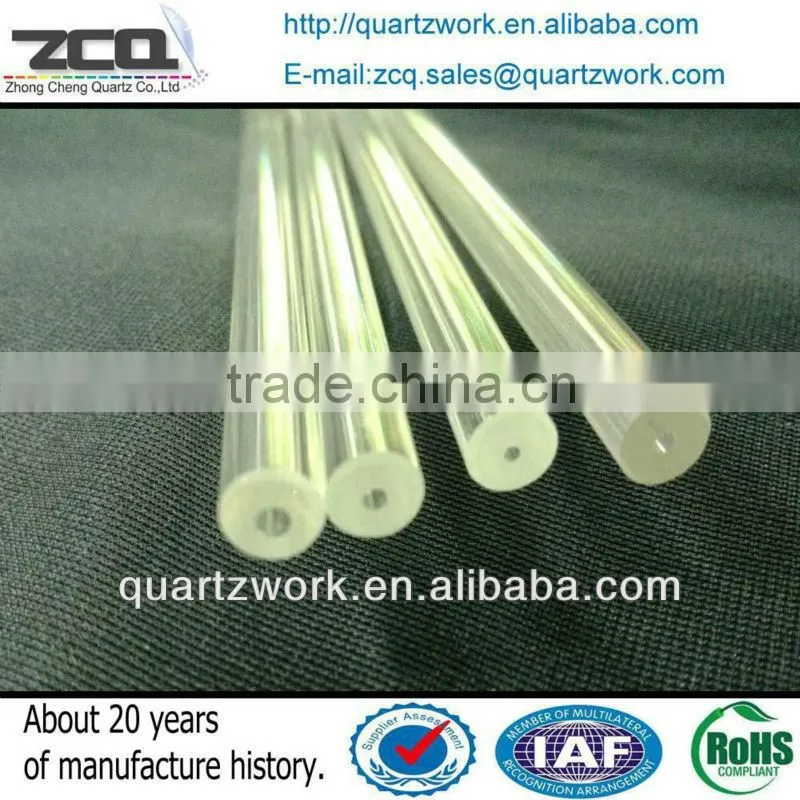

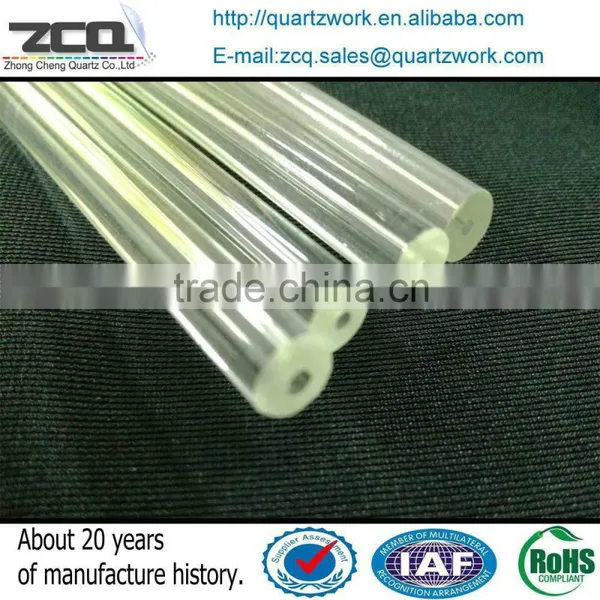

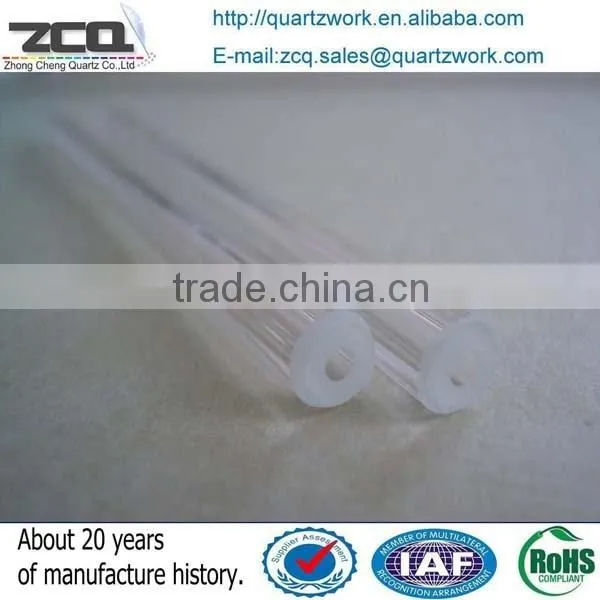

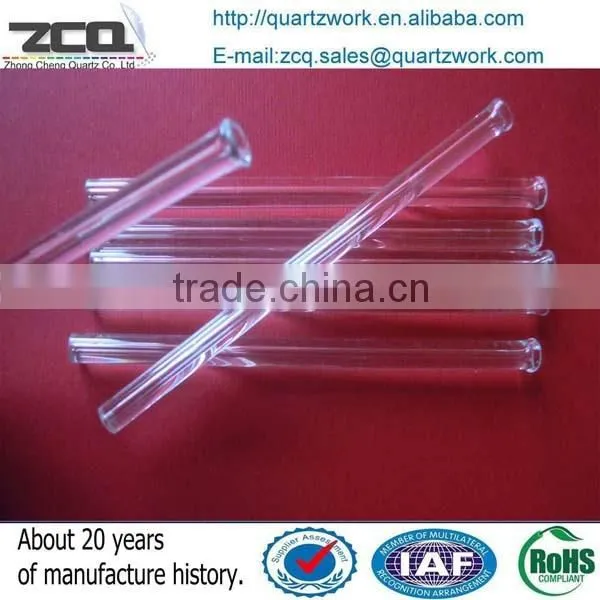

Help CenterHigh Quality Cheap Extruded Rubber Thread Borosilicate Glass Tube/Tubing Price
Related Products
-
Transparent Cylindrical Borosilcate Glass Tubing Medium SzieUS$ 0.1 - 1,000MOQ: 1 Piece -
Rubber Industry Borosilicate Capillary Glass Tube for Cable and Wire Manufacturing Quality ChoiceUS$ 0.1 - 1,000MOQ: 1 Piece
-
Pyrex Glass Clear Pipes/tubes for SaleUS$ 0.01 - 1,000MOQ: 10 Pieces
-
Mini Extruded Rubber Thread Borosilicate Glass Tube/Test TubeUS$ 0.1 - 1,000MOQ: 1 Piece
-
10mm Thick Borosilicate/pyrex Glass PlatesUS$ 1 - 1,000MOQ: 1 Piece
Product Introductions
Borosilicate glass has a very good homogeneity and very high transparency in the UV/visible/near IR range. The glass has low thermal expansion and high thermal resistance that make it particularly suitable for areas of application where high temperatures and thermal gradients are involved.
Thermal Properties
Borosilicate glass has one of the lowest coefficients of thermal expansion for conventional glass materials,which provides it with good thermal shock resistance.With a maximum long term use temperature of 450°C, borosilicate glass is a good choice for applications requiring good thermal stability.
Material |
Basic Dimension |
|
Borosilicate Tube |
OD:6.5mm (+/-0.1mm) ID:1.45mm (+/-0.01mm) Length:100mm (+/-1mm) |
|
Borosilicate Tube |
OD:6.5mm (+/-0.1mm) ID:1.65mm (+/-0.01mm) Length:100mm (+/-1mm) |
|
Borosilicate Tube |
OD:6.5mm (+/-0.1mm) ID:1.8mm (+/-0.01mm) Length:100mm (+/-1mm)
|
| Coefficient of Thermal Expansion | (α 20 - 300° C ) | 3.25 x 10-6/K |
| Thermal Conductivity(λ) |
10°C 50°C 90°C 190° C |
1.11 W/m K 1.17 W/m K 1.22 W/m K 1.31 W/m K |
| Heat Capacity(Cp) | 20 - 100°C | 0.83 kJ/kg K |
| Maximum Operating Temperature |
Short-term Long-term |
500°C 450°C |
| Resistance to Thermal Gradients |
< 1 hour 1 - 100 hours > 100 hours |
110K 90K 80K |
| Resistance to Thermal Shock |
< 4 mm 4-6 mm 6-15 mm > 15 mm |
175K 160K 150K 140K |
Application
Borosilicate glass has a wide variety of uses ranging from cookware to lab equipment as well as a component of high quality products such as implantable medical devices and devices used in space exploration
Lighting
Many high-quality flashlights use borosilicate glass for the lens. This allows for a higher percentage of light transmittance through the lens compared to plastics and lower-quality glass.
Several types of high-intensity discharge (HID) lamps, such as mercury vapor and metal halide lamps, use borosilicate glass as the outer envelope material.
New lampworking techniques led to artistic applications such as contemporary glass marbles. Borosilicate is commonly used in the glassblowing form of lampworking and the artists create a range of products ranging from jewelry, kitchenware, to sculpture as well as for artistic glass tobacco pipes.
Lighting manufacturers use borosilicate glass in their refractors.
Organic light emitting diode (for display and lighting purposes) also uses borosilicate glass (BK7). The thicknesses of the BK7 glass substrates are usually less than 1 millimeter for the OLED fabrication. Due to its optical and mechanical characteristics in relation with cost, BK7 is a common substrate in OLEDs. However, depending on the application, sodalime glass substrates of similar thicknesses are also used in OLED fabrication.
Optics
Most astronomical reflecting telescope glass mirror components are made of borosilicate glass because of its low coefficient of expansion with heat. This makes very precise optical surfaces possible that change very little with temperature, and matched glass mirror components that "track" across temperature changes and retain the optical system's characteristics.
TRY ZCQ GLASS PRODUCTS FOR BETTER TECHNOLOGY AND LIFE,PLEASE!
package: protection paper, green air bag, air film, carton ,
safe and ecnomic even for freight collect as well.
Shipping methods and charges:
China post(15-25days)
Epacket to USA (10-15days)
EMS(7-10days)
Fedex(5-7days)
DHL(5-7days)
Actual shipping charge will be calculated upon product weight.
1.Based in Beijing, heart of China, ZCQ is a technology and quality oriented manufaturer with 20 years history.
2.With senior engineer supervise, we are glad to advise customers on pressure, temperature etc application and engineering questions.
3.ZCQ accepts second production in case some products don’t meet requirements.
4.1 hour from international meeting center of Beijing, ZCQ invites guests to visit our company after long day meeting and get relaxed in nature. Our company is also sitted in arms of mountains and river.
