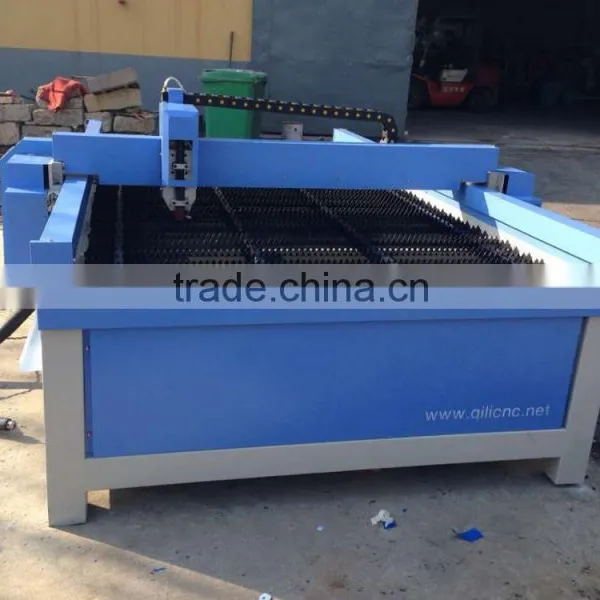

stainless metal cutting high precision cnc plasma cutting machine 1325
the factors you are interested in:
1. our brand is:QL,if you need to check,welcome to our company and visit our factory.
2.we have specialists on the CNC Router Machine,laser machine and plasam cutting machine.
3.based on the strong sales network ans stable quality, for the best selling products in all over the world.
4.we have the technical sales managers who can speak fluent English,answer you questions in 24 hours.
Feature of Plasma cutting machine:
1. With very high precision for cutting SS MS and other metals.
2. Small cutting gap, with no residua
3. Light design of the beam promises high cutting speed and accuracy.
4. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)
5.Start control system and Start THC device
Components of plasma cutting machine
A : Main machine assembly including: rack, beam, moving parts, pipe parts, transverse slide line rack, vertical and transverse transmission parts and so on.
B : Rail assembly including : 6 pairs of main rail and assistant rail and accessories, 2 meters per pair.
C :Plamsa torch or flame torch
D : Electric control assembly including : electric cabinet, longitudinal and transverse motors and accessories.
E: Gas assembly including : general pipe for three way of gas supplyelectromagnetism valvepressure gaugetemper preventing equipment and so on.
F: Height adjustment: Torch Height Controllor (can cut different height material ).
Technical specifications :
Model |
QL-1325 |
optional |
Working area (X*Y*Z,mm) |
1300*2500*100 |
customization is available
|
Machine structure |
Channel steel lathe bed,serrated table |
Square tube lathe bed ,vacuum system |
Working holding |
By clamps |
by vacuum
|
Overall dimension |
3150*2200*1200/3600*2200*1200 |
|
Precision(mm) |
0.07
|
|
Position accuracy(mm) |
0.02
|
|
Repeatability(mm) |
0.02
|
|
Lding speed (mm/min) |
15,000
|
|
Working speed(mm/min) |
10,000
|
|
Power source |
HUAYUAN 60A |
HUAYUAN100A/Hypertherm45A/65A/85A
|
Largest cutting depth |
5mm
|
25mmr |
Drive system |
Stepper motors |
Servo motors |
Working voltage |
AC380V±30V,50HZ |
|
Command code |
G Code(*.nc,*.mmg,*.u00,etc),*.eng
|
|
Control system |
DSP for plasma |
System with THC |
Compatible software |
Window98/XP/7 G code |
|

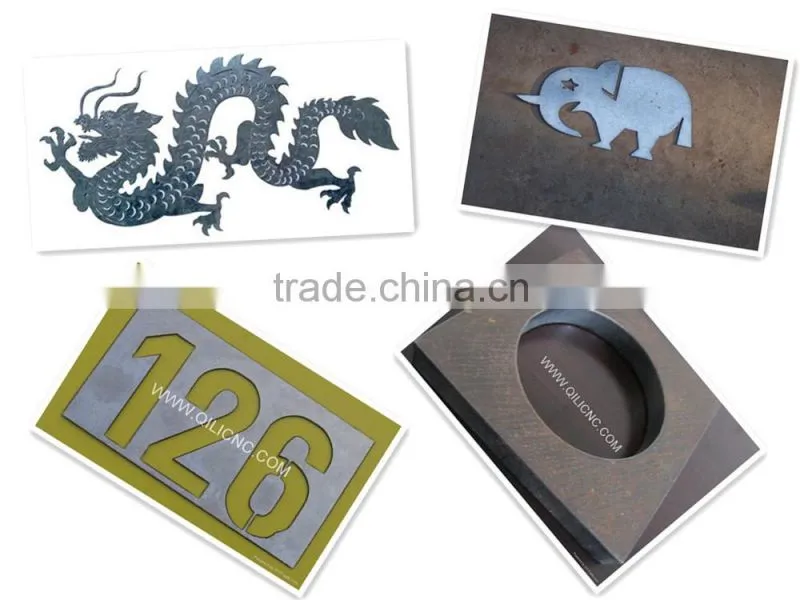

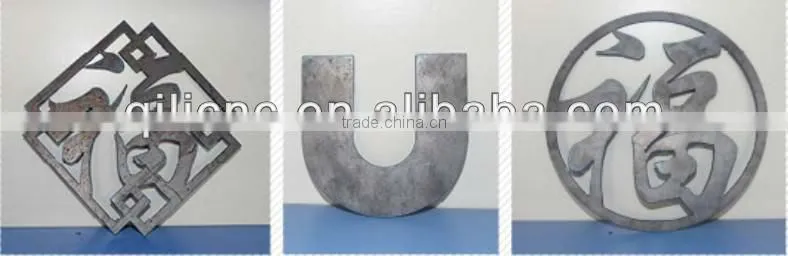

Samples made by the plasma cutting machine:
certificate:
our colleagues doing for fun:
exhibition photo:
welcome your visiting our factory
looking for agents all over the world
