Home > Products > Metal CNC Router > mini metal cnc router engraving machine/cnc metal cutting machine for sale

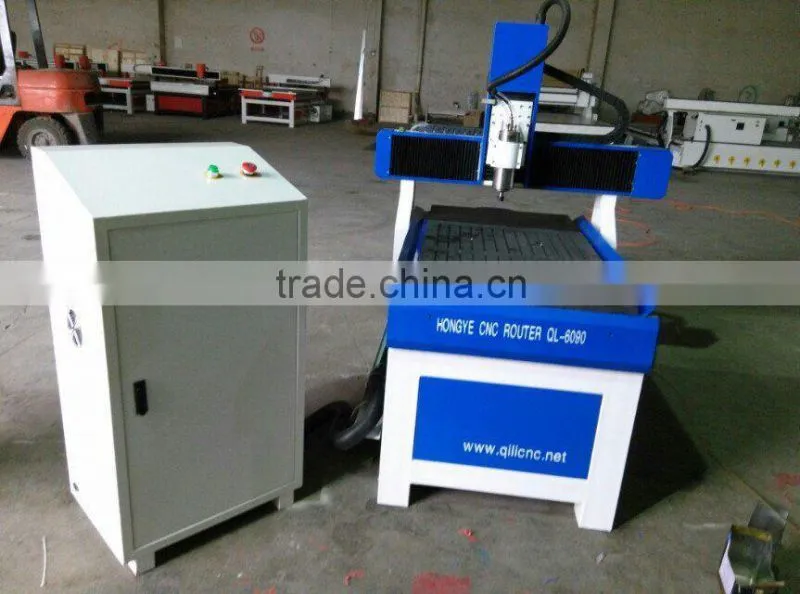

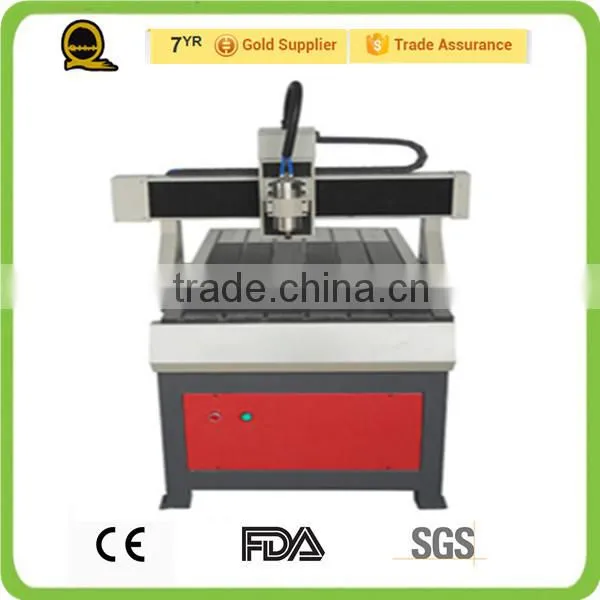

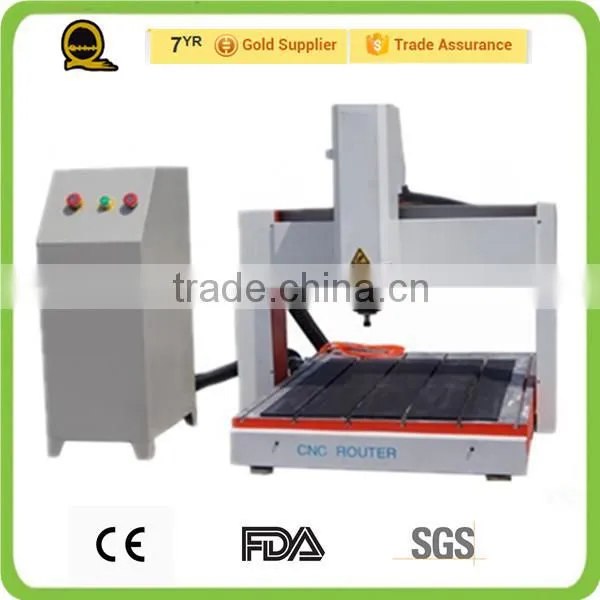

mini metal cnc router engraving machine/cnc metal cutting machine for sale
- 250 Set / Sets per Month
- qingdao shanghai tianjin port
- T/T Credit Card
-
Pneumatic flange dot pin engraving machine dot peen metal engraving machinery
-
Pneumatic metal stainless steel flange dot pin engraving machine dot peen metal engraving machinery
-
VIN number chassis code serial number dot peen marking metal engraving machinery
-
Portable handheld dot peen marking machine vin number engraving machinery
-
Pneumatic dot peen marking machine metal stainless steel flange dot pin engraving machine
-
Pneumatic dot peen marking machine metal stainless steel dot pin engraving machine
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | QILI |
| Model Number: | QL-6090 | Rated Power: | 3.0kw | Engraving Speed: | 6000mm/min |
| Main Axle Rotational Speed: | 24000rpm | Feeding Height: | 100mm | Application: | metal cutting |
| Dimensions: | 0.86*0.86*1.42 | Weight: | 100kg | Certification: | CE SGS |
| Warranty: | one year /12monthese | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
mini metal cnc router engraving machine/cnc metal cutting machine for sale
Equipment Features:
1.linear guide rails and German automatic anti-backlash double-nut screws ensure the high precision and perfect effect of metal engraving.
2.High speed drive faster the speed by nearly two meters.
3.Supporting with the international standard G code command is compatible with different engraving software at home and abroad.
4.Breakpoint memory and save method of 9processed points at most ensures the continuity and convenience of work.
5.Axis X adopts the popular dustproof,which ensures the good performance for long time.
After-sale service
1) Free training ;
2) 12 months for machine,long life spare parts ;
3) 24 hours technical support ;
4) Door-to-door service supported ;
5) English software, user manual and operation CD router cnc ;
Technical specifications :
Technical specification:
Model | QL-6090 | Optional
|
Working area (X*Y*Z,mm) | 600*900*100 | customization is available
|
Machine structure | All cast aluminum |
|
Working holding | By clamps |
|
Overall dimension | 1300*950*1150 |
|
Precision(mm) | 0.05 |
|
Position accuracy(mm) | 0.02
|
|
Repeatability(mm) | 0.02
|
|
Lding speed (mm/min) | 5000 |
|
Working speed(mm/min) | 3000 |
|
Spindle | 1.5kw,water-coolin(0-24000rpm) | air-cooling(0-18000rpm),multi-head,specified power
|
Available tools(mm) | φ3.175~φ6
| Automatic tool changer |
Drive system | Stepper motor | Servo motor |
Working voltage | AC220V±30V,50HZ |
|
Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng
|
|
Control system | NcStudio syetem |
|
Compatible software | Window98/XP/7 G code |
|
Applicable industry and material:
Application:
Aluminum-plastic panel,light guide plate,copper,aluminum plate,stainless steel and other materials with no burr and no blade-stick while engraving or cutting in water.
spare parts of wood cnc router:

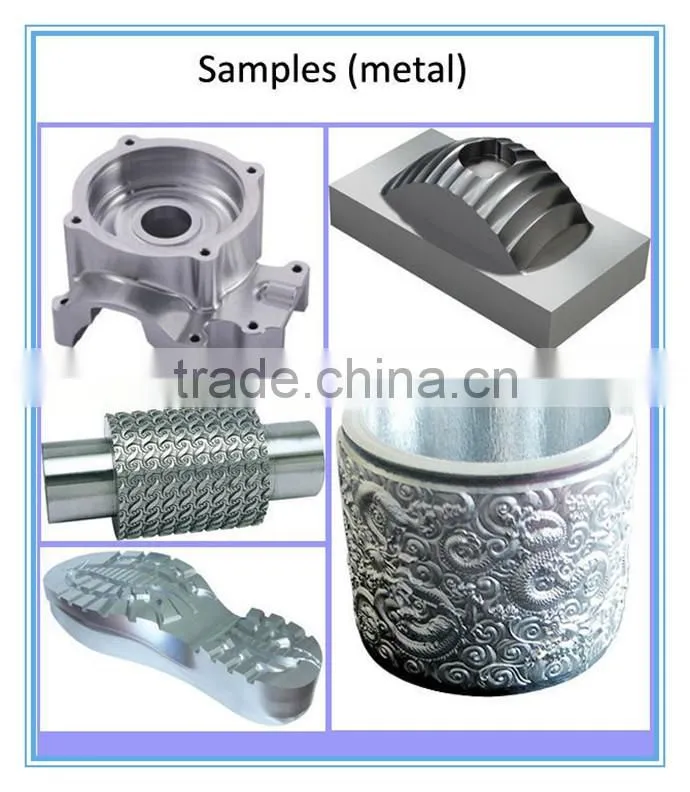

samples made by the wood cnc router:
certificate :
attending fair photo:
looking for agents all over the world
welcome your inquiry on our woodworking router machine
Contact Us
- Jinan Hongye CNC Machine Co., Ltd.
- Contact nameVicky Yang
- Phone86-531-88611918
- AddressNo. 168, Caiyuan Industrial Park, Huashan Town, Licheng Dist.
-
