Specifications
Solar energy tube1.type:47/58-1500/1600/1800/2000/2100
2.material:high borosilicate glass
3.price: FOB USD 2.5-4.0 piece

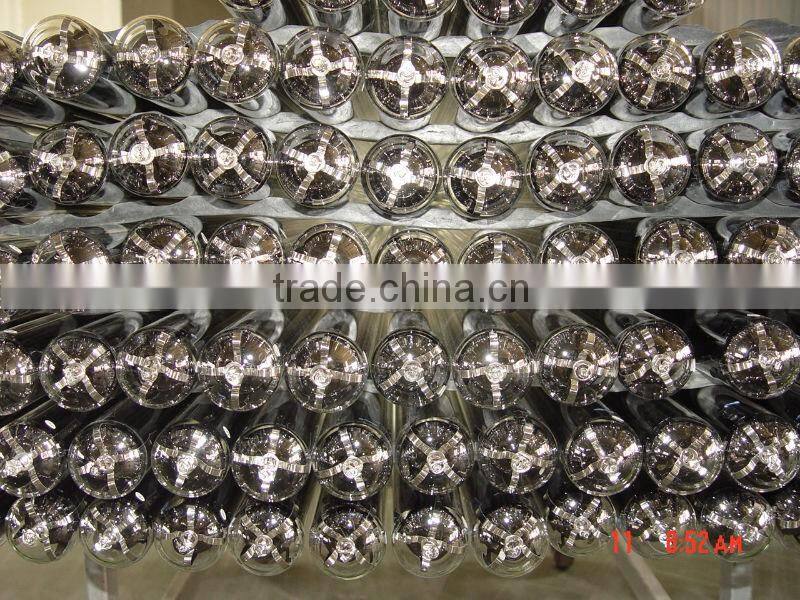

Three target solar energy tube for solar water heater or solar collector

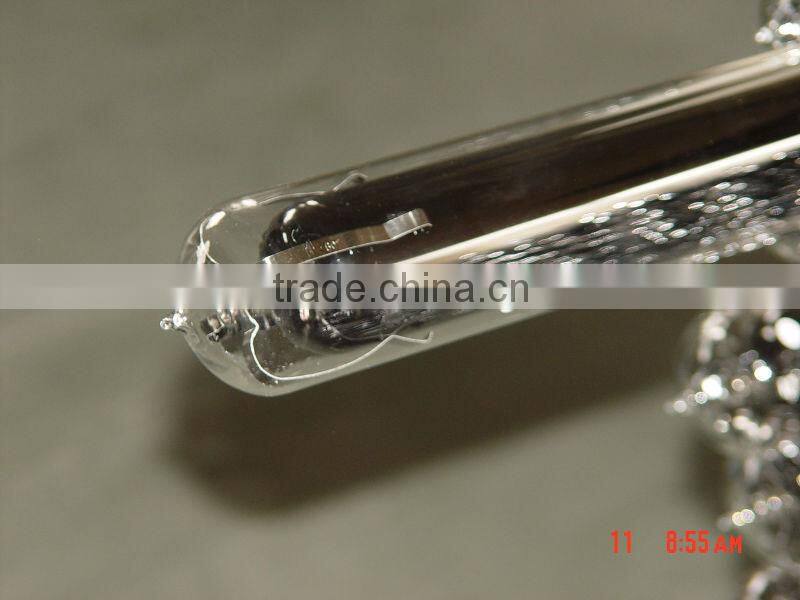

This solar energy tube is made up of two borosilicate glass 3.3 which can withstand high pressure and the rasistance of the steel ball from the height of 450mm.
The principal of insulation is just like the glass lined thermos flask,the vacuum plays an important role of insulator.That is because once the vacuum tube absorb radiation from sun and convert it into heat,the vacuum helps not to lose heat.The insulation character is so good that while the inside of this tube maybe 300°c, the outer tube is cold to touch,this means such tube can perform well even in very cold weather.
Raw material |
high borosilicate glass 3.3 |
Glass thickness |
1.6mm |
Outer tube length |
1500mm,1600mm,1800mm,2000mm,2100mm |
Outer tube diameter |
47mm±0.7mm, 58mm±0.7mm |
Inner tube diameter |
37mm±0.7mm, 47mm±0.7mm |
Coating material |
SS-ALNx/Cu |
Absorptance |
0.90~0.95 (AM1.5) |
Emittance |
0.04-0.06(80°C±5°C） |
Vacuum degree |
≤5.0×10³ (Pa) |
Stagnation temperature |
260°C~300°C |
Average heat loss coefficient |
0.4~0.6W/(m².°C） |
Hail resistance |
≤25mm |
|
Solar irradiation for obtaining a preset water temperature rise in tube under stagnation |
3.7~4.2MJ/m²(Φ58mm) 2.9~3.2MJ/m²(Φ47mm) |
