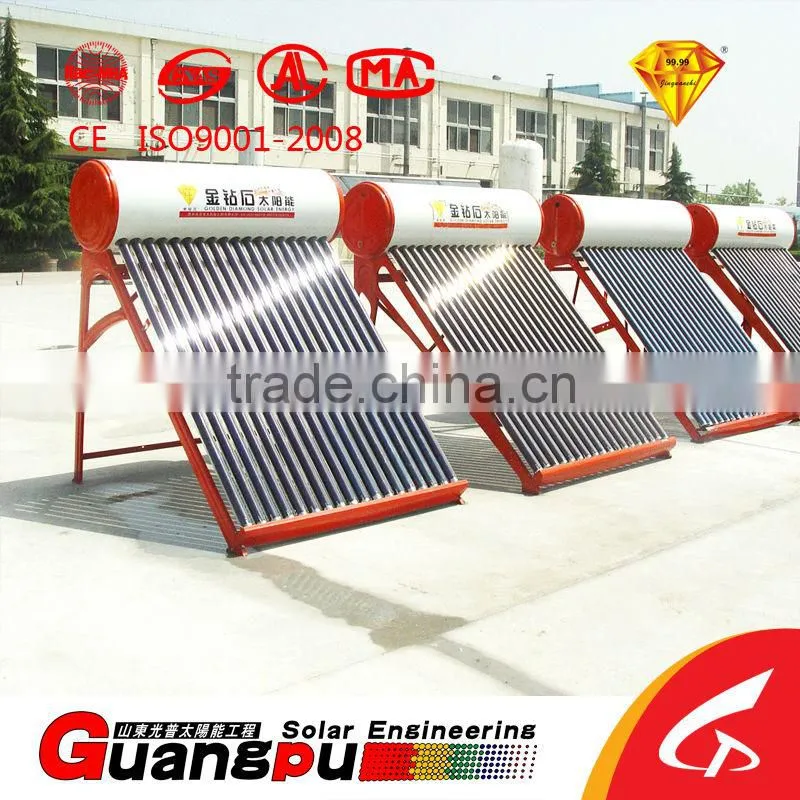

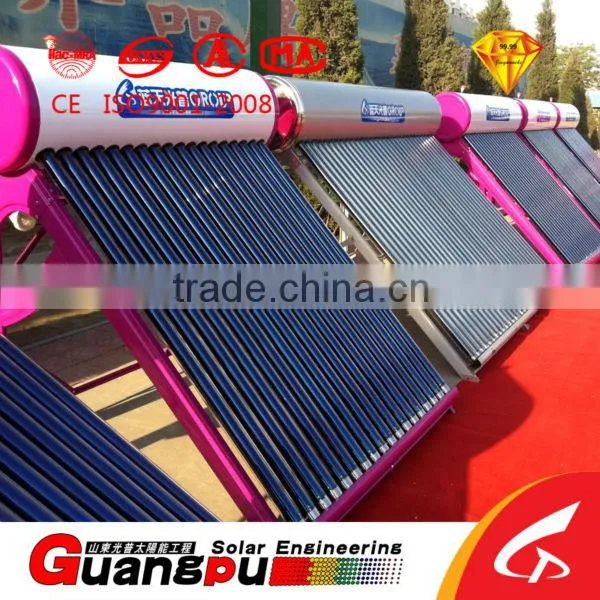

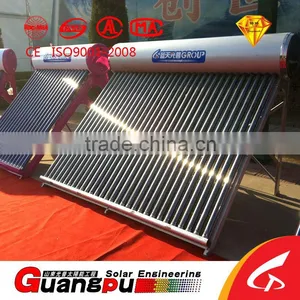

Non Pressurized Heat Pipe Solar Water Heater

Name: Non Pressurized Heat Pipe Solar Water Heater
Brand: Guangpu or OEM
SKU: 110494785
Availability: InStock

US$ 160 - 300 MOQ: 10 Pieces

Key Specifications

Type:

Evacuated Tube

Pressure:

Unpressurized

Circulation Type:

Direct / Open Loop (Active)

Shandong Guangpu Solar Energy Project Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Evacuated Tube

Pressure Unpressurized

Circulation Type Direct / Open Loop (Active)

Heating System Thermosyphon (Passive)

Connection Type Direct-Plug

Installation Freestanding

Housing Material Other, Stainless Steel, Galvanized Steel/Stainless Steel

Certification CE, Other, CE, ISO9001-2008, China patent, C/E, ISO9001-2008

Capacity 150, 150L

Place of Origin Shandong, China

Brand Name Guangpu or OEM

Model Number 58mmx1800mm

Specifications

1.china patented
ating material SS-C/CU-AL
3.certificate CE, ISO9001-2008
4.OEM is available
5.19years manufacturer

THE ADVANTAGE OF US

1. China patented, -60degree centigrade without broken.

2. Certificate CE ISO9001,famous brand.

3. OEM is available, fast delivery, all details can be changed according customer required.

4. 19years professional solar manufacturer

Description	Un-Pressurized Solar Water Heater

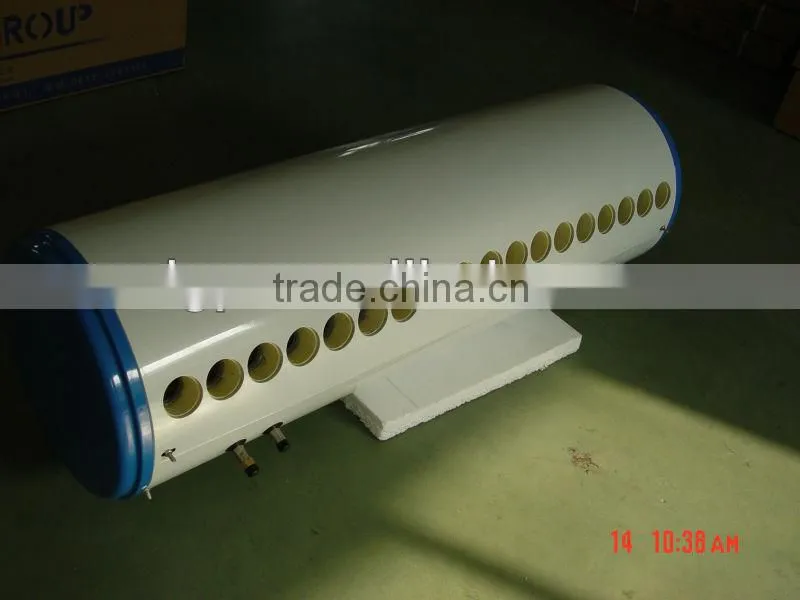

Water tank outer cylinder	White pearl board, diameter Φ470mm, thicknessδ=0.32mm
Water tank inner cylinder	Food grade SUS304 stainless inner cylinder, diameter Φ360mm, thickness δ=0.31mm
Tank insulating layer	55-60mm thickness,high-density polyurethane foamed
Inlet and outlet hole	Male G 1/2, 3/4

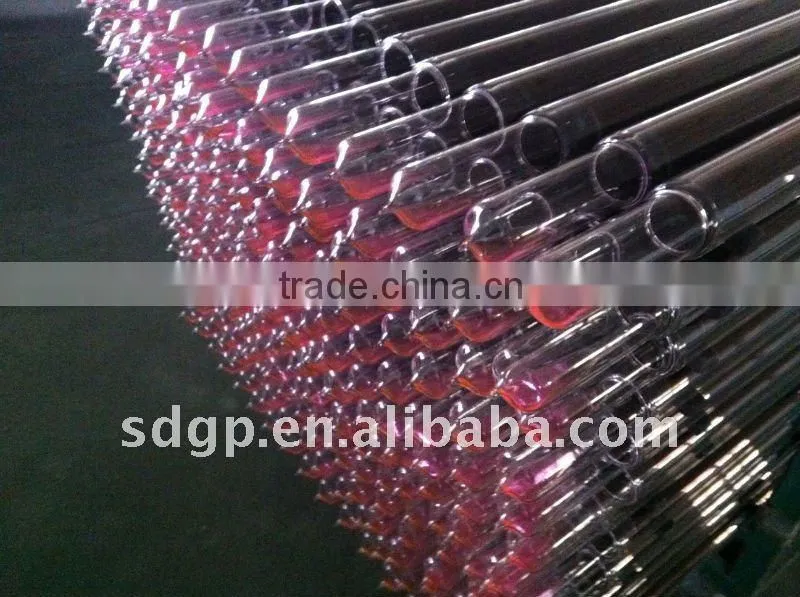

Solar vacuum tube	High Borosilicate 3.3 glass with SS-Cu-ALNx coating
Thickness of glass tube	1.6mm
Air-drying temperature	P≤2x10^-3Pa
Absorption	as=0.93-0.96(AM1.5)
Emission ratio	εh=0.04-0.06(80°C±5 °C )
Maximum stagnation	Y=250m²°C /kw
Average heat loss coefficient	ULT=0.4~0.6W/(m²°C )

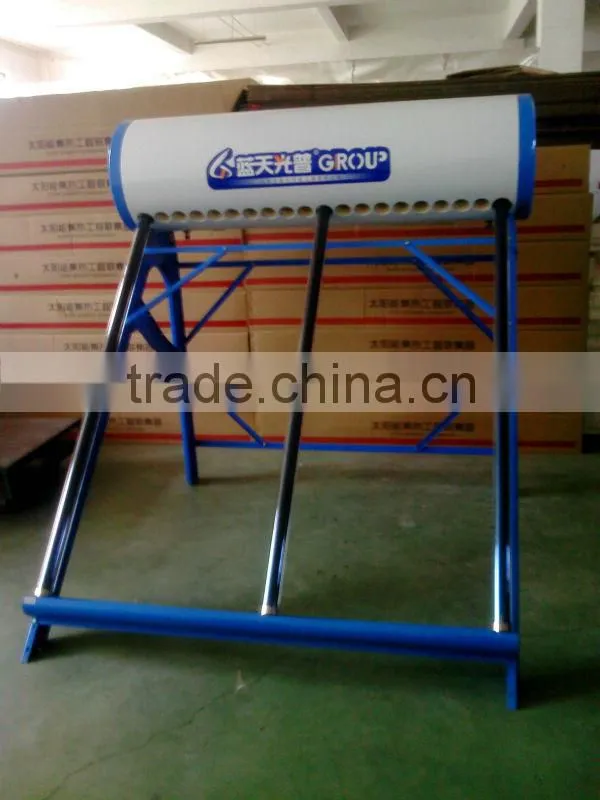

Bracket	Galvanized steel or Aluminum alloy
Absorber area	3.25m²
Heat pipe size	High efficient 58x1800mm triple target tube
Heat pipe material	All glass
Temperature tolerance	from -60 °C to 300 °C
Tube quantity	10/16/18 / 20 /24 / / 30 / 36/42 tubes
Tank capacity	80L/100L/ 130L / 150L/ 165L / 200L / 250L / 300L/ 350L
Number of persons	3-12
