Compact Non-pressurized Solar Water Heater With 58x1800mm Solar Heat Tubes

Compact Non-pressurized Solar Water Heater With 58x1800mm Solar Heat Tubes photo-1
US$ 160 - 300 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Guangpu or OEM
Model Number:
47/58 120 150 160 180 190 210
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Guangpu or OEM
Model Number 47/58 120 150 160 180 190 210
Type Other, Non-Pressure, all glass evacuated tubes solar water heater
Application Water Heater
Pipe Material Glass

Specifications

1. compact non-pressurized solar water heater with 58x1800mm solar heat tubes
2. insulated layer (55-60mm)
3. anti-freezing

Compact non-pressurized solar water heater with 58x1800mm solar heat tubes:

Specification



1. Water tank inner cylinder: thickened SUS304 stainless inner cylinder, diameter Φ360mm, thickness δ=0.31mm



2. Water tank outer cylinder: white pearl board, diameter Φ470mm, thicknessδ=0.32mm



3. Insulated layer: adopting full-automatic constant temperature quantitative foaming process to manufacture the insulated layer(55 to 60mm), subjected to high-temperature curing treatment, compact and uniform cells, high thermal insulation effect



4. Frame: hot-dipping zinc galvanized plate, adopting anti-corrosive treatment process to guarantee the tightness and anti-corrosion of the bracket, high bearing and windproof properties, long service life which is as long as more than ten years



5. Vacuum tube:  Φ58*1,800mm all glass solar vacuum  tube



6. Characteristics of vacuum tube:  high-temperature resistance, anti-freezing,  long service life, no tube explosion,  aging resistance, high efficiency, vacuum super heat conduction,  etc.



6. Volume (L): 160 to 350L



7. Number of persons: 3 to 12

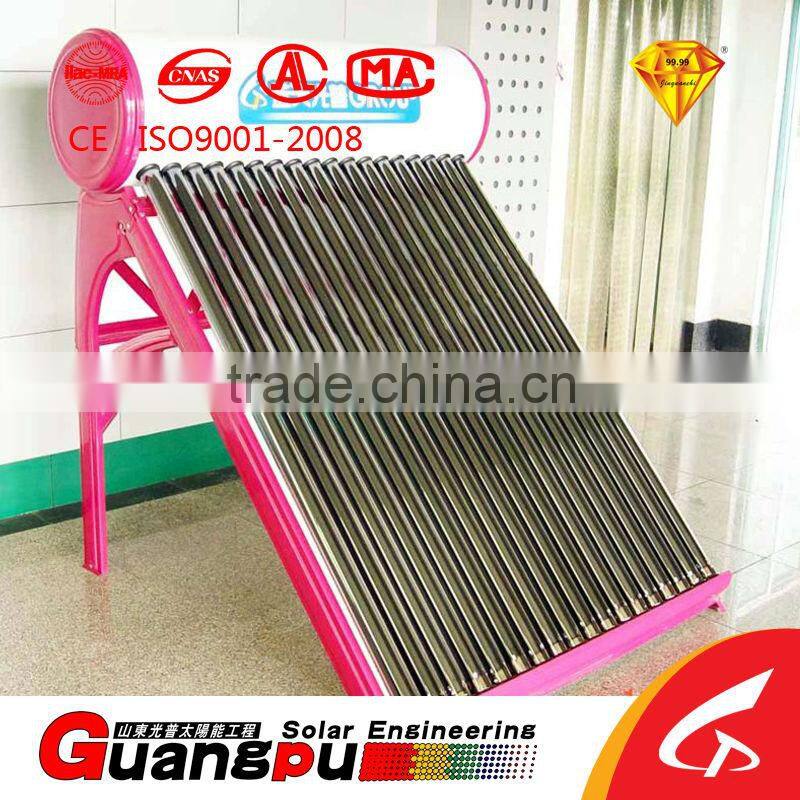

 compact non-pressurized solar water heater with 58x1800mm solar heat tubes



compact non-pressurized solar water heater with 58x1800mm solar heat tubes

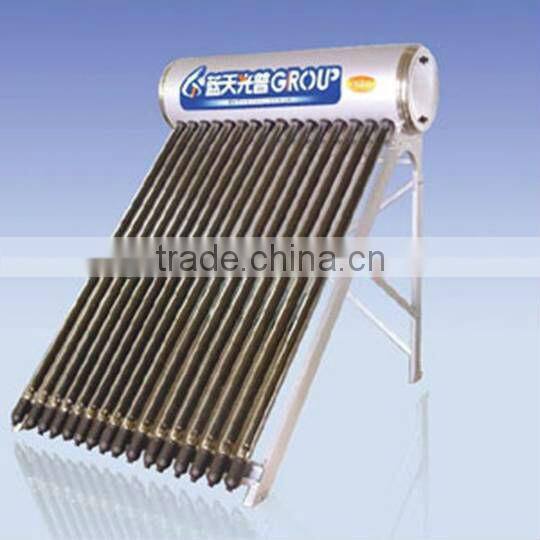

compact non-pressurized solar water heater with 58x1800mm solar heat tubes

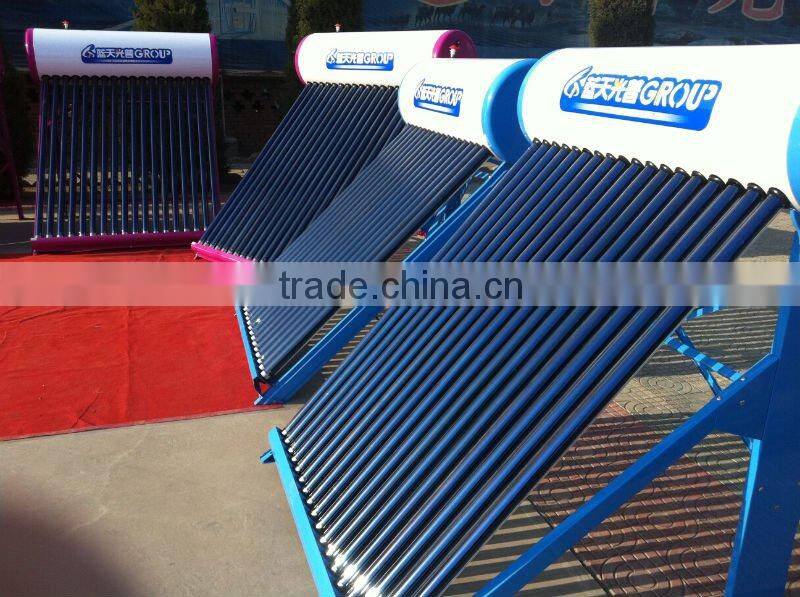

compact non-pressurized solar water heater with 58x1800mm solar heat tubes

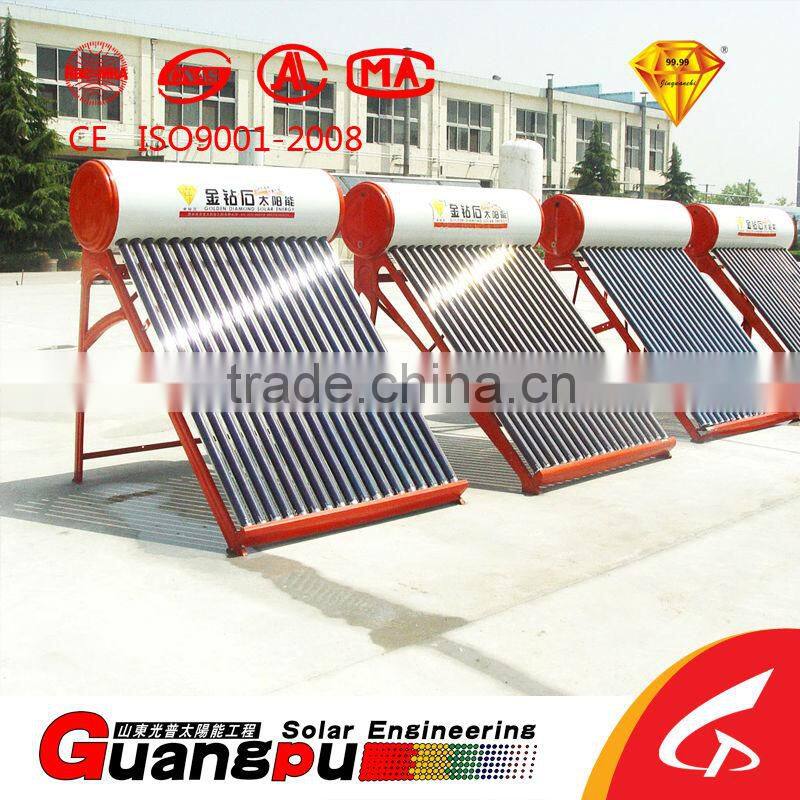

compact non-pressurized solar water heater with 58x1800mm solar heat tubes

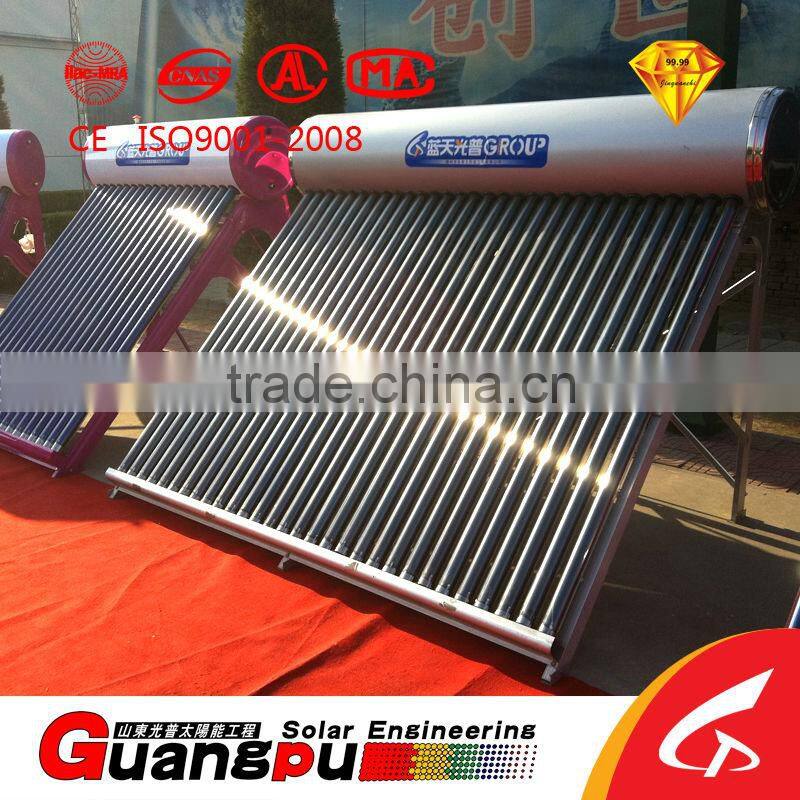

 compact non-pressurized solar water heater with 58x1800mm solar heat tubescompact non-pressurized solar water heater with 58x1800mm solar heat tubes
