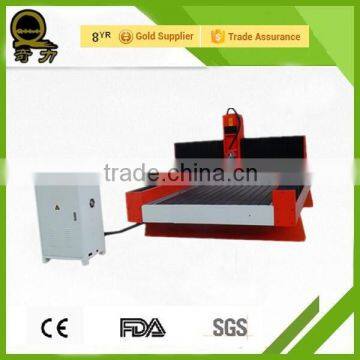

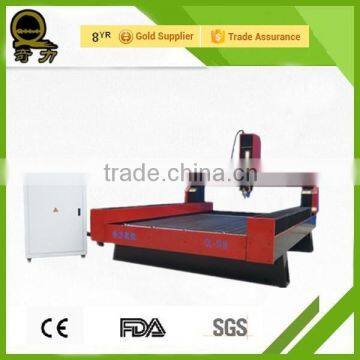

mini manual milling 3d ql-1218 bridge saw stone carving power
tools granite cnc router/concrete cutting machine
Product Overview
Stone CNC Router is at the service of customers who need to do engraving on stone. Overall structure is the most solide or large bearing capacity,With tool cooling system and water-and-dust proof on three axes. it is suitable for many kinds of stone carving.
Product Features
1.Lathe bed uses thick-walled square tube structure with good rigidity and strength that can load heavy materials weighting up to one ton.
2.High power spindle provides large cutting intensity and high efficiency.
3.Tool cooling system ensures effectively processing effect and improves tool life.
4.Water/Dust proof on three axes makes transmission system clean and rust-proof for good accuracy and longer life.
5.Automatic oiling system can lubricate rails to ensure working accuracy, effectively extending machine's lifespan.
Technical Specification
| Model | QL-1218 | Optional |
| Working Area(X*Y*Z,mm) | 1200*1800*300 | Customization is available |
| Machine Structure | Thick-walled square tube lathe bed and T-slot table of sectional material | |
| Work Holding | By Clamps | |
| Overall Dimensions(mm) | 2100*2950*1700 | |
| Precision(mm) | 0.07 | |
| Positioning accuracy(mm) | 0.02 | |
| Repeatability(mm) | 0.02 | |
| Idling Speed(mm/min) | 9.000 | |
| Working Speed(mm/min) | 5.000 | |
| Spindle | 5.5kw water-cooling(0-24000rpm) | specified power, ari-cooling(0-18000rpm)at any KW |
| Drive System | stepper motors | Servo motors |
| Working Voltage | AC380V+30V,50HZ | |
| Command Code | G Code(*.nc.*.mmg.*.u00,ect.),*.eng | |
| Control System | Ncstudio system | |
| Compatible Software | Window98/XP/7 G Code |
Parts of stone cnc router
Optional accessories:
1. Rotary axis
For engraving on cylindrical shape materials. Please kindly tell us your cylindrical
shape materials’ length and diameter. Then we can add right rotary axis to the machine.
2. Vacuum table (contain vacuum pump and vacuum pipes)
For fixing the materials on the working table, especially for bigger working table.
After added vacuum table, the voltage will need to be 3 phase/380V.
3. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
4. Bigger power spindle(1.5kw,2.2kw, 5.5kw and so on)
Scope of application
Most perfect for engraving on common stone like marble,bluseston and even on hard stone like granite.It is also capable for engraving on glass of thickness more than 5mm.
Suitable to not only stone engraving for tombstone,tile or other related industries,but also can do jobs with skill and ease on common material in woodworking,advertising and metal industry with a wide range and application and high practicality.
Samples show
Factory&Packing
1.Jinan Hongye CNC Machine Co.,Ltd is a professional manufactuer of CNC Routers which was built in 2002.
Since our factory was founded, we are devoted in CAD/CAM carving technology and the research and
development of CNC numerical control technology. We made a considerable progress in the design theory of
precision engraving machine and the processing technology aspect. We successfully realized the automation control
technology, which was transformed to industrial production.
2.For 12 year's hardworking and perfect management, Hongye CNC rely the competitive price ,excellent quality
and good service won the good reputation of domestic and overseas clients.
3.With fine fitting parts and advanced technique, our products expand stably, in the fields of advertisement,
carpentry, and metal molds.
4.With superior performance-to-price ratio, high quality, and perfect post-sales service, the market share
of our products expands unceasingly. We will unceasingly develop and innovation with our factory.
Exhibition&Clients
our clients are from all over the world,welcome to join us!!!
Our team
Guarantee&Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
Certificate
Sales Network
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer
Looking forward to your letter or to act as our agent. You can customize various parts.
