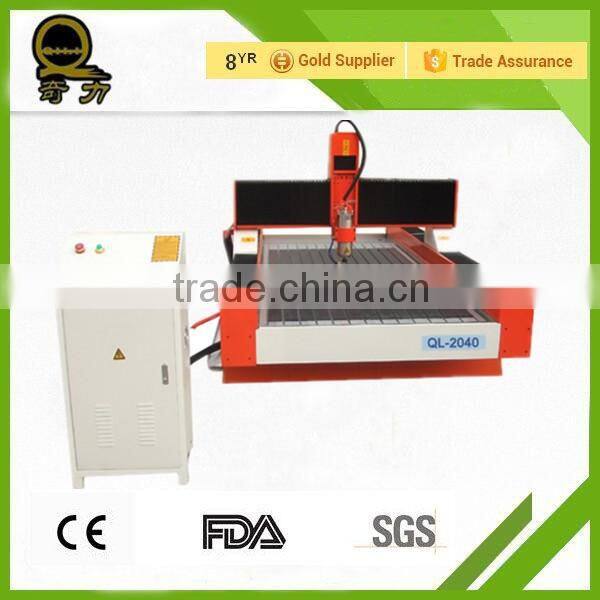

Jinan factory supply constant power spindle motor stone milling machine
Product Overview
Stone CNC Router is at the service of customers who need to do engraving on stone. Overall structure is the most solide or large bearing capacity,With tool cooling system and water-and-dust proof on three axes. it is suitable for many kinds of stone carving.
Product Features
1>imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.
2> The Stone CNC Router Machine seamless welded steel structure, rigid Haobu deformation, table back lining plate, the rigid strength, and machine loading capacity can be
3>constant power spindle motor, cutting intensity, high efficiency.
4>software compatibility, and compatible with Typ3/Artcam/Castmate / Wentai, and other CAD / CAM design software
5>two-way tool cooling system, effectively raising tool life
Technical Specification
Machine Model |
QL-2040 |
X.Y working area |
2000*4000mm |
Z working area |
300mm |
Table |
3000*4200mm |
Max. Speed |
8m/min |
Max. working speed |
6m/min |
Working delicacy |
0.005mm |
Repositioning accuracy |
0.05mm |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power (spindle is not included) |
1500w |
Working voltage |
AC380V/50Hz |
Spindle power |
3.0kw |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper |
Scope of application
Most perfect for engraving on common stone like marble,bluseston and even on hard stone like granite.It is also capable for engraving on glass of thickness more than 5mm.
Suitable to not only stone engraving for tombstone,tile or other related industries,but also can do jobs with skill and ease on common material in woodworking,advertising and metal industry with a wide range and application and high practicality.
Details of stone cnc router
Samples show
Factory&Packing
Exhibition&Clients
Our team
Certification
Sales Network
Guarantee&Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer
Look forward to your enquiry on our all kinds machines you can choose.
