New Unique Design 20*4.0 Fat Tire Bike Factory /Snow Bicycle

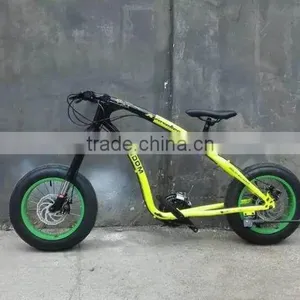

New Unique Design 20*4.0 Fat Tire Bike Factory /Snow Bicycle thumbnail-1

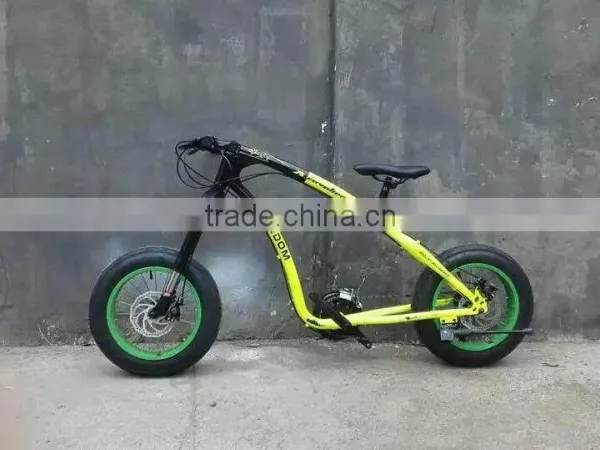

New Unique Design 20*4.0 Fat Tire Bike Factory /Snow Bicycle photo-1
US$ 80 - 90 MOQ: 100 Sets
Key Specifications
Get Latest Price
Type:
Other, Fat Bike
Wheel Size:
Other, 20"
Frame Material:
Steel
Contact Supplier Request Quote Chat Now
Tianjin Triumph Sport Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Fat Bike
Wheel Size Other, 20"
Frame Material Steel
Fork Material Steel
Rim Material Aluminum Alloy
Place of Origin Tianjin, China
NO. ITEM SPECIFICATION
1 FRAME 20”*steel fat bike frame
2 FORK steel 20“suspension fork,disc brake,toothless stem fork:28.6*25.4,add 80MM, with 4.0 tire
3 HEAD-PARTS toothless 9 pcs ,H;28.5MM   25.4*34*30 ED
4 B.B.SETS D axle sealed B.B.parts, EN model,ED, 120mm
5 HANDLE BAR alloy balck swallow handlebar, 2.0mm,600mm matte black;31.8mm
6 HANDLE.STEM alloy 4-pin stem,80mm31.8*28.6  matte black  H:37
7 GASKET alloy black gasket  H:10MM  dia:28.6   3T  2pcs
8 GRIP WX square hole grip , one side opening ,120mm/75mm black
9 F.HUB steel fat bike hub 3/8*14G*36H*135*180mm     ED clamp model disc brake
10 R.HUB steel fat bike hub 3/8*14G*36H *195*230mm    with screw thread on one side   ED
11 SPOKE 45#­*14G F:183/182  R:187/184     ED
12 RIM alloy fat bike rim  20”*4.0*14G*36H    W:75mm
13 TUBE 20*4.0  butyle rubber  A/V     BK
14 TYRE 20×4.0  black tire
15 OB 20  grey OB for fat bike model
16 BRAKE-ARCH Yinxing YX-DB01F  F/R disc brake  BK    stainless steel 160/160
17 BRAKE-CABLE 3 black cable  F/brake: 650*800  R/brake: 450+510*1400
18 CHAINWHEEL&CRANK 1/2*3/32*24*34*42*170   matte black imitation steel crank
19 CHAIN P7003 1/2*3/32*114L  brown
20 FREE WHEEL Shimano NF-TZ21 7pcs location freewheel,14-28T
21 PEDAL TS-212 MTB diamond model,whole alloy black pedal, with reflector 9/16 axle core
22 SADDLE 2789-1 black high elastic leather saddle , ED bracket ,2.0clamp
23 SEAT POST steel 28.6×250×1.2T  matte black with safety line
24 SEATPOST CLAMP  alloy 31.8mm with quick release , matte black
25 KICKSTAND 20" side kickstand with screw thread on both side     ED   245MM
26 DERAILLEUR  Shimano EF51-21 speed location
27 CABLE  SP black cable tube:470+290*320
28 F/DERAILLEUR  Shimano FD-M410 ip& down front derailleur,ED;SP black cable tube:500  +  170 MM
29 R/DERAILLEUR  Shimano RD-TZ50 directly model rear derailleur    ED
30 SKI PAD  5-1/2 many ends black ski pad with Shimano logo
31 CARTON 85% SKD 1set/CTN    130*24* 63 CM
32 DECAL inner decal
33 PACKING 85% SKD package,1 set/CTN
