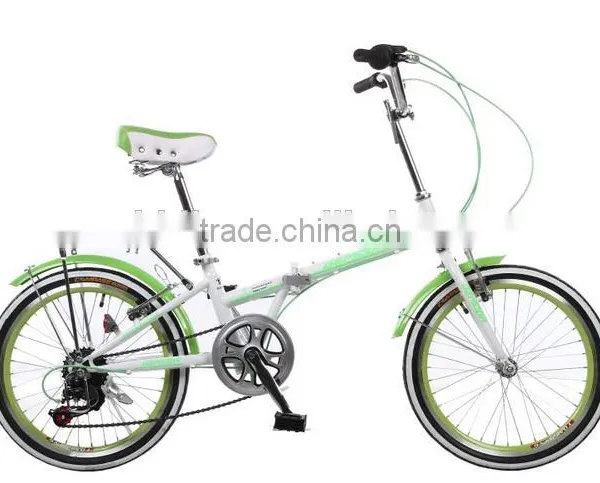

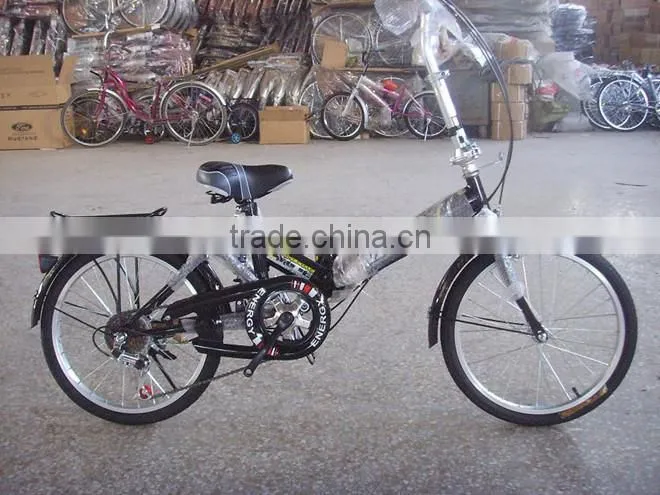

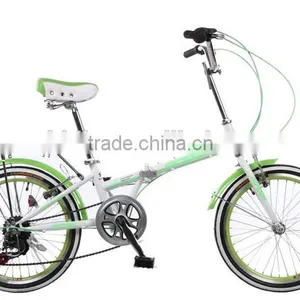

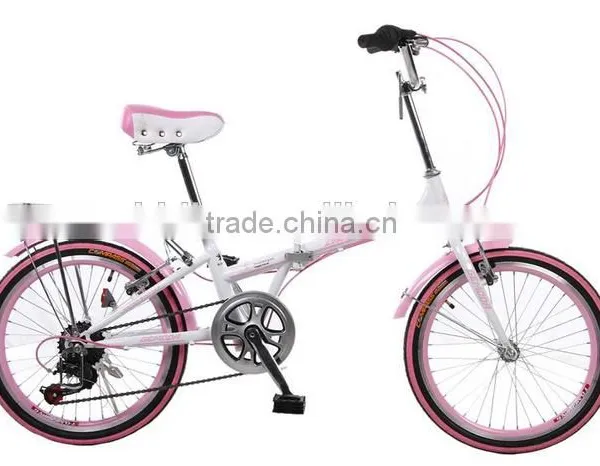

Economic 20 Inch Folding Bike /China Tianjin Bicycle Factory
Negotiable
MOQ: 200 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Folding Bicycle
Wheel Size:
Other, 20"
Frame Material:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Folding Bike 20" Fold Bike / Single Speed BikeNegotiableMOQ: 200 Sets -
20" Folding Bike for Lady From China / 6 Speed BicycleNegotiableMOQ: 200 Sets
-
Hot Selling Good Quality 20 Inch Alloy Folding Bike / 6 Speed BicycleNegotiableMOQ: 200 Sets
-
Hot Sell 20 Inch Alloy Folding Bicycle / 6 Speed Folding BikeNegotiableMOQ: 200 Sets
-
20 Inch Alloy Folding Bike With 6 SpeedNegotiableMOQ: 200 Sets
Type
Folding Bicycle
Wheel Size
Other, 20"
Frame Material
Steel
Fork Material
Steel
Rim Material
Aluminum Alloy
Model Number
MX-F2006007
Place of Origin
Tianjin, China
SUPPORT 20& 24 INCH FOLDING BIKE
Specification:
1. Frame and fork
Steel folding frame and fork with painting, T: 1.2mm
2. Handle bar sets
Steel handle bar and alloy folding stem CP
3. Wheel sets
Alloy 20/24*1.95 rim and 20/24*1.95 black tire
14G* 36H hub CP
14G*36H spoke with steel nipple
4. Drive System
Steel CP crank&chain wheel
With steel chain cover with painting
Brown chain as fact
Rear 1speed/ 6speed, shimano or Chinese brand
5. Brake sets
Front and rear V brake
1. Frame and fork
Steel folding frame and fork with painting, T: 1.2mm
2. Handle bar sets
Steel handle bar and alloy folding stem CP
3. Wheel sets
Alloy 20/24*1.95 rim and 20/24*1.95 black tire
14G* 36H hub CP
14G*36H spoke with steel nipple
4. Drive System
Steel CP crank&chain wheel
With steel chain cover with painting
Brown chain as fact
Rear 1speed/ 6speed, shimano or Chinese brand
5. Brake sets
Front and rear V brake
| MODEL : 20 '' FOLDING BICYCLE | |||
| PART NAME | MATERIAL | DESCRIPTION | COLOR |
| FRAME | steel | 24/20 FOLDING BIKE, STEEL | painting |
| FORK | steel | STEEL WITH PAINTING | painting |
| DECAL | TO ORDER | ||
| HANDLE BAR | ALLOY | ø22.2*ø25.4*2.0T*560mm H=80mm | itself |
| HANDLE STEM | ALLOY | goose type handle stem | itself |
| BASKET | steel | same as photo 5.5 stay | white |
| GRIP | L=75mm R=110mm single through | BK | |
| SHIFTER | 6speed/1speed | BK | |
| F:DERAILEUR | steel | 6speed/1speed | CP |
| SHIFTING CABLE | 2P | BK | |
| FRONT BRAKE | alloy | front V brake | itself |
| REAR BRAKE | alloy | rear V brake | itself |
| BRAKE LEVER | 3&half finger type semi-alloy brake lever , with alloy adjustable screw | BK/SIL | |
| BRAKE CABLE | 2P | BK | |
| BBSETS | steel | D type ,inside spread eagle ;5pcs,with 1/4*9 bearing 2pcs | ED |
| AXLE | steel | 3T built-in thread Tighten the Flange screw | ED |
| CHAINWHEEL | steel | 1/2*3/32*36T*152L,steel crank 9/16 thread for pedal's installation | ED |
| CHAIN | steel | 1/2*3/32*108L | Brown |
| CHAINCOVER | 36T with chain guard | ||

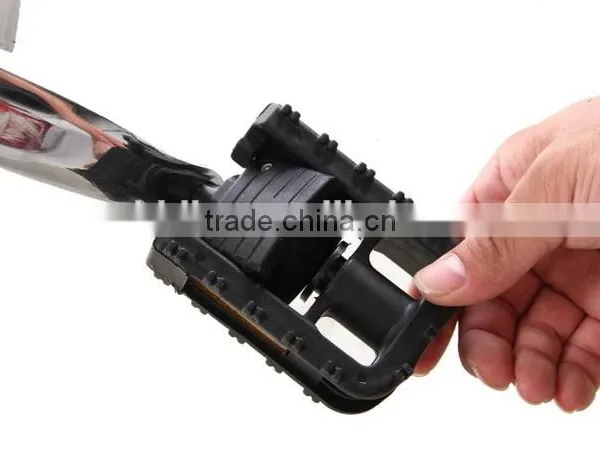

| PEDAL | steel | Pedal for folding bike with ball , 9/16 thread for installation ,with "L R "marking | BK |
| FRONT HUB | steel | 3/8*14G*36H*100*140L, safety hook +Flange nut | CP |
| REAR HUB | steel | 3/8*14G*36H*135*175L,,Flange nut , monofilament L=R-2 | CP |
| SPOKES | steel | 45# steel ,14G F/R=(18/54)steel nipple 12mm(CP) | UCP |
| RIM | steel | 24/20*1.75*36H*14G alloy rim & oxidation,w/o chinese LOGO | oxidation |
| GASKET | steel | 24/20*20mm*0.8T PVC | PVC |
| TIRE | 24/20*1.75 | BK | |
| TUBE | 24/20*1.75 A/V butyl | BK | |
| FREEWHEEL | steel | 1s free wheel | brown |
| SADDLE | as photo, spring :ø5.8 girder :ø6.8 clip : 2.2T | brown | |
| SEAT POST | steel | steel ø25.4*250L*1.2T with safety line | CP |
| SEAT POST SCREW | steel | M8*55mm with quick release | CP |
| CARRIER | steel | as the sample , with spring clip | ED |
| MUDGUARD&stay | steel | 52*0.45T Stay:F/R:220 | ED |
| kickstand | steel | 24/20'' kickstand | ED |
| ASSEMBLY | SKD 95% | ||
Note: This spec sheet is only for reference, we can give you competitive offer according to your request.

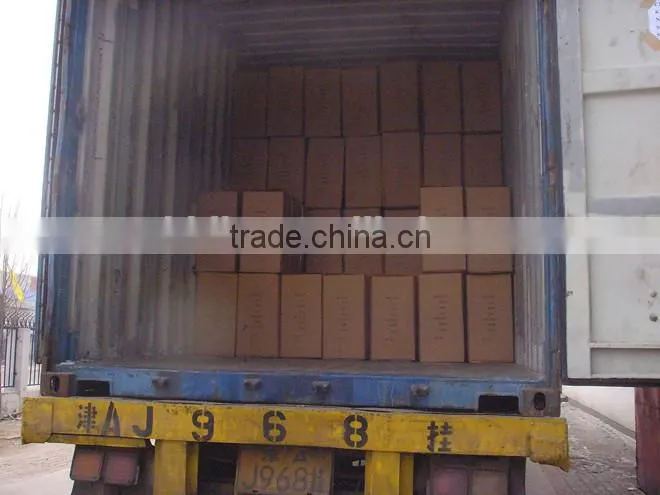

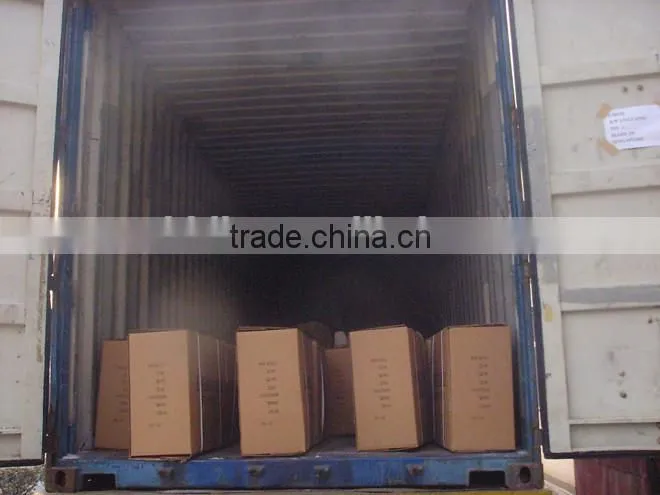

LOADING SHOW:
