Home > Products > cnc router Machine > 2015 double heads ncstudio supply ball screw jinan metal cnc engraving machine

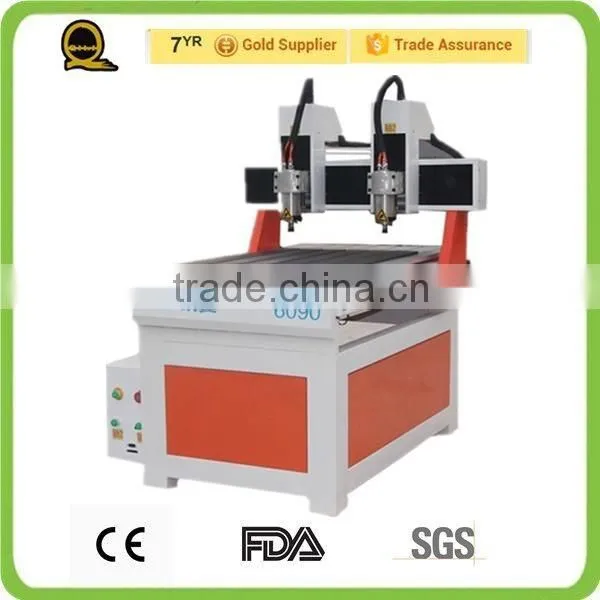

2015 double heads ncstudio supply ball screw jinan metal cnc engraving machine
- 200 Set / Sets per Month
- Tianjin/Shanghai/Qingdao/Guangzhou
- Credit Card
- Pneumatic flange dot pin engraving machine dot peen metal engraving machinery
- Pneumatic metal stainless steel flange dot pin engraving machine dot peen metal engraving machinery
- VIN number chassis code serial number dot peen marking metal engraving machinery
- Portable handheld dot peen marking machine vin number engraving machinery
- Pneumatic dot peen marking machine metal stainless steel flange dot pin engraving machine
- Pneumatic dot peen marking machine metal stainless steel dot pin engraving machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | QL |
Model Number: | QL-6090 | Rated Power: | 1.5KW | Engraving Speed: | 6M/MIN |
Main Axle Rotational Speed: | 24000RPM | Feeding Height: | 80/100 | Milling Cutter Diameter: | 3.75-6 |
Weight: | 500KG | Certification: | CE,SGS, CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2015 double heads ncstudio supply ball screw jinan metal cnc engraving machine
Features:
1. Steel struurectlathe table
2.Imported ball screw
3.Watercooling brushless spindle:low noise,vigorous cutting strength and long time mass processing.
4.Special X axis dust-proof system:ensure the good performance of the machine.
5.Broken-point memory :ensures the continuity of work when inciddent happens.
Applications:
1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould.
2.Application: acrylic, density board, organic glass, soft metals like aluminum, etc
Specifiction and technical parameters:
| Standard Configurations | Options |
Machine structure | Steel Lathe Bed |
|
Working table | T-slot | Vacuum table |
Spindle | 1.5kw water-cooling | air-cooling |
X/Y/Z Transmission | X/Y/Z Ball screw | |
Guides type | round guides | Square guides |
Drive motor | Stepper | Servo |
Drive | Leadshine 542 |
|
Control system | NCSTUDIO system | DSP |
Technical parameters:
Model | QL-6090 |
X Y Working Area | 600mm*900mm*100mm |
Z Working Area | 120mm |
Max. Speed | 8m/min |
Max. Working Speed | 6m/min |
Working Delicacy | 0.01mm |
Repositioning Accuracy | 0.02mm |
Feeding Height | 100mm |
Command Code | G Code*.u00*.mmg*.plt |
Working Software | Windows98/2000/xp |
Power (not including spindle) | 1.5kw |
Working Voltage | AC220V/50HZ |
Spindle Power | 1.5kw |
Spindle Running Speed | 0-18000rpm |
Motor | Stepper |
Samples:
Spare parts:
Our company:
Hongye cnc machine is a high-technology enterprise which is specialized in developing
andmanufacturing advanced high grade CNC Router.Having around 12 years’ experience, our company ranks in the front of the fields and enjoys good honor from worldwide.
Meanwhile, our products has been granted CE and SGS certificate. Now we have three main series machines and around 50 models: CNC engraving machine, 3D woodworking machine and laser engraving machine.
And we wish you knew that perfect quality and good after-sales service is our specialty
Our workshop :
Clients:
Exhibition:
Certificate:
Guarantee&Aftersales Service:
1)Guarantee for one year
2)24-hour technical support by email or phone
3)User-friendly English manual and video CD for machine using and maintaining
4)Jinan Hongye CNC Machine Co.,Ltd provides free operation training service in Hongye factory.
Jinan Hongye factory has been established for 12 years since 2002 .
QILI machine get many agents both in China and in foreign countries depend on high quality and good after sales service .
You can see other kind of cnc router on our website .
Any need feel free to contact me !!!
