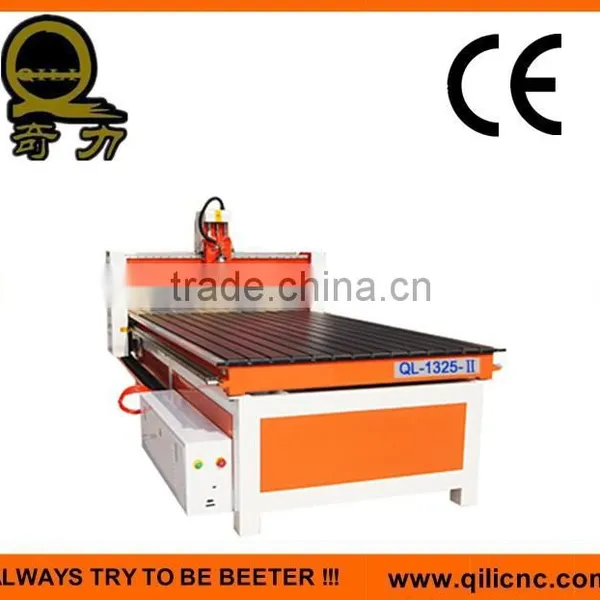

QL-1325-IB china super machine

Specifications

QL-1325-IB china super machine
1.Three axis square rail
2.Ncstudio control system
3.X axis 1300mm Y axis 2500mm Z axis 200mm

QL-1325-IB china super machine



Product overview



This series is the machine specialized in wood cutting working. Devices like vacuum system and dust collctor etc. are optional choice for different requirement as convenience to work fast and efficiently.





Technical Specification

Model	QL-1325-IB	Optional
Working area	1300*2500*200	Customization is available
Machine Structure	Steel structure lathe bed and T-slot of sectional material	Square tube lathe bed Vacuum System
Work Holding	By Vacuum
Overall Dimensions	1950*3100*1650
Precision	0.07
Positioning accuracy	0.02
Repeatability	0.02
Idling Speed	15.000
Working Speed	10.000
Spindle	Water-cooling 3.0kw	Specified power   air-cooling
Available Tools	Φ3.175- φ12.7	Automatic tool changer
Drive System	Stepper motors	Servo motors
Working Voltage	AC380V±30V, 50HZ
Command Code	G Code
Control System	NcStudio	Taiwan LNC System or NcStudi





Product Feature



1.Whole lathe is used for high stability

2.Racks and gears transmission with high-speed motor keeps smooth movement in fast and accuracy.

3.Breakpoint restoring function enable the machine conue to work after sudden stop, such as accident,tool breaking.

4.Wide software compatibility with processing files generated by Type3,ArtCAM, Artcu,AutoCAD, JDPaint, CAD/CAM design software.

5.Auto lubrication system lubricating tracks automatically, ensures machine's precision and service time.





Application

Furniture Decoration industry: A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.

Wood Products Processing:Sewing machine table, eldctrical counter table,sports equipment. Artwork:Photo Frame, jewelry box.

Musical instrument industry: instrument three-dimensional surface engraving, shape cutting.



sample







Certification







Contract information

Jinan Hongye CNC Machine Co,.Ltd.

address: No.168CaiYuan industrial park, Jinan,China

skype:vanessa.han6







HOPE YOUR INTEREST IN OUR PRODUCTS.
