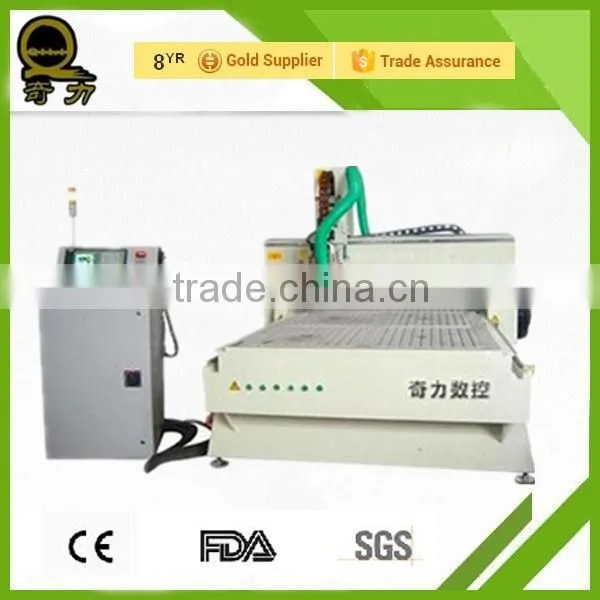

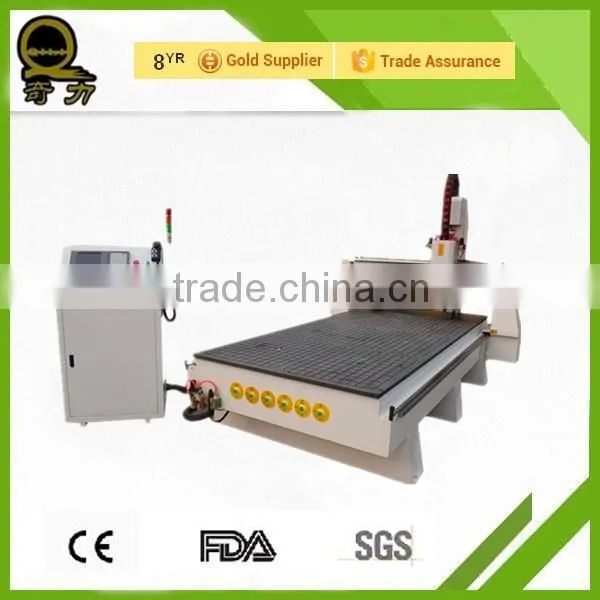

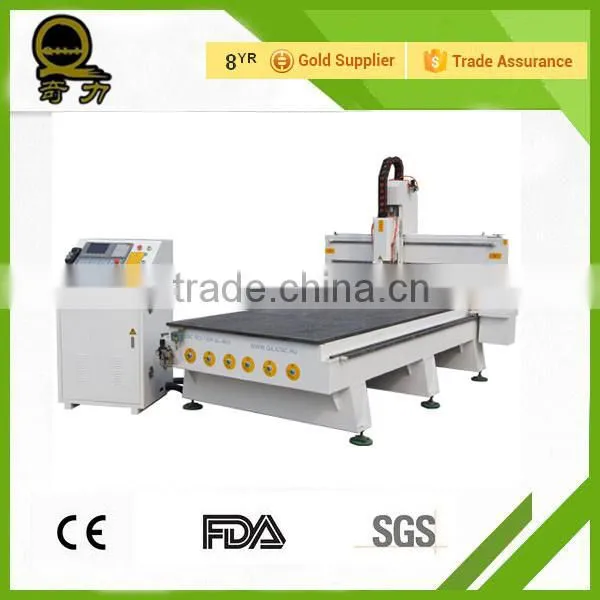

China supplier 3d wood carving machine automatic price
Product Overview
QILI ATC CNC Router series,i.e.,are at the service of High-end customers with high demand in automation,
for its application suitable to 24hrs./day mass production.All the configurations are in high-end configuration
for best performance and best quality and efficiency.
Product Features
1. Heavy-duty thick-walled square tube lathe in good rigidity,is capable of large workload, maintaining solid shape
and non-deformed.
2. High-end CNC control system form Taiwan,achieves automated intelligent control on functions,such as work
area protection,processing cross-border protection auto working speed.Off-line operation of multiple levels
of 3d processing is capable.
3. Advanced document pre-processing functions ensures speed and accuracy of operation.
4. Control panel of 7’ Led, multi-partition keyboard provide convenience and independence for user.
5. Automatic tool changer saves time for manual tool changing to improve efficiency.
6. Servo system from Japan is the core of drive system, with a large torque and complete security system.
Technical Specification
| Model | QL-M25-II | Optional |
| Working Area(X*Y*Z,mm) | 1300*2500*200 | Customization is available |
| Machine Structure | Square tube structure lathe bed and vacuum table | Vacuum table with T-slot |
| Tool Magazine | Carrousel type,6pcs | 8/10pcs |
| Work Holding | By Vacuum | By vacuum and clamps |
| Overall Dimensions(mm) | 2250*3300*2000 | |
| Precision(mm) | 0.07 | |
| Positioning accuracy(mm) | 0.02 | |
| Repeatability(mm) | 0.02 | |
| Idling Speed(mm/min) | 30.000 | |
| Working Speed(mm/min) | 20.000 | |
| Spindle | 6.0kw Air-cooling(0-18000rpm) | |
| Available Tools(mm) | 3.175-12.7 | |
| Drive System | Japanese YASKAWA Servo System | Panasonic |
| Working Voltage | AC380V/50HZ | |
| Command Code | G Code(*.nc.*.mmg.*.u00,ect.),*.eng | |
| Control System | Taiwan Syntec System | Taiwan LNC System or NCStudio |
| Compatible Software | Compatible with any software generating G code file in Window 98/XP/7 |
Scope of application
1.Furniture Decoration industry:A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.
2.Wood Products Processing:Sewing machine table,electrical counter table,sports equipment.
3. Musical Instrument Industry:Instrument three-dimensional surface engraving,shape cutting.
4.Electronic Industry:Circuit board, insulation material, LED display screen.
Parts of woodworking machine
Samples show
Factory&Packing
Jinan Hongye CNC Machine Co.,Ltd is a professional manufactuer of CNC Routers. We are CNC Machine factory with 13 years experience and mainly deal inWoodworking/Stone/Advertisement/Metal/Plasma Machine&Laser engraver.
We have own factory and we can produce the machine according to your requirement.
We have other machines and you can contact us if you need it.
Exhibition&Clients
Our clients are from all over the world,welcome to join us!!!
Our team
Guarantee&Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
Certificate
SALES NETWORK
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer
Welcome your inquiry, If you have any need, please contact me at any time. Welcome to visit our factory.
Contact:Tell:0086-531-88611918 Sype:Nancy Liang
