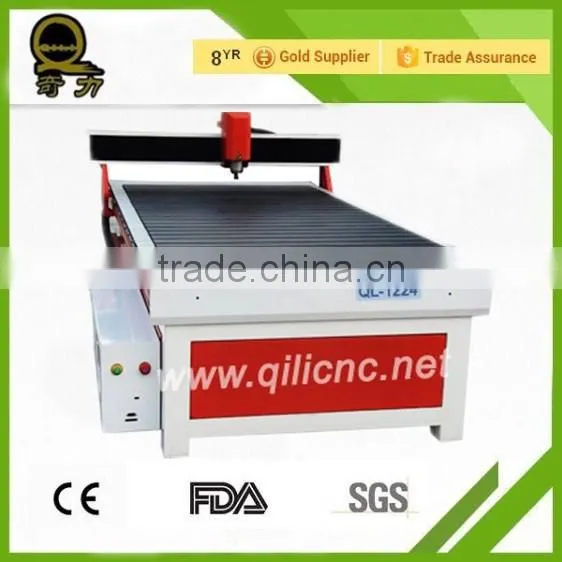

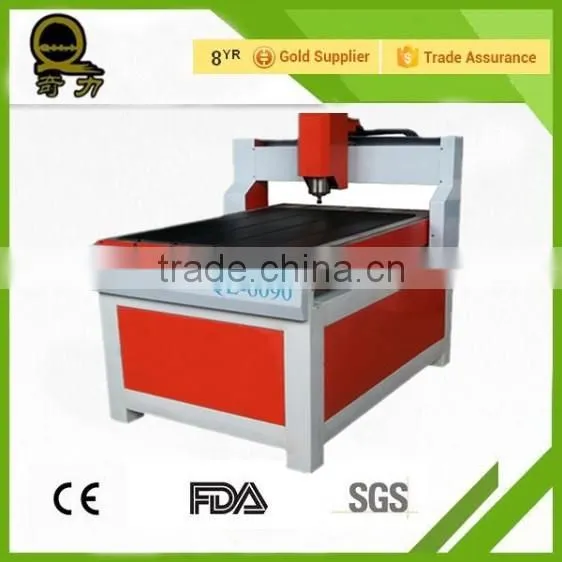

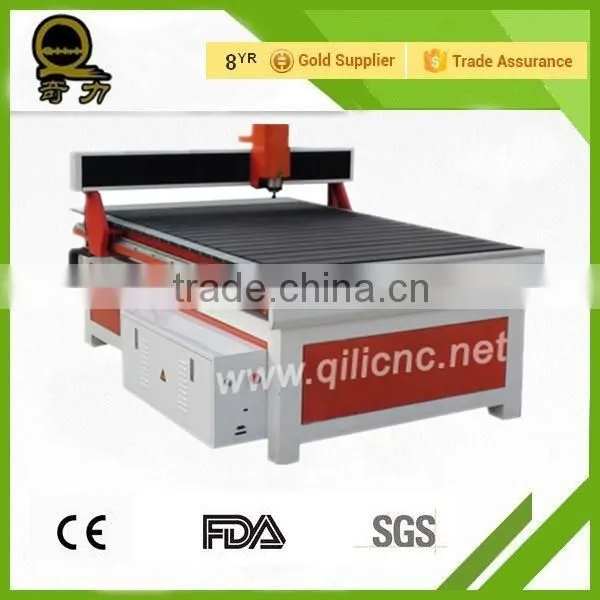

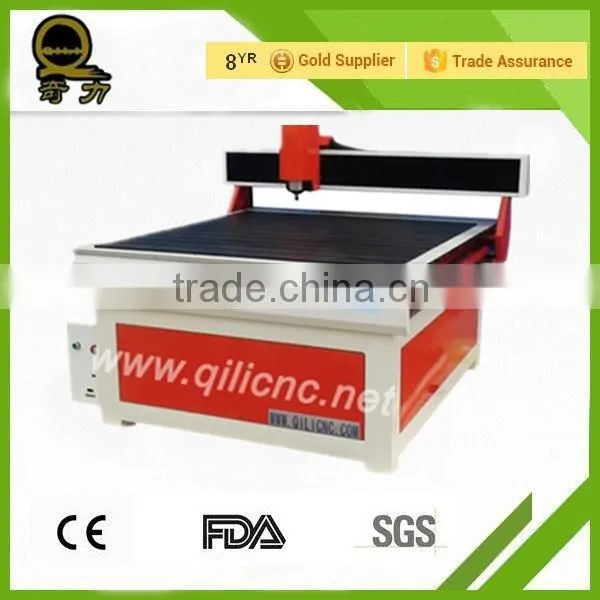

Advertising Engraving Machine 3D Software Compatibility And Easy To Operate
Specifications
1.customization is available
2.1200mm*2400mm*120mm working size
3.can be 3d engaving
Technical specifications:
Machine Model |
QL-1212 |
X.Y working area |
1200*1200mm |
Z working area |
120mm |
Table |
1650x1650mm |
movement positioning accuracy |
0.02/300mm |
repeat positioning accuracy |
0.01mm |
X, Y verticality |
0.025/300mm |
Z space to a high degree |
120mm |
Spindle speed |
6000-24000rpm/min |
Carving the highest rate |
3000mm/min |
Driving System |
Stepper |
Machine structure |
Steel structure lathe bed,T-slot table of sectional material |
| Working holding | By clamps |
| Spindle | 1.5kw,water-coolin(0-24000rpm) |
| Available tools(mm) | φ3.175~φ6 |
| Working voltage | AC220V±30V,50HZ |
| Compatible software | Window98/XP/7 G code |

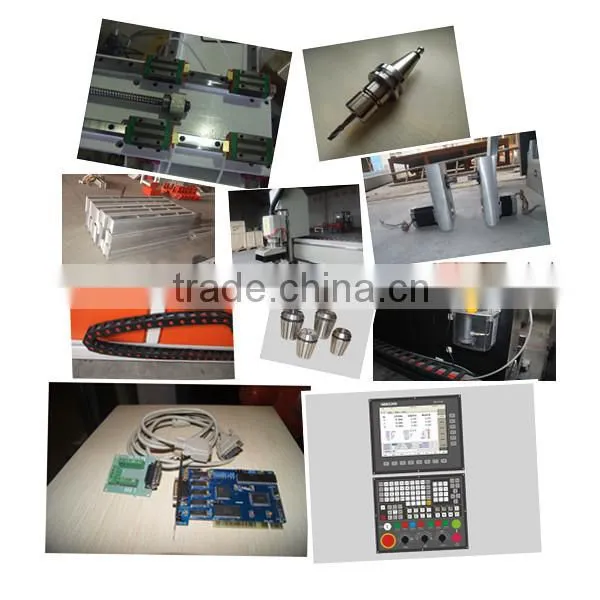

Machine details:

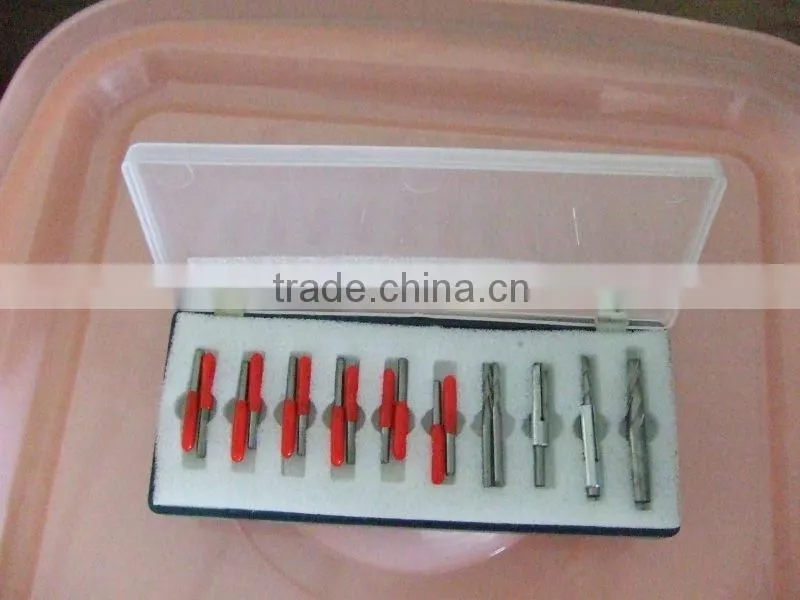

knife you can choose:

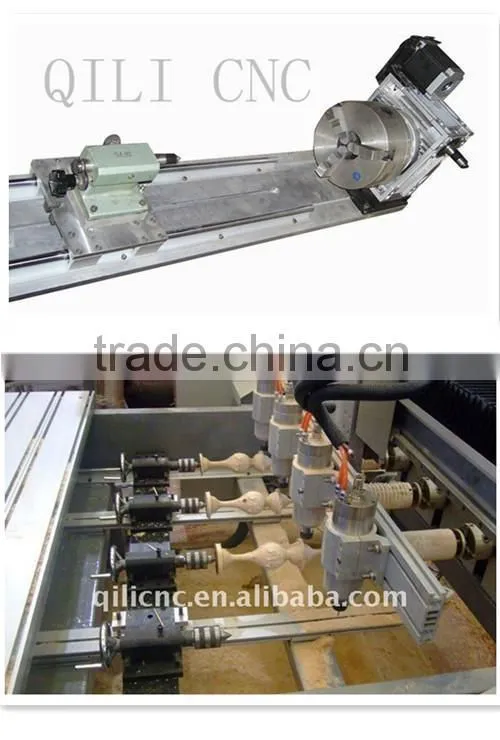

rotary is optional according to your need

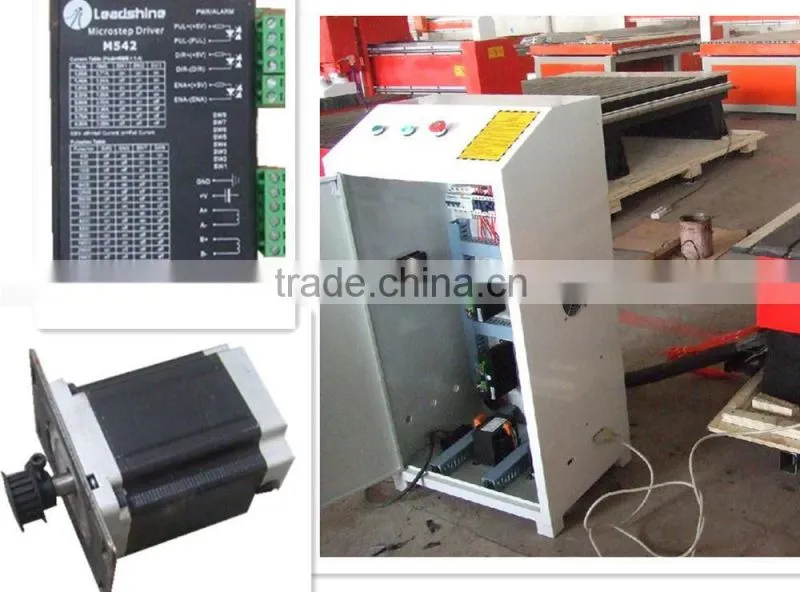

leadshine drive and stepper motor
Machine Features
1.Square linear guide tracks provide large loading capacity and high precision.
2.Double-net ball screws from German offer high working accuracy.
3.Restoring function enable the machine continue to work after sudden stop, such as accident, tool breaking.
4.Sample made out is not only delicate without serrature, the bottom is also smooth and in high edge sharpness.
5.Square guides on axis Y is optional for high accuracy request in large size material.
7. constant power spindle motor, cutting intensity, high efficiency.
8. the U-disk embedded control system completely offline to work more convenient and flexible.
The samples show
Applicable Fields:
1.Advertising:engrave/cut various signboards,mouble,copper, character mold,various metal sign, brand.
2.Craft & gift:engrave various word or graph on souvenir and handicraft,ironwork engraving, dials.
3.Mould:architecture, Gilt membrane, electric machinery, High frequency mold, moulding on shoes, badge, embossed mould, biscuit, candy, chocolate mould
4.Stamp:easy and convinent to seal on various materials such as ox horn, plastic, organic board, wood etc.

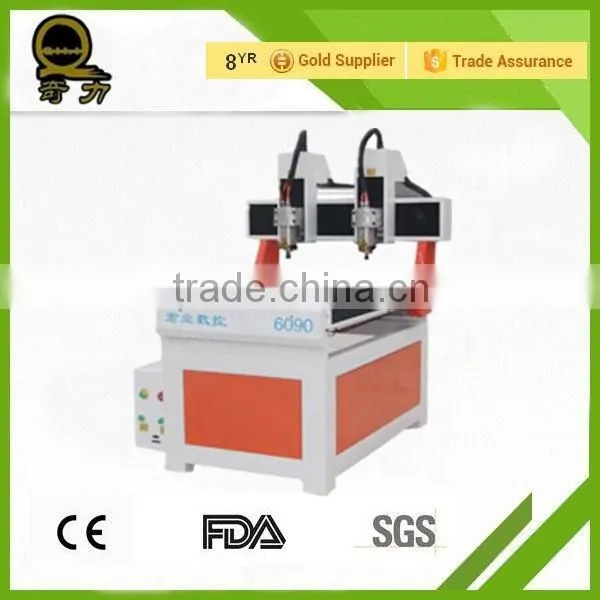

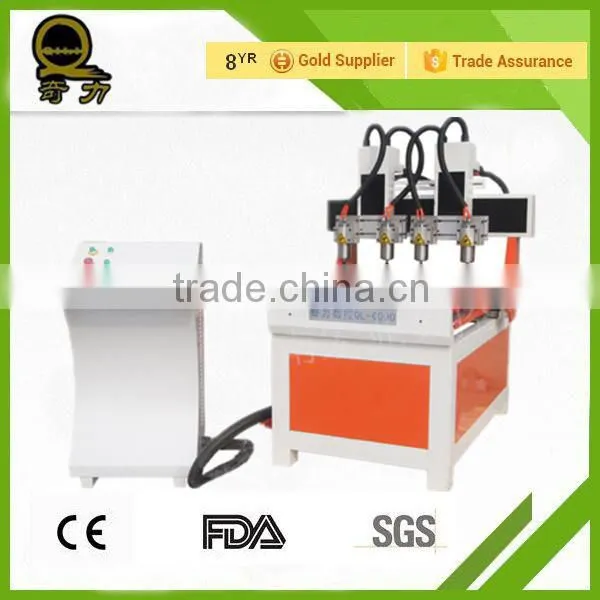

Other products:

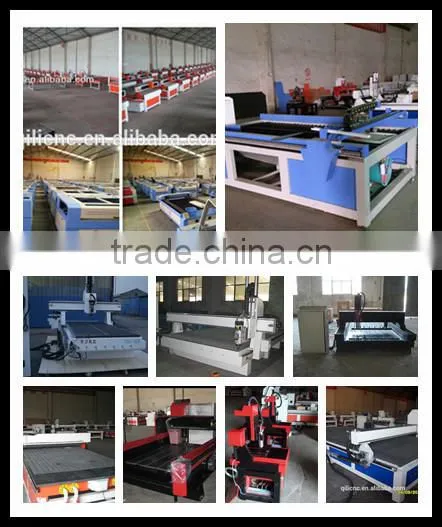

Our factory
Our team
welcome your inquiry and to be our agents.all kinds machines you can choose.
Guarantee&Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
Contact: Tel: 86 531 88611918
