AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision

AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision photo-1
US$ 21 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sunivision
Model Number:
AP-FF1157AHD131
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Sunivision
Model Number AP-FF1157AHD131
Type Analog Camera
Style Bullet Camera
Sensor Other, CMOS, CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision


NOTICE:  This camera needs to access AHD DVRCannot work with normal DVRs.



    Best choice for project reconstruction!!You can upgrade an existing analog security system

    to 1.0MP/1.3MP HD camera system without changing cable routes.



    1) Applying high performance sensor, the image is clear and delicate

    2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion

    3) Analog HD 960P @AHD video output

    4) Support OSD menu, can be freely adjusted in image and function

    5) Transmission distance up to 500 meters

    6) Support ultra low illumination

    7) Support automatic electronic shutter function, adapting different monitoring environment

    8) IR distance : 25-30 meters

    9) Camera lens choices : 2.8/3.6mm/6mm/8mm



parameter:



MODEL

AP-FF002A131

Image Device

 AR0130+NVP2431

TV Format

PAL/NTSC

Number of Pixel

1280*960

Resolution

1000 TV lines

Sync.System

Internal

IR LED

2 IR ARRAY LED

IR Effective Range

UP to 40 meters

Minimum Illumination

Color 0.01Lux|Black-and-White 0.001 Lux

LEN

3.6/6/8/12MM LEN

IP Rating

IP66

Shutter

1/50(1/60) second to 1/10,000 seconds

Image Set

Saturation, brightness, contrast setting by OSD button menu

Smart Light Control

YES

Gain Control

Auto

White Balance

Auto(2500°K~9500°K)

Electronic Shutter

Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL)

1/60~-1/120,000 Sec(NTSC)

Day and Night Mode

Suppor IR-CUT

Video Output

1Vp-p Composite Output(75Ω/BNC)

Power Consumption

3w

Power Supply

DC12V

Operation Temp

-10°C~+60°C





Application Places:

AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision

HOW TO CHOOSE LENS:AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision

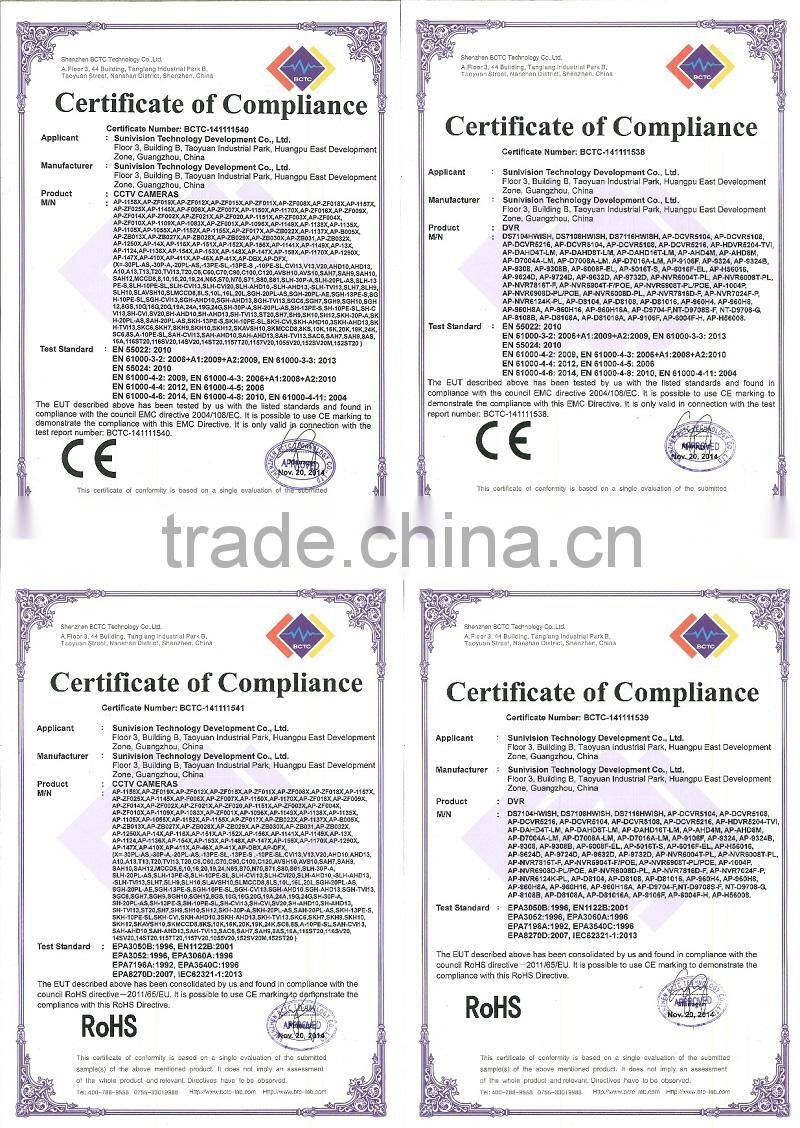

CETIFICATION:

AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision



exhibition

AHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night VisionAHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night VisionAHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night VisionAHD 1.0MP 720P HD CCTV Bullet Security Camera IR-CUT Outdoor 36 IR Night Vision





Our Services
Our Services:
1.Any inquiries will be replied within 24 hours

2.Professional manufacturer,welcome to visit sunivision website and factory.

3.OEM/ODM Avalable:

1).Slik print logo on camera

2).Customized camera housing

3).Customized Color box

4).Any your idea on camera we can help you to design and put it into production

4.High quality, fashion designs, resonable&competitive price, fast lead time.

5.After-Sale Service.

1).All products will have been strictly quality checked in factory before  packing

2).All products will be well packed before shipping

3).All our products have 2 years warranty, and we sure the product will be free from maintenance within warranty period.

6.Fast Delivery:

Sample order 2-7 days,4-12 days for bulk order.

7.Payment

You can pay for order via T/T, Western Union,Paypal.L/C

8.Shipping

We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
