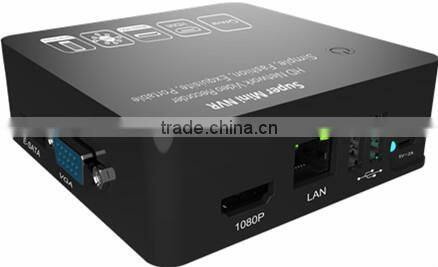

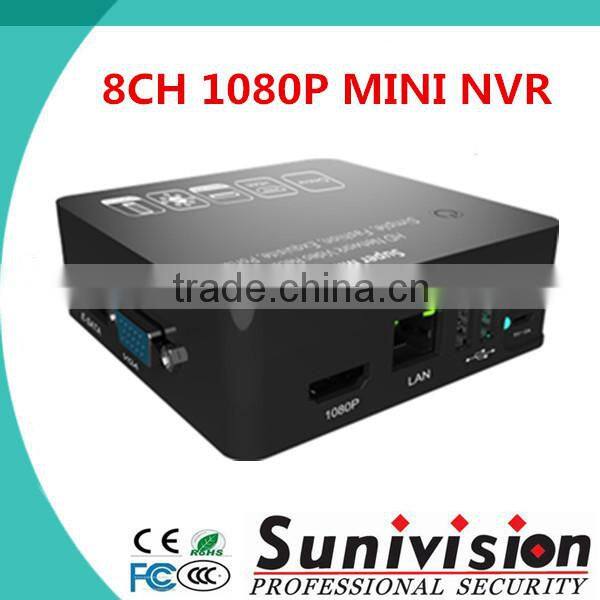

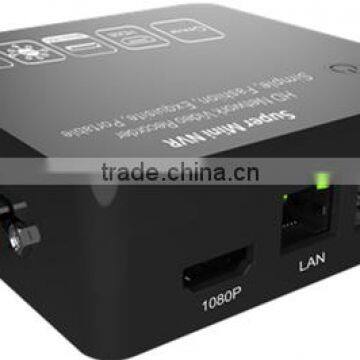

CCTV H.264 8ch 1080P Mini NVR Support 3G WIFI
1.Features:
(1) P2P cloud service, including cloud connecting, cloud monitoring,
cloud transmitting to access IPC and NVR at any time and any place
(2) Support Onvif protocol, support High profile S, High profile G,
compatible with different IP camera that based on Onvif, RTSP standard
(3) Support megapixel HD network video preview, storage and playback;
(4) Support search, playback and backup by event;
(5) Support all channel image display on one screen at same time,
support 4 channels’ image display by mainstream, and 4 channels playback;
(6) Support monitor PTZ on preview mode
(7) Offer CMS for free
2.Specification:
| Model | AP-DNVR008E | |
| System | ||
| Main Processor | HI3515A | |
| Operating System | Embedded LINUX operating system | |
| Video | ||
| Input | 8×(1280*720)+sub[640*360]+1Ref.+4Play 8CH 1.0MP IP Camera | |
| 8×(1280*960)+sub[640*480]+4Ref.+1Play 8CH 1.3MP IP Camera | ||
| 8×(1280*960)+sub[720*576]+2Ref.+1Play 8CH 1.3MP IP Camera | ||
| 8×(1920*1080)+sub[720*576]+1Ref.+1Play 8CH 2.0MP IP Camera | ||
| Output | 1ch VGA+1ch HDMI | |
| Alarm | ||
| Sensor Input | N/A | |
| Output | N/A | |
| Motion Detection | Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) | |
| Display | ||
| VGA | 1080P/720P/D1 | |
| HDMI | 1080P/720P/D1 | |
| Display Split | 9 Channel/4 Channel/1 Channel | |
| Digital Zoom | Yes | |
| Recording | ||
| Video Compression | H.264 High profile | |
| Resolution | 8CH, 8*1080P, 1*HDD(USB HDD, E-SATA HDD), USD*2, VGA*1, HDMI*1 | |
| Record Rate | PAL 625 line,50 f/s | |
| NTSC 525 line,60 f/s | ||
| Record Mode | Manual>Alarm>Video Detection>Continuous | |
| Playback & Backup | ||
| Local Sync Playback | 1/2/4channel playback simultaneously | |
| Remote Sync Playback | Yes | |
| Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | |
| Playback Functions | All,Regular,alarm,manual | |
| Backup Mode | Network download/Flash stick/USB/SATA | |
| Network | ||
| Interface | RJ-45 10M/100M | |
| Network Functions | Support DHCP / PPPOE / FTP / DNS / DDNS / NTP | |
| Onvif Version | Support Onvif | |
| Web Browser | IE&Firefox&Safari&Chrome | |
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 | |
| Cloud Support(P2P) | Yes | |
| Smart Phone | iPhone, iPad, Android, Android PAD | |
| Hard Disk Driver | ||
| Interface Type | Mobile HDD/E-SATA/USB Disk | |
| Capacity | Max 1 x 4TB | |
| General | ||
| USB Interface | 2* USB2.0 port | |
| Power Supply | 5V2A | |
| Working Environment | -10℃~+55℃ | |

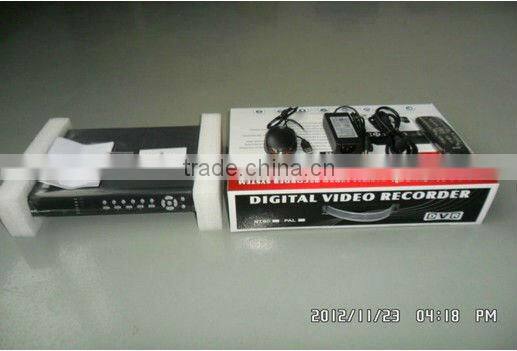

3.DVR Packing:
4.DVR Delivery:
5.DVR Power supply:
6.Company Introduction:
Sunivision has been a leading manufacturer of compact in CCTV Camera and DVR Line.Our customers have consistently evaluated our Security products to be of the highest quality and reliability, so that Sunivision now has markets in over 60 countries world wide.
Our design philosophy and development has been driven by our goal for versatile usage and installation easy.
7.Factory pictures:
8.Certificates:
A.Good Reply
Your inquiry related to our products or price will be replied within 24 hours.
B.OEM&ODM
Printing logoon the camera;
Customized camera housing;
Customized package box
Any your idea on camera we can help you to design and put it into products.
C.After sale service
Any technologic problems and quality problems,you can contact us by email or by phone.
We will do our best to help to sovle your any problems as soon as possible.
Free repair within two years,except huma
10.DVR Warranty:
1. All products have been strictly Quality Checked in house before packing
2. All products have been well packed before shipping.
3.Free repair within two years,except human factors.
11.Exhibitions:
YOUR SUCESS IS OUR BUSINESS!
