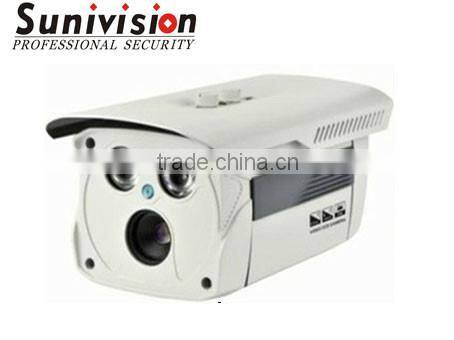

New Sunivision H264 4mp ip Camera

New Sunivision H264 4mp ip Camera thumbnail-1
New Sunivision H264 4mp ip Camera photo-1
US$ 60.00 - 60.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
sunivision
Model Number:
AP-DF003-40P
Contact Supplier Request Quote Chat Now
Sunivision Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name sunivision
Model Number AP-DF003-40P
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
Product Description

1. Color Waterproof 1.0/1.3/2.0/3.0/5.0MP OPTION IP CAMERA
2.CS 4mm (6/8/12/16mm optional), 2PCS IR ARRAY LED FOR   40METERS,                                                                                                                                                                                                                                                                                                                                                         3. Support Multi-Screen software and CMS ,Support P2P
4. Support iPhone/iPad/Android Mobile
5. Support Protocol: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP,  POP3,   NTP, IPSec UpnP, RTP, and RTCP
6. ONVIF, IP66
 New sunivision H264 4mp ip camera

<

Model NO. AP-DF003-40P
Network Camera
Image Sensor OV4689
Main processor S2L-55M
Resolution 4MP
Effective Pixels 2592(H)*1520(V)
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
Sync System Internal
Usable Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Lens
Focus Length 4mm (6/8/12mm optional)
Focus Control Manual
Lens Type Manual
Pixels 5M Pixels
Night Vision
Infrared LED 2Array
Infrared Distance 40m
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
ONVIF Support ONVIF 2.0
P2P YES, Support QR Code
POE Optional, Support IEEE 802.3af
WIFI N/A
Video Delay 0.3S (Within the Lan)
Main Stream 2592*1520
Sub Stream 704*576
704*576
IE Brower IE6-11
Smart Phone iPhone, iPad, Android, Android Pad
Camera Features
Day/Night Color/ B&W (IR-CUT )
Compression H.265/H.264/JPEG,Support record AVI format.
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)
Motion Detection Support
Privacy Masking 3 Rectangular Zone
WDR YES
Recording Mode NVR/NAS/CMS/Web
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian
General
Housing Weatherproof , IP66
Anti-cut Bracket YES,
IR Cut Filter YES
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 1000mA
Dimension 260(W)x98(H)x95(D)mm
Weight 1.7KG



Functions
Applications

Application:



Certifications
Certifications

Sunivision has CE & ROHS for both DVR & CCTV CAMERAS.
