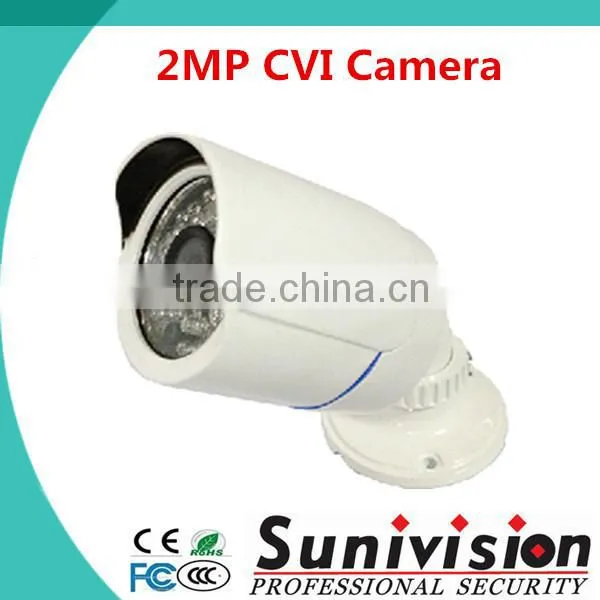

full hd oem cctv security 2MP 1080P CVI camera
Features:
1. 1/2.8”SONY CMOS(IMX322LQJ) 1080P(2Megapixel CMOS)
2. HDCVI video output,Over 500m via 75-3 coaxial cable,High speed, long distance real-time transmission
3. BNC HDCVI high definition video output, Image transmission with Hi-Fi,low delaying
4. Support BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
5. Double filter Switching day&night,,with day/night mornitoring
Specifications:
| Model NO. | AP-ZF034V20 | AP-ZF034V21 |
| HD CVI Camera | ||
| Image Sensor | PO3100K | 1/2.8”SONY CMOS(IMX322LQJ) |
| DSP | DH9801 | DH9801 |
| Image Resolution | PAL: 25fps@720P(1280×720); NTSC: 30fps@720P(1280×720) | |
| Effective Pixels | 1280(H)×720(V) , 1.3MP | 1280(H)*1080(V) , 2MP |
| TV System | PAL/NTSC | |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P | |
| Sync System | Internal | |
| Usable Illumination | 0.01Lux | 0.01Lux |
| S/N Ratio | ≥50dB | |
| Scanning System | Progressive Scan | |
| Video Output Mode |
1-channel BNC HDCVI high definition video output |
1-channel BNC HDCVI high definition video output |
| Transmission Distance | over 500m via 75-3 coaxial cable | |
| Lens | ||
| Focus Length | Board Lens CS 4/6/8/12/16mm lens; | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Pixels | 2M Pixels | |
| Auto Iri Support | No | |
| Night vision | ||
| Infrared LED | 36 IR LEDS | |
| Infrared Distance | 30M | |
| IR Status | Under 10 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Camera Features | ||
| Day/Night | Auto (ICR) / Color / B&W | Auto (ICR) / Color / B&W |
| Day/Night | Auto/Color/B&W/EXTERN | |
| OSD Menu Language | NO | YES(SETTING ON DVR) |
| White Balance | Auto/Auto ext/Pushing/Manual | |
| AGC | AGC | |
| BLC | Off/BLC | |
| DNR(Digit Noise Reduction) | Off/Low/Middle/High | |
| Motion Detection | Off/on | |
| OSD Support | NO | YES(SETTING ON DVR) |
| Privacy Mask | NO | Off/On |
| Defgo | NO | Off/On |
| Shading | NO | Off/On |
| General | ||
| Vandalproof Housing | YES, IP66 | |
| Lens Angle Adjustment | YES | |
| Dual Voltage | NO | |
| IR Cut Filter | YES | |
| Heater | NO | |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 500mA | |
| Dimension | 810x360x360mm/QTY: 10pcs/ctn | |
| Weight | 1040g | |
The cameras detail pictures:
Our lens VS common lens :
Our white light balance effect VS others:
Our camera with IR-CUT VS others:
Our good night vision effect VS others:
Our WDR function VS others:
Our camera with good resolution VS others:
Our camera with low illuminationVS others:
Our camera has Waterproof IP66:
Our production procedure:
Other products:
certificate:
Exhibition:
After-Sale Services:
All our products have 2 year warranty, And we sure the product will be free from maintenance within warranty period.
Faster delivery:
Within 3 days for sample after payment cleared.
Within 3-7 days for medium & large order after payment cleared.
Remark:
1, can design and print packing box according to your requirements.
2, can put your logo & model No. & series No. on the cameras and packing Box
Welcome for sample testing !
