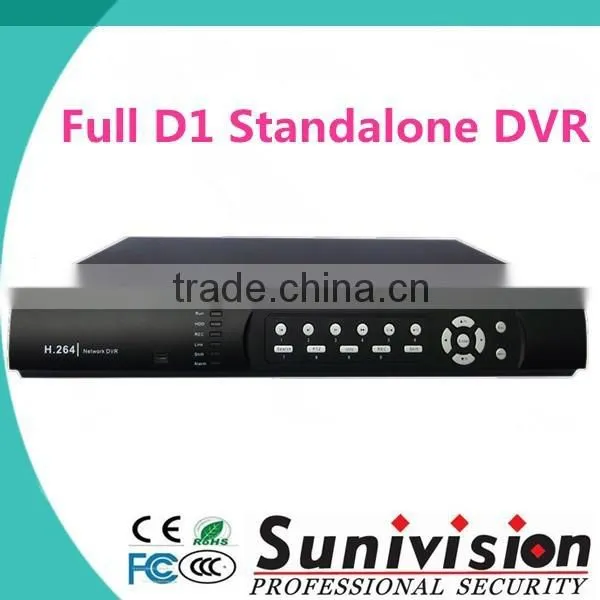

China manufacturer! 16ch Reat-time Recording analog DVR
Features:
Intelligent analysis,including perimeter detection (warning line, warning area), goods nursing (lost, left), video diagnosis and other core intelligent analysis capabilities, alarm linkage is also supported to ensure better monitoring.
DVR/HVR/NVR 3 in 1,multi-mode input,support 4ch D1/960H,8ch HD1/D1,2ch D1+14ch CIF analog video encode,analog+high-definition video input, high-definition network video input.
With XM cloud service, easy to achieve a variety of network penetration ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Support various mobile monitoring(iPhone,Windows Mobile, BlackBerry,Symbian, Android),support 3G dialing,WIFI module expansion.
Support multiple web browsers(IE,Chrome,Firefox,Safari)
Support two USB2.0 ports, to achieve USB mouse, backup, burn, upgrades and other operations stably.
Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Support TV,VGA and HDMI output simultaneously,VGA,HDMI HD 1080P output,overturn traditional monitoring thoroughly.
Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes.
Support more than 20 languages(English,Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.),no nation boundaries.
Display flexibly, free to replace boot interface.
|
model |
AP-9106F |
AP-D81016 |
system |
main processor |
Industrial embedded microcontroller Huawei Hass platform |
|
operating system |
embedded linux |
||
system resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
||
interface |
user interface |
support 16-bit true color graphical menu interface and mouse operation |
|
preview screen |
1/4/8/9/16 |
||
video |
vdieo standards |
PAL(625line,50f/s);NTSC(525line,60f/s) |
|
vdieo compression |
H.264(High Profile);JPEG capture |
||
display quality |
Monitor:D1;VGA:HD;HDMI:HD |
||
play quality |
Up to 1080P(under analog mode) |
||
D1/HD1/CIF | |||
encode capacity |
16ch CIF/ 2ch D1+14ch CIF Real-time |
4ch D1+12ch CIF /16ch HD1 /16ch D1 Real-time |
|
decode capacity |
16ch CIF/ 2ch D1+6ch CIF Real-time |
2ch D1+6ch CIF /16ch HD1 /1ch D1 Real-time |
|
hybrid mode |
Only analog(DVR): 2*D1+14*CIF /16*CIF(capture) analog+IP(HVR): 2 *D1+(1*1080P+1*720P) Only IP(NVR): 9*D1 /8*960H /4*720P /2*1080P /1*720P+7*D1 /1*1080P+1*720P+2*D1 |
Only analog(DVR): 16*HD1 /4*D1 +12*CIF(capture)/16*D1 analog+IP(HVR): 4*D1+(1*1080P + 3*720P) Only IP(NVR): 16*D1 /2*1080P +2*720P /1*1080P+1*720P +6*960H /8*720P |
|
motion detect |
Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels) |
||
audio |
audio compression |
G.711A |
|
bidrectional talk |
supported |
||
Record&playback |
record mode |
manual>alarm>motion detection>timing |
|
local playback |
1~16ch simultaneous playback |
||
|
Under analog mode 16*D1,up to 1 ch playback(1*D1@25fps) | |||
search mode |
Time/calendar/event/channel search |
||
Storage&backup |
space occupation |
video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel,960H 12~20G/ day*channel; |
|
record storage |
HDD&Network |
||
backup mode |
Network backup,USB HDD, USB writer,SATA writer |
||
interface |
video input |
16ch BNC |
|
video output |
1ch BNC,1ch VGA,1ch HDMI |
||
audio input |
2ch RCA |
||
audio output |
1ch RCA |
||
alarm input |
no |
||
alarm output |
no |
||
net interface |
RJ45 10M/100M |
||
PTZ control |
one RS485,support multiple PTZ protocols |
||
usb |
2 USB ports |
||
hard disk |
One SATA port,(max. 4T per one) |
||
Wireless port |
3G,WIFI(expand via USB) |
||
Others |
Power supply |
12V/3A |
|
dimension |
325 x 48 x 255mm |
||
1.Packaging
2.Shipping
DHL,EMS,FEDEX,TNT,UPS,AIR,OCEAN
Company Pictures:
CCTV camera Exhibition:
CCTV Camera Certificate:
The greatest risk in life is to risk nothing.
Q.May I print our company logo on package box and camera and DVR?A:Of course,buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow,L/C is welcome.
Q.What is Minimum Order Quantity?A:Minimum Order Quantity is 50pcs,but sample order is welcome.
2.Professional manufacturer,welcome to visit sunivision website and factory.
3.OEM/ODM Avalable:
1).Slik print logo on camera
2).Customized camera housing
3).Customized Color box
4).Any your idea on camera we can help you to design and put it into production
4.High quality, fashion designs, resonable&competitive price, fast lead time.
5.After-Sale Service.
1).All products will have been strictly quality checked in factory before packing
2).All products will be well packed before shipping
3).All our products have 2 years warranty, and we sure the product will be free from maintenance within warranty period.
6.Fast Delivery:
Sample order 2-7 days,4-12 days for bulk order.
7.Payment
You can pay for order via T/T, Western Union,Paypal.L/C
8.Shipping
We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
You aslo can choose you own shipping forwarder
Welcome to contact us anytime,we will reply to you in 24 hours!
