CCTV 4ch P2P H.264 Mini DVR
1.Features:
2.Specification:
| Model | AP-D7804R-EL |
| System | |
| Main Processor | High performance embedded microprocessor HI3515A |
| Operating System | Embedded LINUX |
| Video | |
| Input | 4CH* D1/4CH*960H |
| Output | 1 VGA, 1 HDMI |
| Alarm | |
| Sensor Input | N/A |
| Output | N/A |
| Motion Detection | N/A |
| Display | |
| VGA | Resolution: 1024×768,1280×720,1280×1024 |
| HDMI | Resolution: 1080P(1920×1080) 720P(1280×720) |
| Display Split | 4 / 1Channel |
| Digital Zoom | NO |
| OSD | Camera title, Time, Video loss, Recording, Motion Detection |
| Recording | |
| Video Compression | H.264 |
| Resolution | 1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480) |
| Record Rate | PAL:200fps |
| NTSC:240fps | |
| Record Mode | Timer Motion Detection |
| Playback & Backup | |
| Local Sync Playback | 1-8ch Multi-channel Simultaneously playback |
| Remote Sync Playback | NO |
| Search Mode | ALL, Channel, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play |
| Backup Mode | USB Device |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | HTTP, IPv4, TCP/IP, DNS, DHCP |
| Onvif Version | Support Onvif 2.4 |
| Web Browser | IE6-11 |
| CMS Software | Support Windows XP / Windows Vista / Windows 7/ Windows 8 |
| Cloud Support(P2P) | Yes |
| Smart Phone | iPhone, iPad, Android, Android PAD |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to4TB capacity |
| General | |
| Language | English,Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish |
USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | DC12V/2A |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 255* 225* 45mm |
| Weight | 1.0KG (without HDD) |

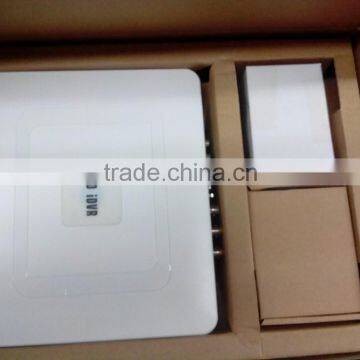

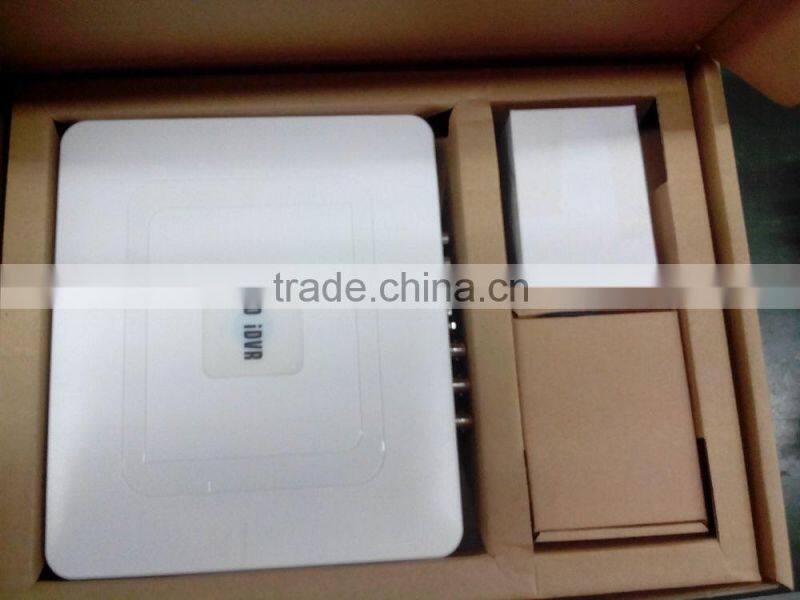

3.DVR Packing:
4.DVR Delivery:
5.DVR Power supply:
6.Company Introduction:
Sunivision has been a leading manufacturer of compact in CCTV Camera and DVR Line.Our customers have consistently evaluated our Security products to be of the highest quality and reliability, so that Sunivision now has markets in over 60 countries world wide.
Our design philosophy and development has been driven by our goal for versatile usage and installation easy.
7.Factory pictures:
8.Certificates:
A.Good Reply
Your inquiry related to our products or price will be replied within 24 hours.
B.OEM&ODM
Printing logoon the camera;
Customized camera housing;
Customized package box
Any your idea on camera we can help you to design and put it into products.
C.After sale service
Any technologic problems and quality problems,you can contact us by email or by phone.
We will do our best to help to sovle your any problems as soon as possible.
Free repair within two years,except huma
10.DVR Warranty:
1. All products have been strictly Quality Checked in house before packing
2. All products have been well packed before shipping.
3.Free repair within two years,except human factors.
11.Exhibitions:
YOUR SUCESS IS OUR BUSINESS!
