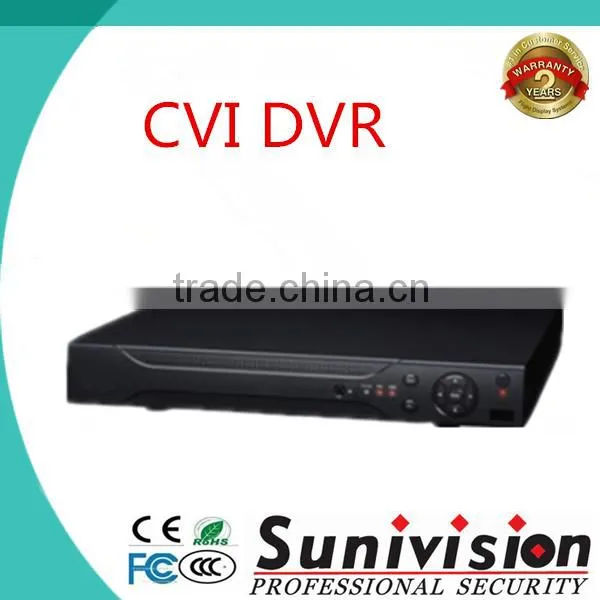

8CH 1080P HD CVI DVR H.264 CVR for Full HD CVI camera
Specifications
| Model | AP-DCVR5104 | AP-DCVR5108 | |||
| picture |
|
||||
| System | |||||
| Main Processor | Embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video | |||||
| Input | 4 channel, BNC | 8 channel, BNC | |||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||||
| Audio | |||||
| Input | Default 1 channel, BNC | ||||
| Output | 1 channel,BNC | ||||
| Two-way Talk | Reuse audio input/output channel 1 | ||||
| Display | |||||
| Interface | 1 HDMI, 1 VGA | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | ||||
| Display Split | 1/4 | 1/4/8/9 | |||
| Privacy Masking | 4 rectangular zones (each camera) | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Video/Audio Compression | H.264 / G.711 | ||||
| Resolution | 1080P(1920×1080/1920×900)/(720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120) | ||||
| Record Rate | Main Stream: | 1080P@ 12fps/ch; 720P@ 30fps/ch | |||
| Extra Stream | CIF/QCIF(1~25/30fps) | ||||
| Bit Rate | 48~8192Kb/s | ||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection&Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4 | 1/4/8 | |||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device / Network | ||||
| Network | |||||
| Ethernet | RJ-45 port (10/100M/1000M) | ||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Storage | |||||
| Internal HDD | 1 SATA port, up to 4TB | ||||
| Auxiliary Interface | |||||
| USB Interface | 2 ports (1 Rear), USB2.0 | ||||
| RS485 | 1 port, For PTZ control | ||||
| General | |||||
| Power Supply | DC12V/2A | ||||
| Power Consumption | 15W(without HDD) | ||||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||||
| Dimension(W×D×H) | 255mmx225mmx40mm | ||||
| Weight | 2KG(without HDD) | ||||
1.Packaging
2.Shipping
DHL,EMS,FEDEX,TNT,UPS,AIR,OCEAN
Company Pictures:
CCTV camera Exhibition:
CCTV Camera Certificate:
The greatest risk in life is to risk nothing.
Q.May I print our company logo on package box and camera and DVR?A:Of course,buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow,L/C is welcome.
Q.What is Minimum Order Quantity?A:Minimum Order Quantity is 50pcs,but sample order is welcome.
2.Professional manufacturer,welcome to visit sunivision website and factory.
3.OEM/ODM Avalable:
1).Slik print logo on camera
2).Customized camera housing
3).Customized Color box
4).Any your idea on camera we can help you to design and put it into production
4.High quality, fashion designs, resonable&competitive price, fast lead time.
5.After-Sale Service.
1).All products will have been strictly quality checked in factory before packing
2).All products will be well packed before shipping
3).All our products have 2 years warranty, and we sure the product will be free from maintenance within warranty period.
6.Fast Delivery:
Sample order 2-7 days,4-12 days for bulk order.
7.Payment
You can pay for order via T/T, Western Union,Paypal.L/C
8.Shipping
We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
You aslo can choose you own shipping forwarder
Welcome to contact us anytime,we will reply to you in 24 hours!
