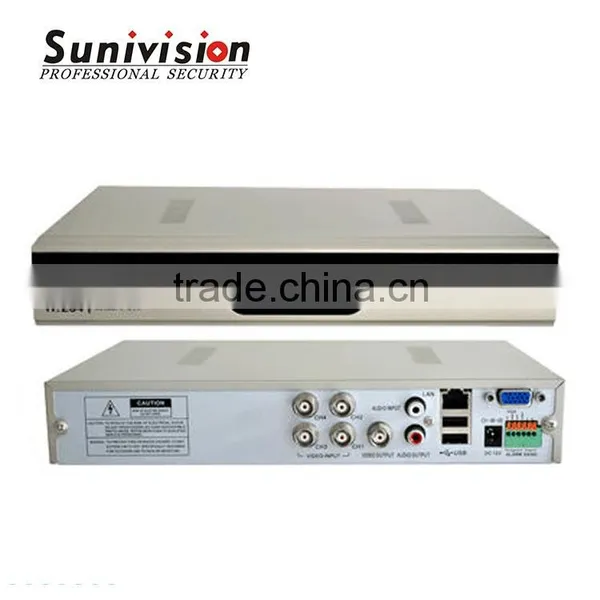

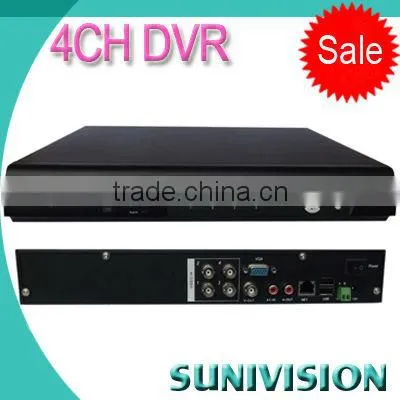

mini dvr av input
Features
1.H.264 video compression
2. 4-channel usb dvr
3.support multiplex
4.support D1,HD1.CIF recording resolutions,4CH realtime D1 record
5.support PTZ control via built-in RS-485 port
6. Support 26 languages
Specifications
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input(BNC) |
4CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output(BNC) |
1CH BNC output |
Audio Input/Output |
1CH audio input,1CH audio output(RCA) |
Maximum Recording Rate(CIF/HD1/D1) |
CIF:352×240 pixels with 480 IPS /352×288 pixels with 400 IPS HD1:704×240 pixels with 224 IPS /704×288 pixels with 192 IPS D1:704×480 pixels with 112 IPS /704×576 pixels with 96 IPS |
Image Quality Setting |
Supper Best,Well,Good,Medium,Normal and Bad |
Hard Disk Storage |
Support 2 SATA HDD,each max upto 4TB |
Alarm Input/Output |
No |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion |
Playback Mode |
Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.
|
Backup Device |
USB flash disk/Network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,PPPOE ,DDNS and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobilephone View |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES,built-in RS-485 port |
USB Mouse |
YES |
Power Source |
DC 12V |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
|
After-Sale Services:
All our products have 2 year warranty,
And we sure the product will be free from maintenance within warranty period.
Faster delivery:
Within 5 days for sample after payment cleared.
Within 5-10 days for medium & large order after payment cleared.
Remark:
1, can design and print packing box according to your requirements.
2, can put your logo & model No. & series No. on the cameras and packing Box

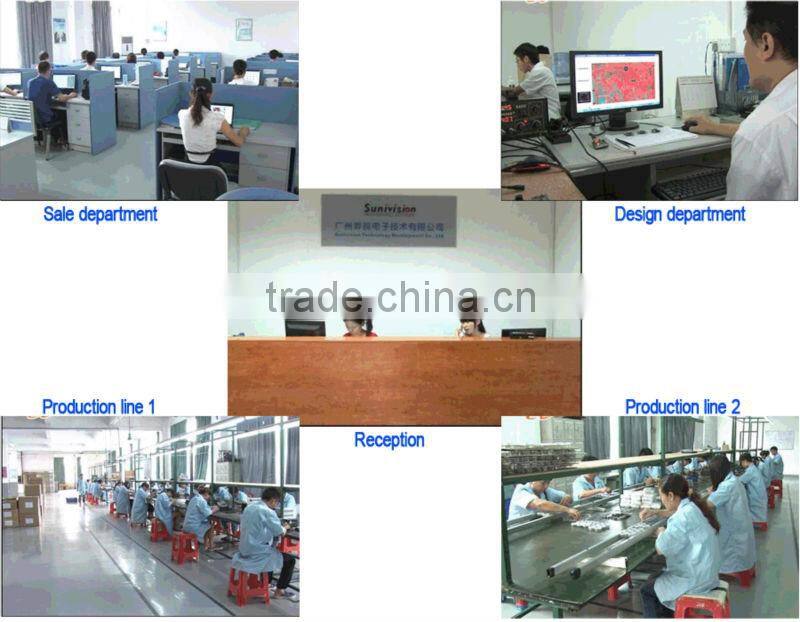

Factory pictures
c...
