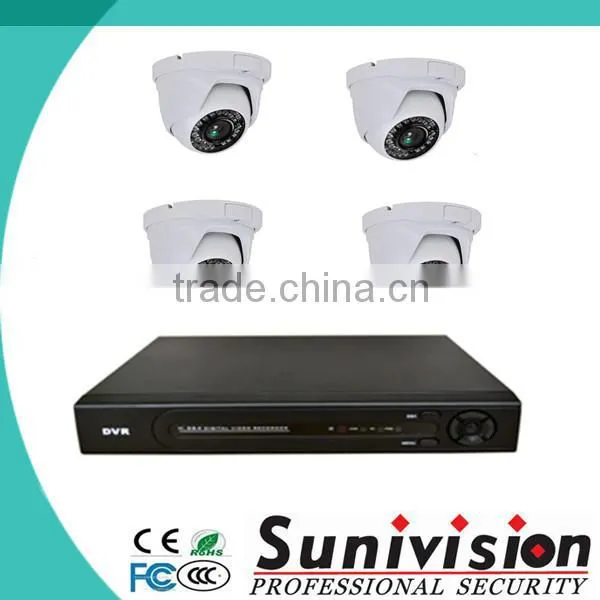

h.264 4ch dvr combo cctv camera kit which can support RS-485 port

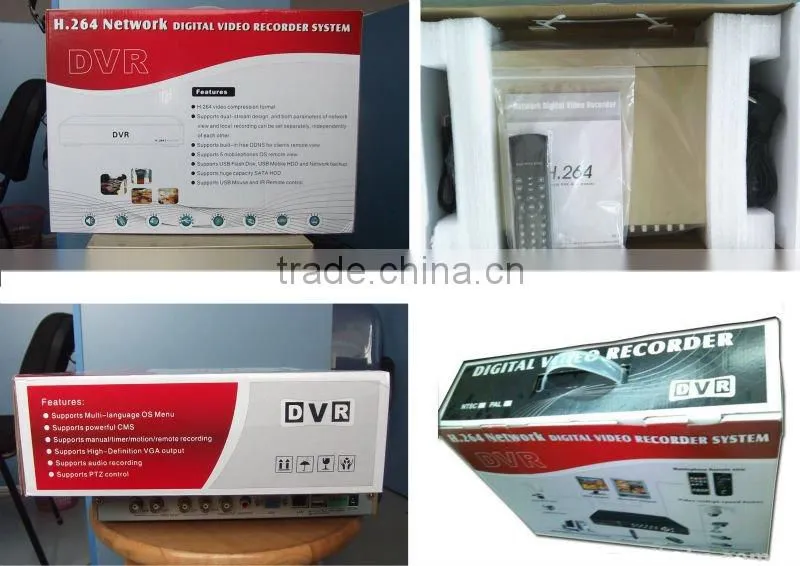

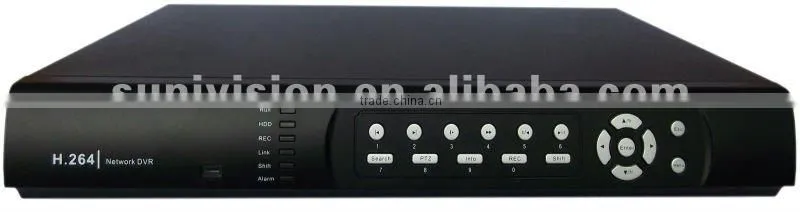

Product Pictures:
Images:

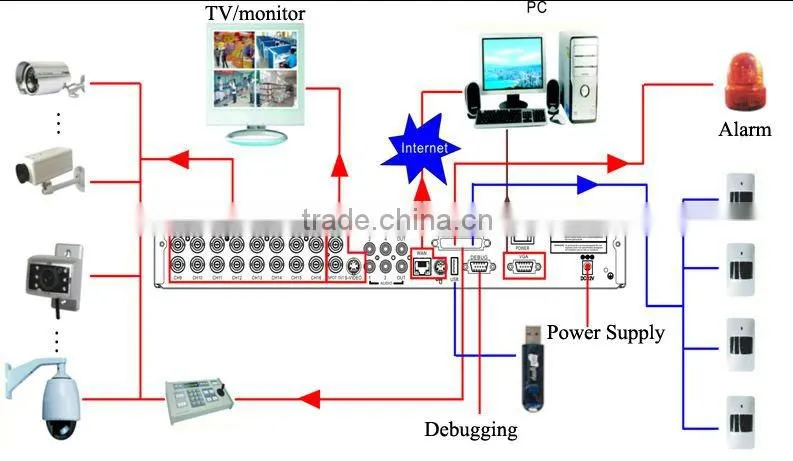

How to connect a security system?
Main Feature:

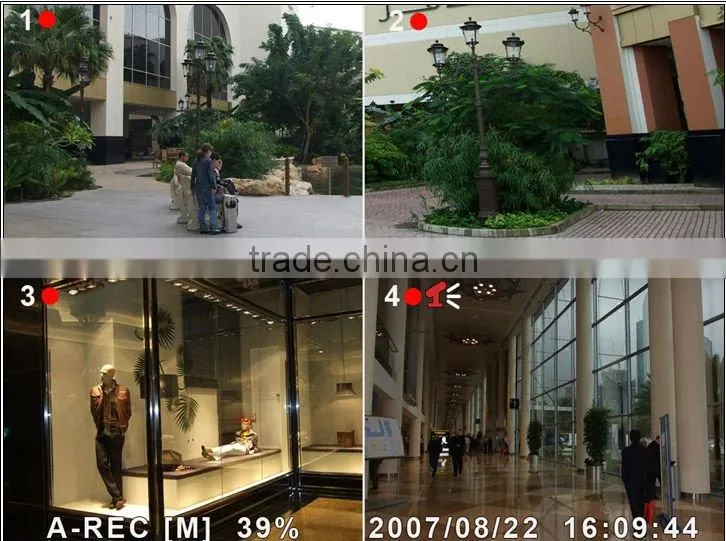

Support 4ch Full D1 realtime recording resolution,ahead to D1 High-Definition period.
•Dual-stream design,network remote view effects and local recording effects parameters
•Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
•Supports Built-in free DDNS domain name
•Support Mobilephone remote view by Symbia S60V3/V5;WindowsMobile; Android system;Iphone;Blackberry.
Specification:
| Video Compression Format | H.264 |
| Video System | NTSC / PAL |

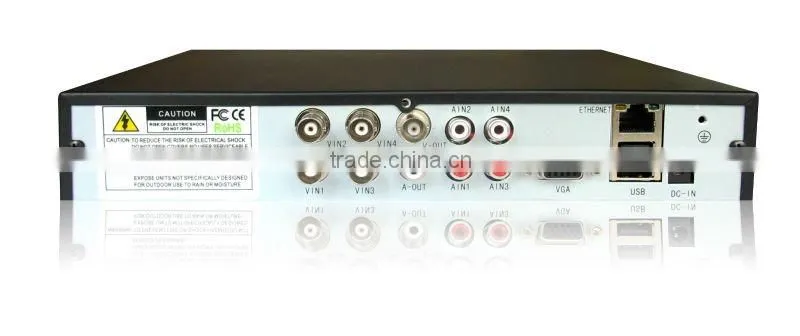

| Video Input/Output(BNC) | 4CH BNC input/1CH BNC output |
| Audio Input/Output | 1CH audio input,1CH audio output(RCA) |
| Maximum Recording Rate (each channel support at D1 real-time) |
D1:704*480 pixels with 120IPS <NTSC> /704*576 pixels with 100 IPS <PAL> HD1:704*240 pixels with 120 IPS <NTSC> /704*288 pixels with 100 IPS <PAL> CIF:352*240 pixels with 120 IPS <NTSC> /352*288 pixels with 100 IPS <PAL> QCIF:176*120 pixels with 120 IPS <NTSC> /176*144 pixels with 100 IPS <PAL> |
| Image Quality Setting | Supper Best,Well,Good,Medium,Normal and Bad |
| Hard Disk Storage | Support one SATA HDD, unlimited for the capacity |
| Alarm Input/Output | No |
| Multiplex Operation | Live display/record/playback/backup/network transmit |
| Recording Mode | Auto/Manual/Timer/Motion |
| Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set. |
| Backup Device | USB flash disk/USB remove HDD/Network/USB DVD-RW |
| Pre-alarm Recording | Recording for 10 seconds before alarming |
| Network Protocol | TCP/IP,PPPOE ,DDNS ,FTP,UPNP,ARSP and NTP |
| Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
| VGA Interface | YES ,support VGA and BNC can work at the same time |
| Log record function | YES |
| Video Loss Detection | YES |
| Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
| PTZ Control | YES , built-in RS485 port,support 17 kinds protocols |
| IR Remote control/USB Mouse | YES |
| Power Source | DC 12V |
More Hot Sale Products:
Application:
Sunivision has CE & ROHS for both DVR & CCTV CAMERAS.
Sunivision Technology Development Co.,Ltd. is a leading and professional CCTV manufacturer located in Guangzhou,
China. Sunivision was established in 2008 ,with 2000 SQUARE METER factory and 150 employees including 5 R&D
engineers and 10 person for quality control,15% of the Year Sales Volume will be put into R&D,2-5 New Products will
be come out every month!
Sunivision specializes in researching, producing and exporting CCTV Analog Cameras, AHD Camera,
Digital camera(IP Camera,CVI Camera etc.)
and Stand-alone DVRs,CVI DVR ,AHD DVR,NVR, providing the most stable digital security solutions.
Teamwork Shows:
A. Prompt Reply
B. OEM&ODM:
- Printing logoon the camera;
- Customized camera housing;
- Customized package box
C. Fast Delivery:
2-7 working days for sample after payment cleared.
4-12 working days for medium & large order after payment cleared.
D. Payment
You can pay for order via T/T, Western Union, Paypal,L/C
E. Shipping
We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
You aslo can choose you own shipping forwarder
F. After sale service:
- Any technologic problems and quality problems,you can contact us by email or by phone.
- We will do our best to help to sovle your any problems as soon as possible.
- Free repair within two years,except huma
G. Warranty:
- Free repair within two years,except human factors.
Q.May I print our company logo on package box and camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow,L/C is welcome.
Q.What is Minimum Order Quantity?
A:Minimum Order Quantity is 50pcs,but sample order is welcome.
