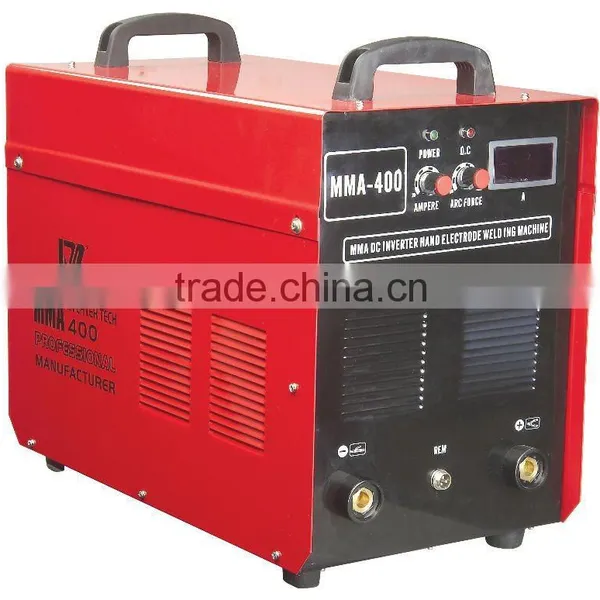

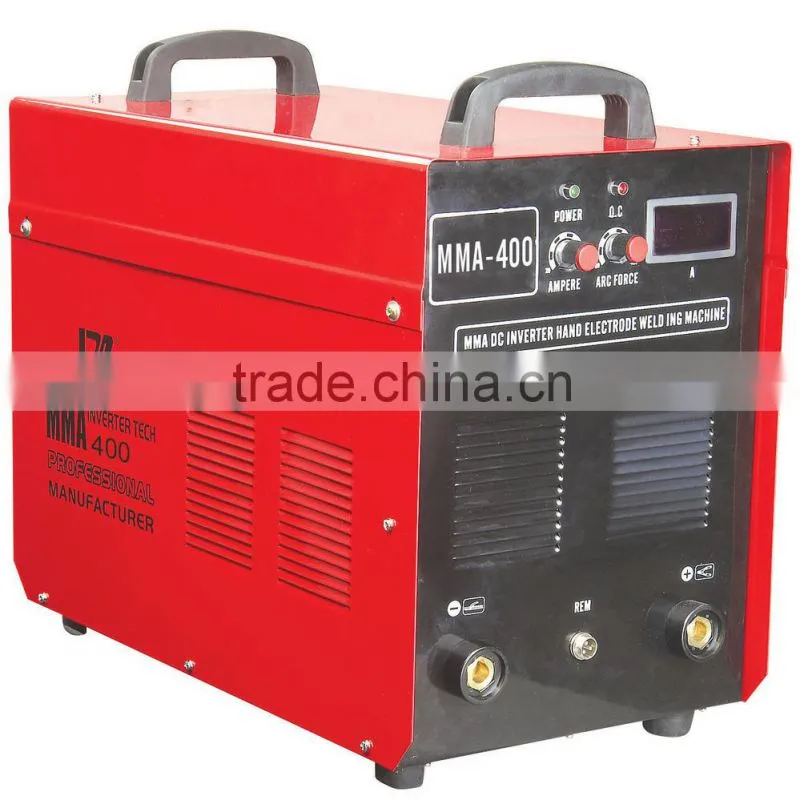

400 Amp Mma Inverter Arc Welding Machine
US$ 240 - 245
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KENMAI
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Zhejiang, China
Brand Name
KENMAI
Model Number
MMA-400
Arc Current
20-400
Pulse Frequency
50/60
Pilot Arc Current
20-400
Rated Duty Cycle
60%
Dimensions
590*330*515(mm)
Usage
MMA DC hand electrode welding machine
Voltage
230v
Certification
CE, ROHS
Warranty
one year
Specifications
Inverter Welding Machine1.DC hand electrode
2.Use MOS/IGBT technnology
3.Less splash, good weld appearance, sound-proof.
MMA-400 Inverter Welding Machine
Technical Specification
| model specification |
MMA-400 |
| Rated Input Voltage(V) | 230 |
| Input Capacity(KVA) | 21.0 |
| Frequency(Hz) | 50/60 |
| No-load Voltage(V) | 62 |
| Current Range(A) | 20-400 |
| Output Voltage(V) | 36.0 |
| Rated Duty Cycle(%) | 60 |
| Efficiency(%) | 85 |
| Applied Welding Rod(mm) | 2.5-5.0 |
| Class of Insulation | B |
| Case Protection Degree | IP21 |
| Net Weight(kg) | 24.0 |
| Dimension(mm) | 590*330*515 |
Main Features of MMA-400
1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Strong welding permeability, less splash, good weld appearance, sound-proof.
5.Suit for all kinds of basic and acid electrodes.
6.Be able to long-distance weld all kinds of material, such as stainless steel, steel, tungsten, titanium, nickel and other alloy material.
7.With complete accessories.
8.Carton box/BMC.
