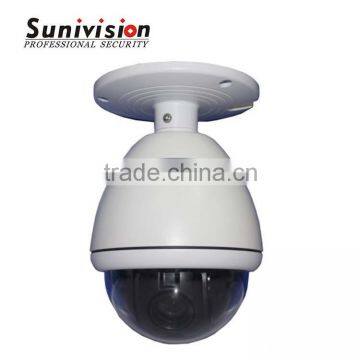

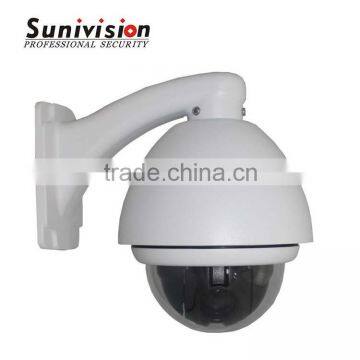

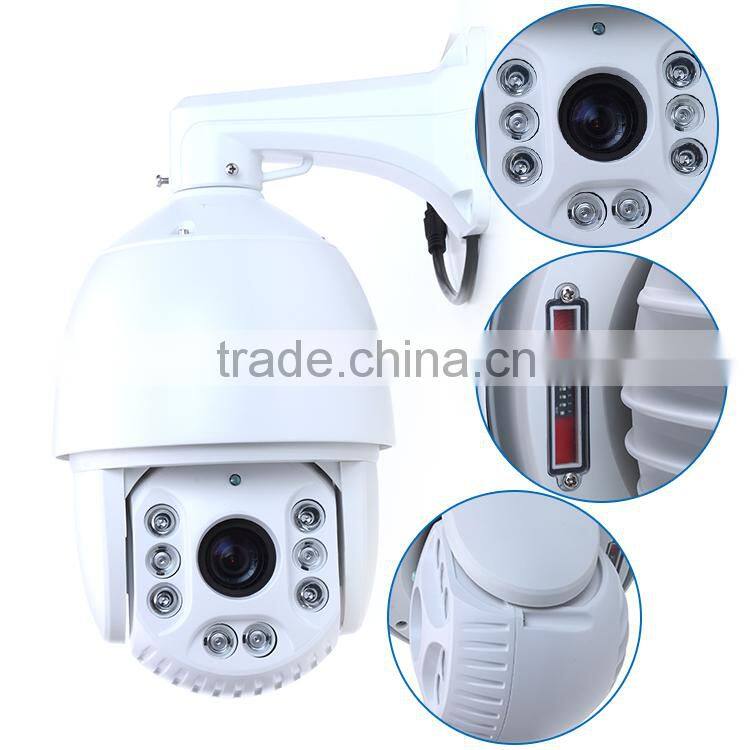

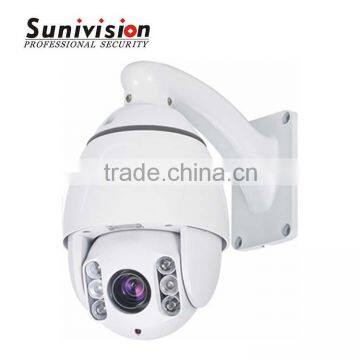

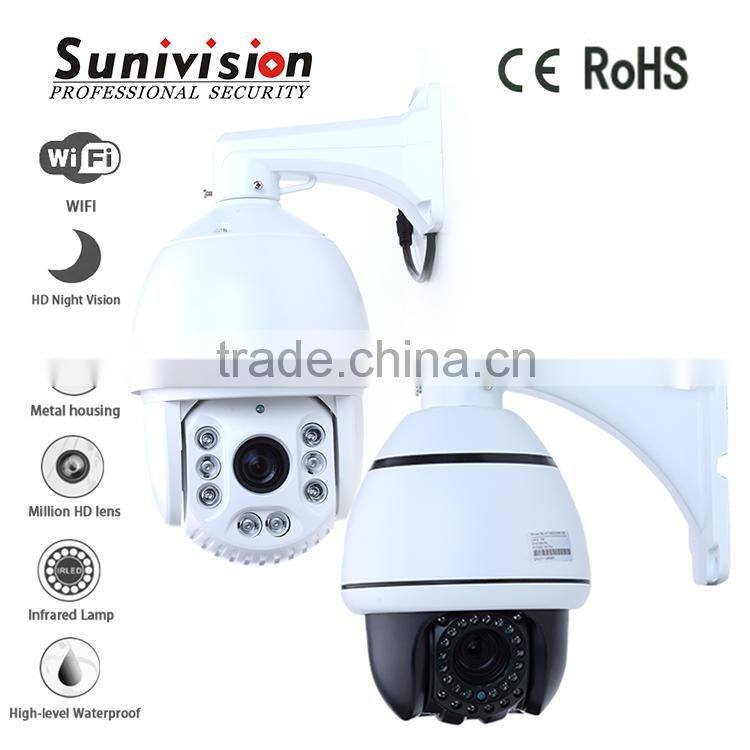

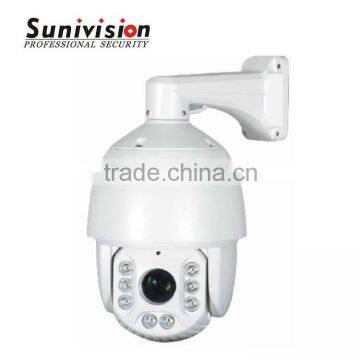

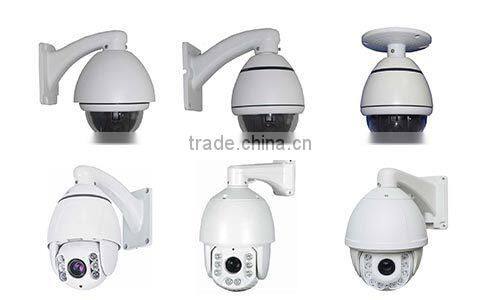

18X Optical zoom 1080p 1.3mp dome waterproof p2p 360 degree outdoor camera ip cctv camera
Features:
- new design of structure Mantle whirling with cassette mechanism, firstly using multi-bearing disk whirling structure.
- Infrared lights whirling with Pan/Tile, taking full advantage of light source and making camera view clear.
- Particular light insulation system, no glistening at night.
- Single integrative camera head board, no reflected image of camera itself.
- Closing ball mantle excepting for camera chain, making videography secluded and looking as slinky.
- Many optional cameras, including integrated cameras or cameras with variable frames.
- Convenient installation and use, same use method with common Globse Pan/Tile
- Infrared lights use infrared LED wafer with super power and super brightness
- LED power adjusts itself according to ray brightness, which increases useful time.
- The infrared lamp panel has the function of current limiting and voltage regulation, which makes the infrared lights working time and life long.
- Automatic temperature control, designing for completely dark environment
- Suiting wall mounting or lifting, convenient installation and dismantlement, aesthetic appearance, etc.
- Air cooling system, sandwich structure for heat output
- Micro-adjusting system of Infrared lights shining angle, which is able to adjust the light field in long distance ideography.
- Double deck sun-proof structure,suiting south or north climate and environment.
- Metal cassette mechanism, firm and exquisite structure
- Acrylic optical ball cover,good nature of light transmission,no distortion
- Make in Factory
- 27X optical and 10X digital 650TVL High Speed Dome PTZ Cameras
Specification:
Power supply |
DC12(4A) |
Operation temperature |
0°C—49°C(without temperature control), - |
Operation humidity |
90%RH |
Communication mode |
RS485 Bus |
Communication protocal |
Support multi-protocol |
Baud Rate |
1200bps,2400bps,4800bps,9600bps,adjustable |
Preset positions |
64 |
Tour |
4 group, 6 preset position per group (Max 16 preset position) |
Rotation angle |
Horizontal 360°,Vertical 0°-90° |
Rotation speed |
Horizontal / Vertical(6º/S,9º/S,12º/S,15º/S adjustable) |
Preset stay time |
1-255 sec seletable |
Auto scan |
Support right and left scan, 360°scan |
Timer position |
1 |
CCD |
1/4” SONY |
Resolution |
650TVL |
Sensitivity |
0.02Lux |
Signal-to-Noise |
> 48 db |
Video Output |
1.0 Vp-p/75Ω |
White Balance |
Auto / Manual |
Camera Lens |
22x optical zoom, 10x digital zoom |
Trouble shooting:
Problems |
Possible Causes |
Remedies |
No action when power is switched on |
Wrong connection of the power wire |
Correct |
Transformer damaged |
Replace |
|
Wrong power |
Replace |
|
Bad connection of the power wire |
Exclude |
|
Normal self-check but out of control |
Baud rate ,Dome ID setup is wrong |
Reset Baud rate and dome ID |
Protocol setup is wrong |
Correct |
|
RS485 bus bad connection |
Check the RS485 connection |
|
Abnormal self-check. Images with motor noise |
Mechanical failure |
Repair |
Camera inclined |
Reinstall |
|
Power supply not enough |
Replace, and put the power supply near to dome |
|
Vague image |
Bad connection of the video |
Press to connect well |
Power supply not enough |
Replace |
|
Dome camera out of control or delay |
Power supply of dome not enough |
Replace, and put the power supply near to dome |
Check the resistance of farest dome |
setting matching resistance |
|
Long Distance and 485 signal attenuation |
Replace control cable |
|
485 converter driving force is not enough |
Replace active code converter |
