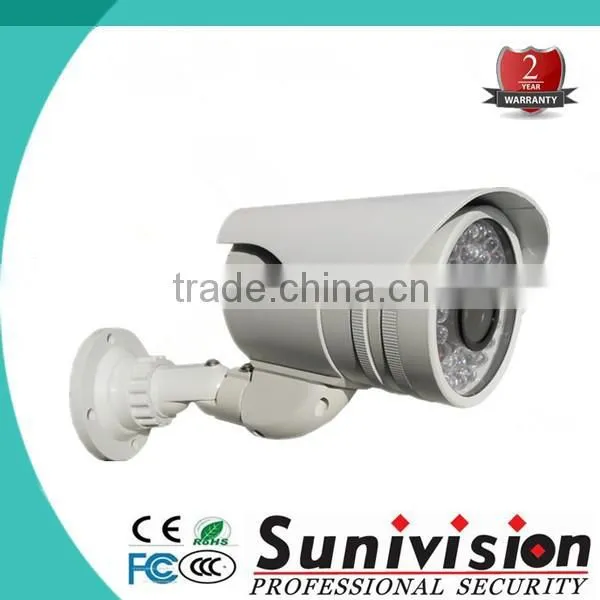

2016 New Design !!! Color CCD Waterproof Camera HD TVI Camera 1.3mp

Name: 2016 New Design !!! Color CCD Waterproof Camera HD TVI Camera 1.3mp
Brand: SUNIVISION(OEM)
SKU: 110469159

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SUNIVISION(OEM)

Model Number:

AP-136SMH-TVI13

Sunivision Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SUNIVISION(OEM)

Model Number AP-136SMH-TVI13

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

2016 new design !!! Color CCD waterproof camera

HD TVI Camera 1.3mp

Feature

(1) HD TVI 720P 1.3MEGPIXEL CMOS 1000TVL 500METER TRANSMIT

(2) High sensitivity in the dark environment, 0.001lux / F1.2, M12 Mountm, 0 lux(IR ON)

(3) Smart Light Control to avoid over-exposure

(4) Day and night features for 24-hour surveilliance

(5) IR distance: up to 30 meters with 36units SUPER IR LEDs

(6) IP66, suitable for outdoor use

(7) Cable inside bracket, better waterproof

(8) NR(Noise Reduction), Noise reduction keeping image sharpness

(9) For home, supermarket, shops, hotels, schools, factories and other needs of high-definition picture quality, but require a higher cost place

Specification

MODEL	AP-136SMH-TVI13
Image Device	1/3 Sony IMX238
TV Format	PAL/NTSC
Number of Pixel	PAL: (H)X (V)/NTSC:
Resolution	1200 TV lines
Sync.System	Internal
IR LED	36 units SUPER IR LEDs
IR Effective Range	UP to 30 meters
Minimum Illumination	0.1LUX/F1.2
LEN	M12 Mount 3.6MM/6MM/8MM/12MM (F1.2)
Day & Night	YES
AF Detector	Yes
Motion Detection	YES
White Pixel detection and compensation	AUTO
IP Rating	IP66
AGC	AUTO
Mirror	ON/OFF
S/N Ratio	≥58dB
White Balance	Auto
Electronic Shutter	Auto
Back light Compensation	AUTO
Video Output	1.0Vp-p composite 75ohm
Power Consumption	400mA
Power Supply	DC12V
Operation Temp	-10℃~+50℃
