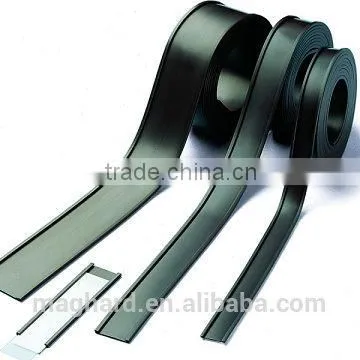

C profile isotropic flexible extruded laminated magnetic rubber foil /strips

Product name

 C shape isotropic flexible extruded laminated magnetic rubber foil /strips

Item No

20150507

Application

 Refrigerator door seal, shower room, exhibition and so on

Widh

≤ 10mm,≥ 0.9mm

user-defined

+UV,+ahedsive,+pvc,etc

Material

Rubber magnet

Packing

Export standard cartons and plywood pallets

Executive standard

ROHS/EN71;NON-PHTHALATE,etc.

MQQ

50rolls

Sample Delivery

About 3 days

Delivery time

About 10 days after sample confirmation

Remark

We can print any size at any quantity. If you would like to order a different size &quantity which is not listed above, please contact us for a quote

Size Range (unit: mm)

Min

Max

Roll

length

/

/

width

/

610

thickness

0.4

1.5

Sheet

length

/

1000

width

/

630

thickness

0.3

10

Strip

width

5

80

thickness

0.9

10

Remark

the common packing for roll material is 30m/roll or 50m/roll; it also depends on the specific width and thickness of the product as well as the shipping terms.

Tolerance (unit: mm)

Calendered Sheet

Extruded Strip

Die Cut Part

length

-3

+1.5/-0(m)

+/-0.3

width

-3

+/-0.3

+/-0.3

thickness

>=1.0

+/-0.08

+/-0.15

+/-0.08

<1.0

+/-0.05

+/-0.05

TYPE

MH-7

MH-9

MH-12

MH-13

tensile strength (mPa)

>2.0

>2.3

>3.0

>2.8

elongation (%)

20

30

30

18

hardness (shore D)

30-40

30-45

30-50

30-45

density (g/cm3)

3.65-3.75

3.65-3.75

3.70-3.80

3.70-3.80

temperature range (°C)

-40~100

-40~100

-40~90

-40~90
