Roller Conveyor Machines Q69 Shot Blasting Machine/shot blast equipment
COMPANY
•Founded in 2003, is mainly focus on the prouduction and development of casting machinery and enviromental protection.
•After exploring market for 10 years, it gradually formed three leading products: surface cleaning, sand treatment, environmental protection equipment.
•One of the industrialization of entity collecting scientific reseaech, development,production and operation.It has fomed the domestic engineering center of complete sets equipment for shot blast cleaning machine.
•Production desigh all adopt CAD computer aided design.The production base and thchnology development center of casting machinery which has whole variety, high technical content in China foundry machinery industry.
•As a foundry machinery professionaol manufactuers, the company has advanced level at technology, product quality and automation level in the same industry at home.
• Specially equipped with wear-resistant parts factory, to provide customers the best quality accessories service.
2:feather

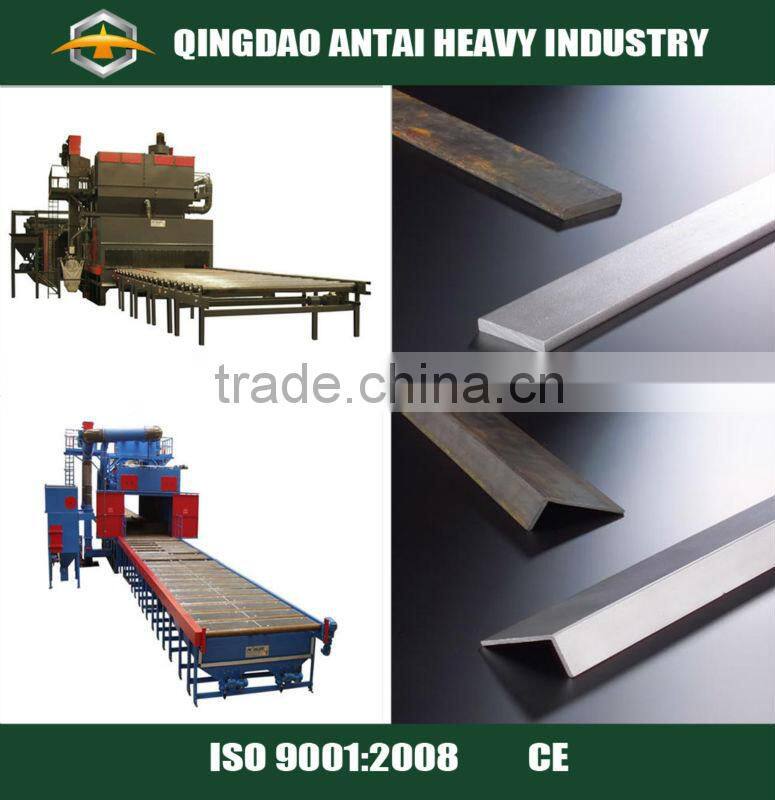

Pass through steel shot blasting machine is designed and produced by adopting the advantages of similar products from both within the country and abroad. The rusting cleaning part ( pass through shot blasting) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator (shot blasting machine). The preheating and drying part of shot blasting machine may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of steel plate type shot blasting machine is controlled by PLC, and is the large-size complete equipment of international advanced. steel shot blasting machine.
3:steel plate Shot blasting machine Technical Specification:
Technical parameter of pass-through type shot blasting machine Q69 | |||||||||
No. |
Model |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
|
1 |
Width of workpiece |
mm |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
2 |
Size of inlet opening |
mm |
800* |
1200* |
1500* |
2000* |
2500*800 |
3000*800 |
4000*400 |
3 |
Length of workpiece |
mm |
1200- |
1200- |
1200- |
1200- |
3000-12000 |
2400-12000 |
4500-18000 |
4 |
Roller speed |
m/min |
0.5-4 |
0.5-4 |
0.5-5 |
0.5-4 |
0.5-4.5 |
0.5-4 |
2-8 |
5 |
Thickness of plate |
mm |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-110 |
6 |
Abrasive flow rate |
kg/min |
8*120 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
7 |
Abrasive initial fill |
kg |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
8 |
Adjusting height of rolling brush |
mm |
400 |
200 |
350 |
450 |
600 |
850 |
900 |
9 |
Ventilation capacity |
m3/h |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
10 |
Total power of shot blast machine |
kw |
90 |
78.3 |
113.6 |
156.6 |
224.55 |
204.8 |
293.6 |
If you are interested in this equipment, please don't hesitate to contact us!
If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
4: Before and after the workpiece cleaning(Compare the photos)
5: Certification:
6: Commercial terms for shot blasting machine:
1. MOQ: 1 set
2. Quality guarantee: 12 months from installation date
3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C
