Home > Products > Steel plate blast & painting machine > Q69 Series Pass-through Type Steel Plate and H Beam Cleaning Shot Blast Machine
Q69 Series Pass-through Type Steel Plate and H Beam Cleaning Shot Blast Machine
- Qingdao
- T/T Money Gram
You May Like
-
Q69 Series Shot Blasting Machine/shot Blast Machine for Steel Plate and H Beam
-
Cleaning Machine/ Roller Conveyor Type Steel Plate and H Beam Cleaning Shot Blast Mahcine
-
Q6910 Roller Conveyor Type Steel Plate and H Beam Cleaning Shot Blast Mahcine
-
Q6910 Roller Conveyor Type Steel Plate and H Beam Cleaning Shot Blast Mahcine
-
Q69 Steel Plate Shot Blasting and Painting Machine
-
Used Shot Blasting Machine/steel Shot Blasting Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | antai | Model Number | Q6920 | |
| Feature | Critical Cleaning / Residue Free | Fuel | Electric | |
| Certification | CE | Use | Deflashing, Descaling / Stripping | |
| Cleaning Process | Other, steel shot | Cleaning Type | Other, Pass-through type/Roller conveyor type/Shot blasting | |
| Industry Used | Other, containers/boiler maker,motorcyles,watercrafts,engineering machinery | Material | Metal / Coil | |
| Power(W) | 240Kw | Dimension(L*W*H) | 30650x6850x9095 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Design based on requirments2.Roller conveyor type
3.Prompt delivery
4.High quality and competitive price
5.ISO 9001:2008

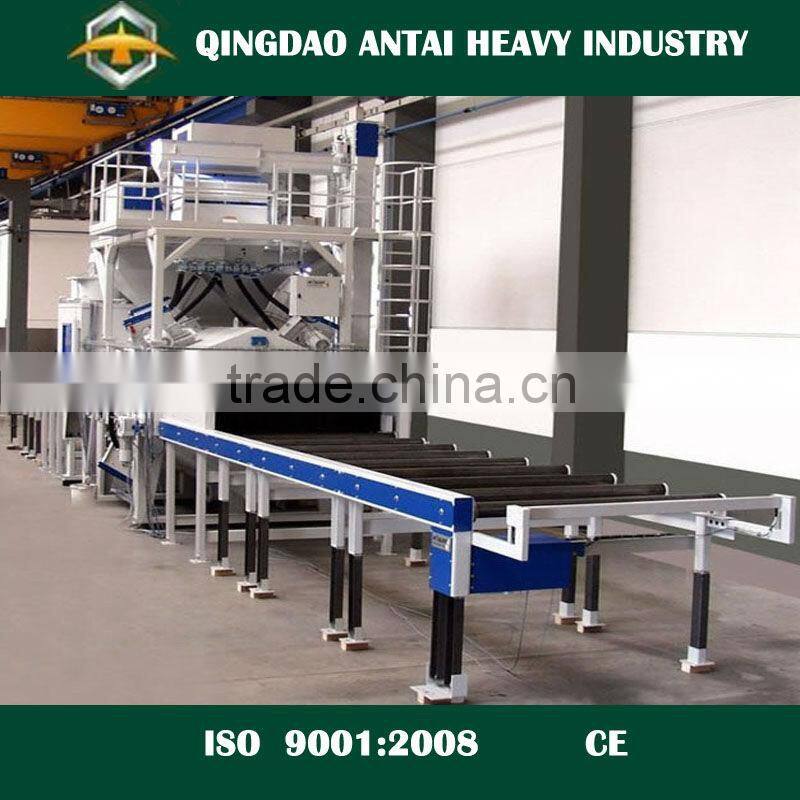

Name: Q69 series pass-through type shot blast/blasting machine for steel plate, H beam and steel pipes
Model NO.: Q6920
Suitable for cleaning steel structure, profile, welded frame,etc
With overhead rail for loading the workpiece in and out
Commercial terms for shot blasting machine:
1. MOQ: 1 set
2. Quality guarantee: 12 months from installation date
3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C.
Special Features:
- Suitable for removing oxidized surface, rust and other matters on steel structure, profile, steel plate and metal parts to gain bright metal surface.
- Can improve technique characteristics of H-steel and surface of steels, enhance resistance to rot, promote quality of products and decrease labor force and pollution in work site.
- Best choice for steel frameworks, motorcycles, watercrafts, engineering machinery, chemical metallurgy, containers and the boiler manufacture industry.
| No. | Q698 | Q6912 | Q6915 | ||
| 1 | Width of workpiece | mm | 800 | 1200 | 1500 |
| 2 | Size of inlet opening | mm | 800*1600 | 1200*400 | 1500*400 |
| 3 | Length of workpiece | mm | 1200-12000 | 1200-6000 | 1200-12000 |
| 4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 |
| 5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 |
| 6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 |
| 7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 |
| 8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 |
| 9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 |
| 10 | Total power (no dust collector) | Kw | 90 | 78.3 | 113.6 |
More machinery based on differenent size is available.
Special design based on the requirements of client is available.
ABOUT US

Other series products of our company:

Note: If anyone else says the same words as the above mentioned, it must be a FAKE !
For more items of Shot Blasting Machine and their details, please contact us
TODAY by e-mail. Thanks.
Contact Us
- Qingdao Antai Heavy Industry Machinery Co., Ltd.
- Contact nameyan Ji Chat Now
- Phone86-0532-88138566
- AddressShanghaidongyi Street No297,Jiaonan City,Qingdao City, Qingdao, Shandong
