Help CenterCast Steel Shot for Shot Blasting Machine Used
Related Products
-
Steel Grit for Shot Blasting Machine UsedUS$ 500 - 850MOQ: 1 Ton -
Cast Steel Shot/Steel Grit for Shot Blasting Machine Used/ AbrasivesUS$ 500 - 850MOQ: 1 Ton
-
Sand Blasting Steel Shot Abrasive Blasting for Polishing S780US$ 500 - 850MOQ: 1 Ton
-
Sand Blasting Steel Shot Abrasive Blasting for Polishing S460US$ 500 - 850MOQ: 1 Ton
-
Steel Shot S660/SS2.0mm-High Quality With Competitive PriceUS$ 500 - 850MOQ: 1 Ton
Qingdao Antai Heavy Industry Machinery Co., LTD
Located in Jiaonan industrial park on the west coast of Qingdao, China
Founded in 2003, 10 years experience in shot blasting machine.
13 experienced engineers for considerations of every customer.
Over 108 high quality workers to ensure product’s quality and quantity.
3D software for auxiliary design. Show every design details in front of you.
Engineers available to service machinery overseas.
CE, ISO 9001:2008 verified company.

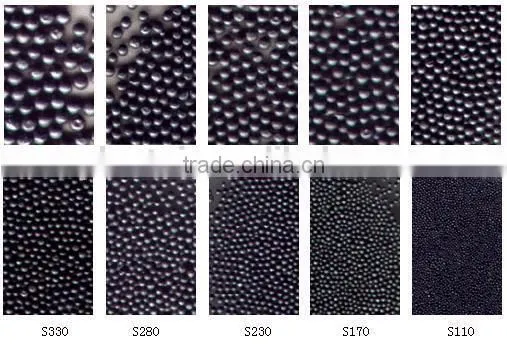

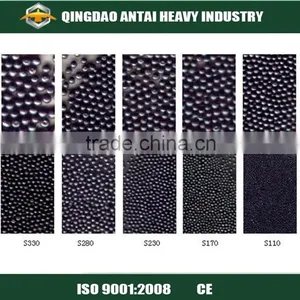

Model for steel shot:
S780/SS2.5,S660/SS2.0,S550/SS1.7,S460/SS1.4,S390/SS1.2,S330/SS1.0,S280/SS0.8,S230/SS0.6, S170/SS0.5,S110/SS0.3,S70/SS0.2.
Specification for steel shot:
Products |
Steel Shot |
|
Chemical Composition |
C |
0.80% (m/m) to 1.2% (m/m) |
Mn |
0.35% (m/m) to 1.2% (m/m) |
|
Si |
min. 0.4% (m/m) |
|
S |
max. 0.05% (m/m) |
|
P |
max. 0.05% (m/m) |
|
Microhardness |
Normal:40~50HRC (377~509HV) |
|
Hardness Deviation |
Max Deviation ±3.0HRC |
|
Microstructure |
Tempered Martensite or Sorbite |
|
Density |
7.2g/cm3 |
|
Standards for steel shot:
SAE J827 Cast Steel Shot,
ISO11124-3High Carbon Cast Steel Shot and Grit.
YB/T5149-1993 Cast Steel Shot,
SFSA20-66Cast Steel Abrasive.
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and OEM etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
♦ About the spare parts, we have a perfect after-sale system. Each customer will has a ID, and you log into the system all information could be checked. 24 hours service will be supplied.
vistis from overseas:
packing and shipping:
Packing: Equipments finish their painting and coating before delivery. Then they are wrapped with stretch film to protect the surface. Meanwhile we can use vibration-proof material in electric cabinet.
Steel Shot Packing Types:
braided bag packing,flexible container packing,stock packing,paper bag packing,barrel packing
General Packaging :
♥ 25kg per bag ,40 bags in one pallet
♥ 25kg per bag ,40 bags in one jumbo bag
♥ 25kg per paper bag ,40 bags in one plywood pallet
♥ One ton a bulk bags
♥ According to customer requirements
Shipping: Antai Heavy Industry has about 15 professional engineers and 108 technical workers. Such advantages ensure the delivery time. We have established long-term partnership with MSK and PIL. We could guaranty the goods delivered timely.
Worldwide markets:
Enterprise products markets share is rising year by year, already sell well throughout the country more than thirty provinces, cities and autonomous regions. Meanwhile our products are popular in overseas countries, holding share about 50%.
Thank you for reading until here and the followed warranty will help you know more information.
1. How many days do you need to produce this machine?
This is our standard machine and we have some machines in stock, can be delivered right away after your deposit.
This is specially designed machine according to your specific requirement. From engineers designing to production completion, it needs about 45-55 days.
2. What does your factory do regarding quality control?
We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.
3. What’s your machine quality guarantee,
Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
4. Could you give installation and commissioning overseas? How long will it take?
Yes, we supply overseas service, but customers need to pay for the engineers flight tickets and hotel, food.
Small machines usually takes 5 days, while big machines usually takes about 20 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Antai id ALIBABA’s golden supplier with BV and Tuv assessment. You can check with ALIBABA. We have never got complaint from our customers.
If the machine is not suitable for your workpiece, please tell us the following infromation:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
