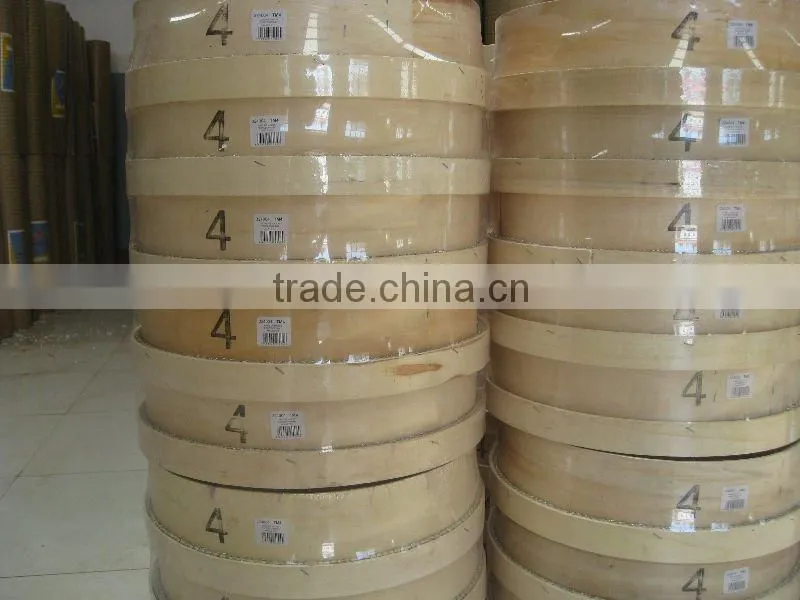

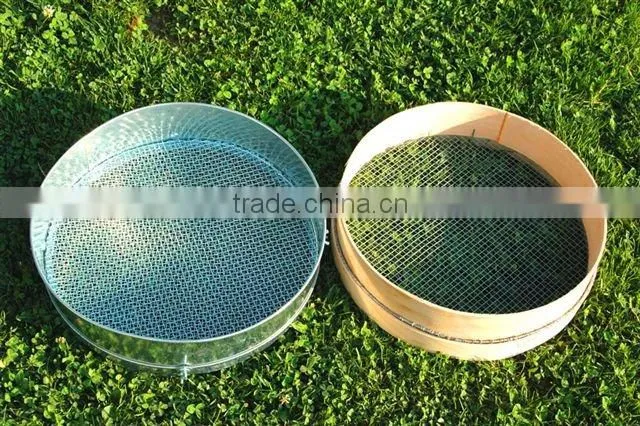

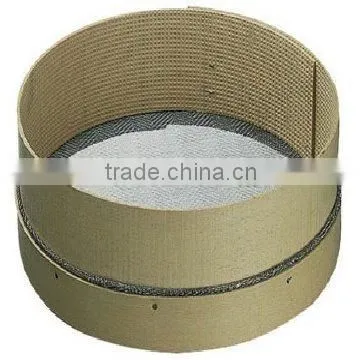

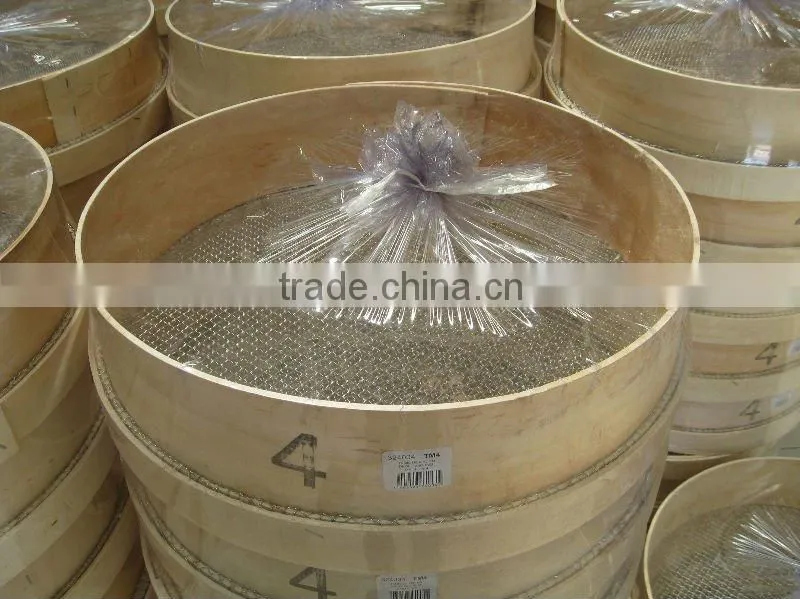

Help CenterGarden Test Sieve
Related Products
Specifications
grain test sievespecification:10*5cm
20*5cm,etc
hole size:1mesh to 500mesh
up to your requirements
grain test sieve
First,test sieve
Name |
Kind |
Diameter*Height (mm) |
Frame Thickness (mm) |
National Standard |
International Standard |
Applied Field |
|
Test sieve |
Woven Wire mesh |
200*50 200*25 |
0.6~0.7 |
GB6003.1-1997 |
ISO3310 |
For the particle materials accurately screening and particle size measuring in Chemical Industry |
Punching metal plate |
200*50 200*25 |
0.6~0.7 |
GB6003.2-1997 |
ISO3310 |
Notes. 1.It could be made by your requirement!
2.Installed in the Slap-style experimental machine or standard screen
machine,It is used for grading particle composition of various powder material.
3.Screen frame is made of high quality stainless steel tensed and polished, the overall shape, durable .Mesh and screen frame are fixed by soldering, high temperature capability of 300 degrees below. The up and down screen frame is taken in cone shape, up and down completely sealed after installation, between screen frames electrostatic adsorption can be grounded to avoid, fine powders go smoothly.
second,woven wire mesh test sieve
Product Name |
Aperture of Square Mesh (mm) |
Aperture of Triangle Mesh(mm) |
Sieve Mesh Material |
Woven wire mesh test sieve |
0.02—2.36mm |
≥0.005mm |
Brass H80,Stainless steelSUS304 |
Wire mesh screen is signed by standard sieve size and mesh size, chemical processing by electroplating, so smooth and wear-resistant screen surface, while the fixed nodes with silk warp and weft, long-term use will not deform the mesh. All screens are confirmed by microscope and projector strict inspection. Our promise: new test sieve mesh is not valid.
third,Punching metal plate test sieve
Product Name |
Aperture of Mesh(mm) |
Sieve Mesh Material |
Punching metal plate test sieve |
≥3mm |
Stainless steel |
Meanwhile our company also produces slap-style test sieve shaker, standard sieve machine assorted with test sieve, installed up to 8 layers .The TIMER e equipped could ensure the time,and that each production or test consistency.
