Alkali-resistant Fiberglass Mesh Factory

US$ 0.09 - 0.6 MOQ: 10 Rolls

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

XQY

Model Number:

002

Anping Xinqinye Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name XQY

Model Number 002

Application Heat Insulation Materials

Weight 50-300G/M2

Width 1-2M

Mesh Size 3-10MM

Weave Type Plain Woven

Yarn Type E-Glass

Alkali Content Medium

Standing Temperature 280 degree

Specifications

alkali-resistant fiberglass mesh
1.Mesh size:3.3 - 10*10
2.Width:0.3-2m,Length:50m-100m
3.Weight:60g-300g/m2

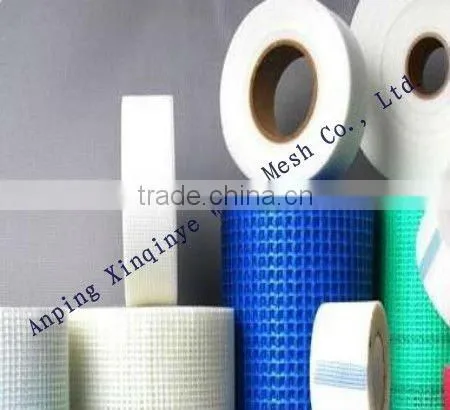

alkali-resistant fiberglass mesh/ Fiberglass Mesh

Application : For Building internal and external wall insulation, waterproofing, Anti -crack, etc.

Specification :

1. Mesh Size : 3 MM X 3 MM- 10 MM X 10 MM

2. Unit Weight : 50-300g/m2

Colors: white , yellow, blue, green,orange,red or other color as request.

TECHNICAL DATA SHEET
Fiberglass Alkaline-Resistance Mesh
Item Number	Yarn(Tex)		Mesh size(mm)		Density Count/25mm		Finished weight(g/m2)	Tensile StrengthX20cm		Woven Structure	Content of resin%(≥)	Color
Item Number	Warp	Weft	Warp	Weft	warp	Weft	Finished weight(g/m2)	Warp	Weft	Woven Structure	Content of resin%(≥)	Color
WS 5X5-70	45X2	200	5	5	5	5	7 0	550	850	Leno	16	Any
WS5X5-80	67X2	200	5	5	5	5	8 0	700	850	Leno	16	Any
WS 5X5-90	67X2	250	5	5	5	5	9 0	700	1050	Leno	16	Any
WS5X5-110	100X2	250	5	5	5	5	110	800	1050	Leno	16	Any
WS 5X5-125	134X2	250	5	5	5	5	125	1200	1300	Leno	16	Any
WS 5X5-135	134X2	300	5	5	5	5	135	1300	1400	Leno	16	Any
WS4X4-135	100X2	250	4	4	6	6	135	1000	1300	Leno	16	Any
WS 5X5-145	134X2	360	5	5	5	5	145	1200	1300	Leno	16	Any
WS 4X5-150	134X2	300	4	5	6	5	150	1300	1300	Leno	16	Any
WS 5X5-160	134X2	400	5	5	5	5	160	1450	1600	Leno	16	Any
WS 4X4-160	134X2	300	4	4	6	6	160	1550	1650	Leno	16	Any
WS 4X5-165	134X2	350	4	5	6	5	165	1300	1300	Leno	16	Any
WS5X5-250	134xX2	570	5	5	5	5	250	1700	2550	Leno	16	Any
WS4X5-300	134X2	800	5	5	5	5	300	1800	2700	Leno	16	Any
