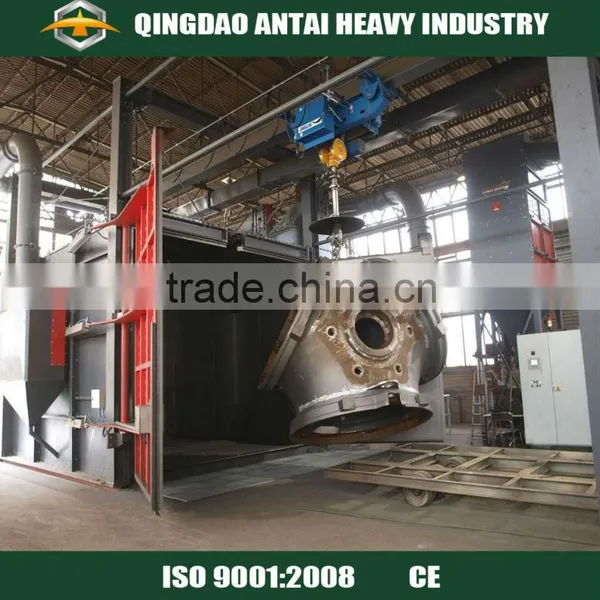

AT378 Hook Type Shot Blasting Machine/hook Lift

AT378 Hook Type Shot Blasting Machine/hook Lift thumbnail-1
AT378 Hook Type Shot Blasting Machine/hook Lift photo-1
US$ 6,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ANTAI
Contact Supplier Request Quote Chat Now
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name ANTAI
Model Number AT378
Feature Critical Cleaning / Residue Free
Fuel Electric
Certification CE, Other, CE, ISO
Use Burnishing, Descaling / Stripping
Cleaning Process Other, steel shot
Cleaning Type Clean-In-Place (CIP)
Industry Used Electronic Industry
Material Metal / Coil
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Double hook or single hook
2.Two turbine wheels
3.Competitive Price
4.ISO 9001:2008



Hanger spinner hook shot blasting machine

1.Hanger spinner hook shot blasting machine suite to multiline varieties, small quantizes of castings, forgings and steel parts for surface cleaning and enhancement to remove the work piece surface of a small amount of viscous-sand, sand core and oxidative skin.



2.Hanger spinner hook shot blasting machine suited to heat treatment on the surface clean-up and enhancement. Right inappropriate collision slender, thin-walled parts cleaning.



3.Hanger spinner hook shot blasting machine applies equally to clean up parts special tooling will be disassembled into liquidation conducted peen, such as aluminum alloy wheels, round or square billet, bar, and the work piece to clean the work piece size adjustable section, the number and angle of peen layout through computer simulation, uniform cleaning effect.



  Hanger spinner hook shot blasting machine Technical parameters



Item

Unit

Q376

Q376B

Q378C

Q3710

 Q3720

Q3730

Q3750

Q37100

Maximum weight of cleaning

Kg

500

600

800

1000

2000

3000

5000

10000

Abrasive flow rate

Kg/min

2*200

2*200

2*250

2*250

3*250

3*250

4*250

5*250

Ventilation capacity

m3/h

5000

5000

5000

5000

9000

11000

14000

16000

Lifting amount of elevating conveyor

T/H

24

24

30

30

45

45

60

75

Separating amount of separator

T/H

24

24

30

30

45

45

60

75

Max overall dimensions of suspender

mm

 Ø600

*1200

Ø700

*1200

Ø1000

*1600

Ø1200

*1800

Ø1400

*2200

Ø1600

*2300

Ø1800

*2500

Ø3000

*3000





  • The Hanger spinner hook shot blasting machine blast cabinet wear plates: 65Mn
  • The Hanger spinner hook shot blasting machine blastwheel is a simple proven design and it is a workhorse. The Hanger spinner hook shot blasting machine blastwheel assembly is dynamically balanced, and made of 15-18% high chrome for long life, it is direct drive with a double disk design.
  • The Hanger spinner hook shot blasting machine media cleaning/recycling system: bucket elevator with airwash separator
  • Electric Control System: operator control panel with an operating voltage of 380V, 3 phase,50Hz/460V, 3 phase, 60 Hz/customized
  • The Hanger spinner hook shot blasting machine bag type dust collector/filters type dust collector (which can be customized)
  • Payment terms: 30% in advance, 100% due prior to shipping

  • If you are interested in this equipment, please don't hesitate to contact us!



     If the machine is not suitable for your workpiece, please tell us the following infromation:





    1)     What kind of workpiece will you clean?



     2)    The size of workpieces(length, width and height of maximum  workpiece,Length, width and      height of minimum workpiece?)



     3)     How many  the weight of maximum and minimum workpiece?



     4)     Please tell us your requirement cleaning efficiency?



    According to your infomation, the most suitable machines will be designed for your workpieces.

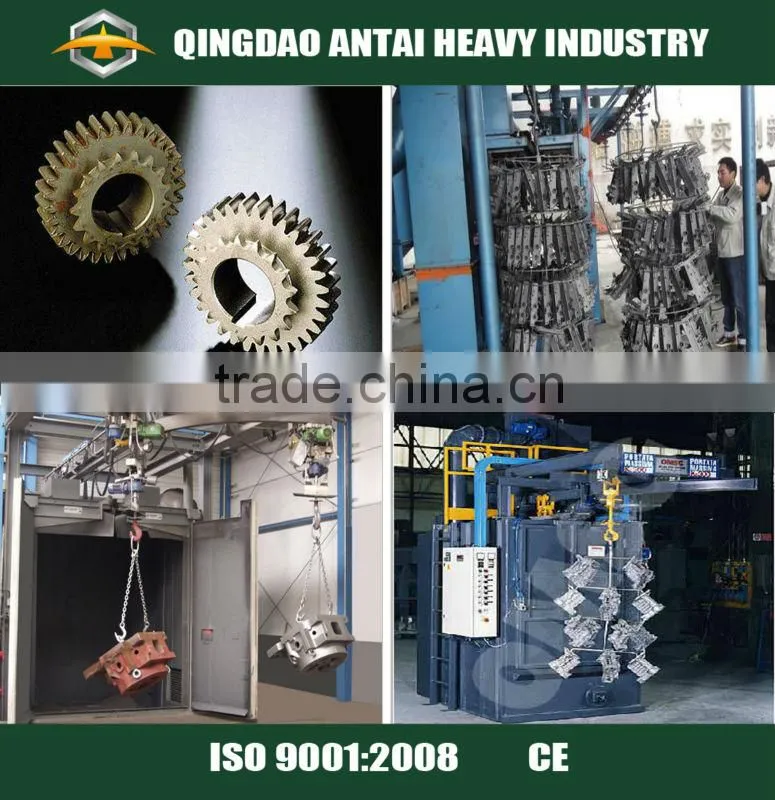

    Before and after the workpiece cleaning(Compare the photos)

       AT378 hook type shot blasting machine/hook lift

     Certification:

    AT378 hook type shot blasting machine/hook lift

     6:    Commercial terms for shot blasting machine:



    1. MOQ: 1 set

    2. Quality guarantee: 12 months from installation date

    3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C
