Specifications
1.Pulse jet blow2.Bag house filter
3.Combined dust collector
4.For foundry induction furnace
5.Competitive price
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

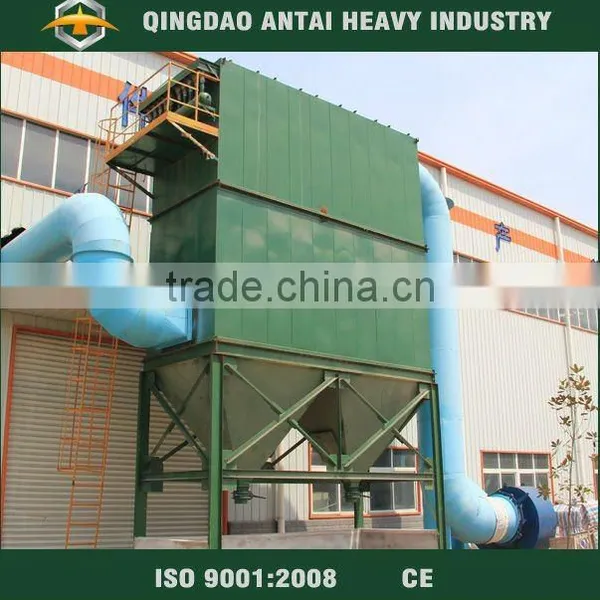

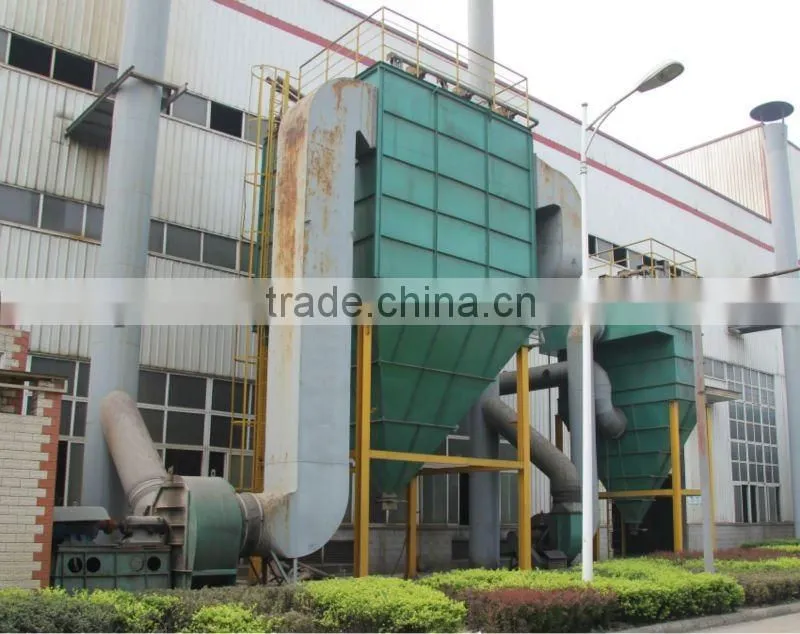

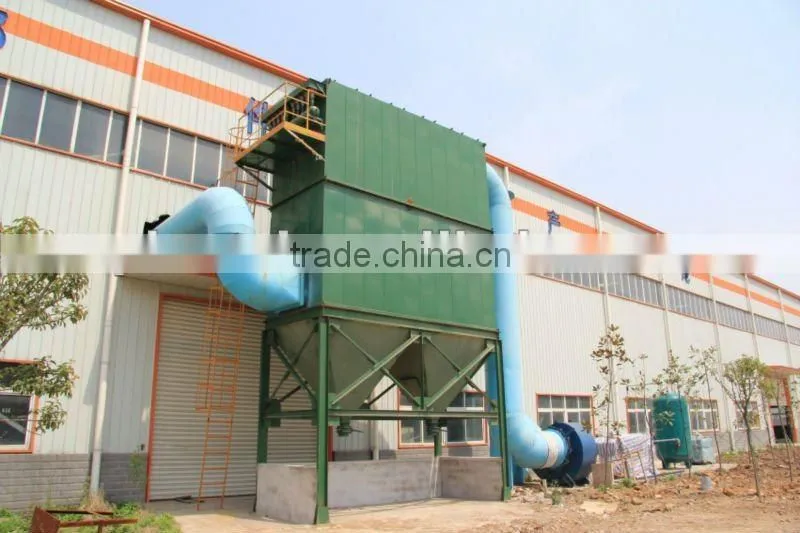

Dust collecor machine
Baghouses dust collector (also called pulse jet baghouse, pulsejet dust collectors, etc...) are self contained, fully automated where needed. We also supply and install ducting, access platforms, ventilation and instrumentation. Baghouses are engineered for dusts of 3 microns and larger, in the following applications:
- Woodworking
- Cement production
- Powder processing
- Steel melting
- Material handling
- Primary metals, including steel-making
- Metals fabrication: grinding, sawing, sanding, polishing
- Papermaking
- Mixing and blending options
- Mining
- Foundries
- Glass Plants
- Battery Plants
- Universities

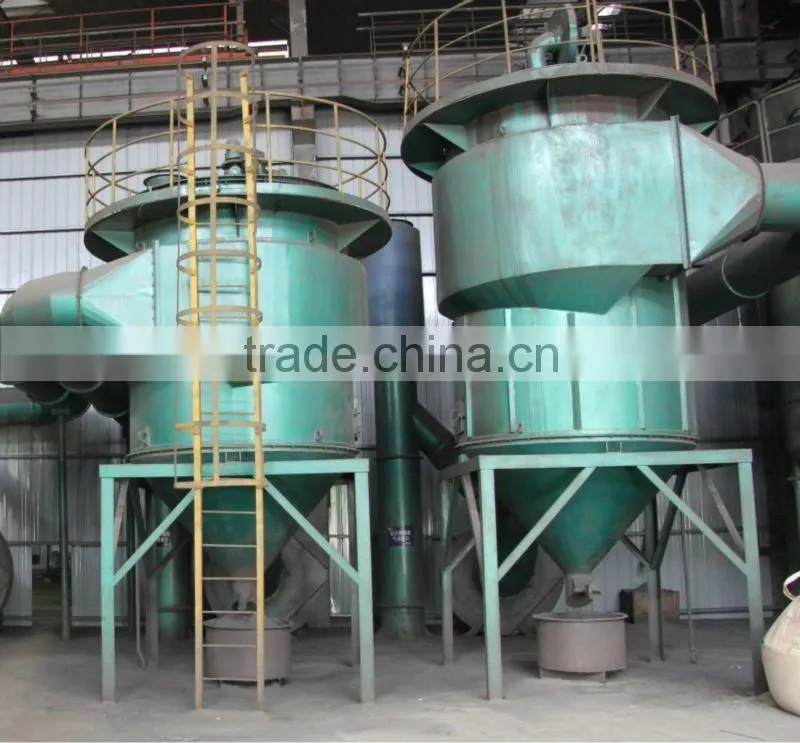

Dust collector for foundry induction furnaces:
Speicification of induction furnace dust collector:
Model |
Bag quantty |
Filtering area |
Width |
Air volume m3/h |
FD601 |
72 |
108M2 |
1150mm |
6500-13000 |
FD610 |
108 |
162M2 |
1630mm |
9700-19500 |
FD602 |
144 |
216M2 |
2198mm |
13000-26000 |
FD611 |
180 |
270M2 |
2678mm |
16500-32500 |
FD620 |
216 |
324M2 |
3158mm |
19500-39000 |
FD612 |
252 |
378M2 |
3726mm |
22700-45400 |
FD621 |
288 |
432M2 |
4206mm |
26000-52000 |
FD630 |
324 |
486M2 |
4686mm |
30000-60000 |
FD622 |
360 |
540M2 |
5254mm |
33000-66000 |
FD631 |
396 |
594M2 |
5734mm |
36000-72000 |
FD640 |
432 |
648M2 |
6214mm |
39000-78000 |
