Specifications
1.Pulse jet blow2.Bag house filter
3.Combined dust collector
4.Prompt delivery
5.Competitive price
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
baghouses (also called pulse jet baghouse, pulsejet dust collectors, etc...) are self contained, fully automated where needed. We also supply and install ducting, access platforms, ventilation and instrumentation. Baghouses are engineered for dusts of 3 microns and larger, in the following applications:
- Woodworking
- Cement production
- Powder processing
- Steel melting
- Material handling
- Primary metals, including steel-making
- Metals fabrication: grinding, sawing, sanding, polishing
- Papermaking
- Mixing and blending options
- Mining
- Foundries
- Glass Plants
- Battery Plants
- Universities
We offer a full range of collector designs and media choices to solve the toughest pollution control problems involving high temperatures, pressures and corrosives. Capacities to 200,000+ CFM.
Rugged construction is standard.
All-welded fabrication for operation to ±20" WG (rectangular models); 11 gauge, 12 vertical wire cages are standard. Top and side bag models are available.
For demanding high pressure/high vacuum applications, we offer two styles of cylindrical dust collectors: top and side dust collector bag designs. Each features all welded construction for up to 14.7 psi. Explosion containment or ASME code designs are available.
Technique parameter:
| Size of dust collector |
Amount of filter bag (piece) |
filtering area (m²) | Width(mm) | Weigh(kg) |
| FD601 | 72 | 108 | 811 | 3050 |
| FD610 | 108 | 162 | 1153 | 3600 |
| FD602 | 144 | 216 | 1552 | 4150 |
| FD611 | 180 | 270 | 1894 | 4700 |
| FD620 | 216 | 324 | 2236 | 5350 |
| FD612 | 252 | 378 | 2635 | 5900 |
| FD621 | 288 | 432 | 2977 | 6450 |
| FD630 | 324 | 486 | 3319 | 7100 |
| FD622 | 360 | 540 | 3718 | 7650 |
| FD631 | 396 | 594 | 4060 | 8200 |
| FD640 | 432 | 648 | 4402 | 8750 |
| FD632 | 468 | 702 | 4801 | 9400 |
| FD641 | 504 | 756 | 5143 | 9850 |
| FD650 | 540 | 810 | 5485 | 10500 |

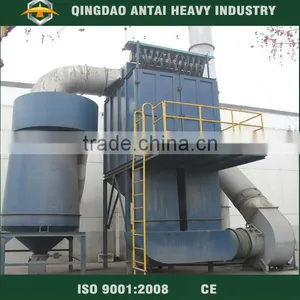

Photos of dust collector :
