1080p Mini Camera for Video Conferencing

1080p Mini Camera for Video Conferencing thumbnail-1
1080p Mini Camera for Video Conferencing photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Oneking
Model Number:
HD380-U30-K2
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Oneking
Model Number HD380-U30-K2
Type Other, Digital Camera, video conference camera
Style Other, PTZ Speed Dome
Sensor Other, 1/2.5 model,primary color CMOS,2.1M compatible
Technology Pan / Tilt / Zoom
Special Features Other, For Video Conference system

Specifications

1080p mini camera
Fast and smooth video handling
Work & Standby LED indicator
Boundary scanning
USB3.0 interface

1080p mini camera for video conferencing



Product Description



Features:

  • Private Tooling design High Definition PTZ camera
  • Fast and smooth video handling
  • Power ON-OFF switch
  • Work & Standby LED indicator
  • Speed Match
  • Auto/Manual focus/brightness/WB
  • RS-232C/VISCA Protocol
  • Lens/Dome OSD menu
  • Boundary scanning
  • Standby & wakeup status
  • Swap video format button

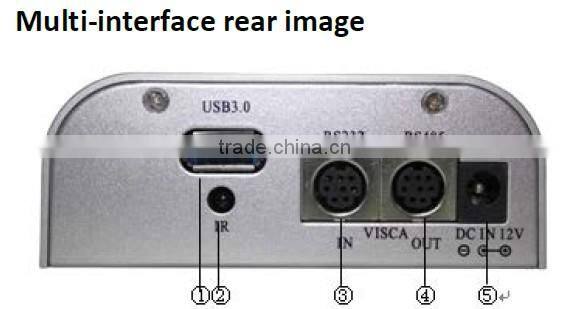

  • USB3.0 Video output

Performance:

  • 1/3" Color CMOS, 2.1 M compatible
  • 10xoptica zoom
  • 1/3.6 model f = 5 – 50.0 mm F2.0 – 2.8
  •  HOV 51.8° degree
  • 1920x1080p@30
  • Pan ±175°
  • Tilt±120°
  • 64 preset positions
  • 4 cruise lines
  •  DC 12V, 2A

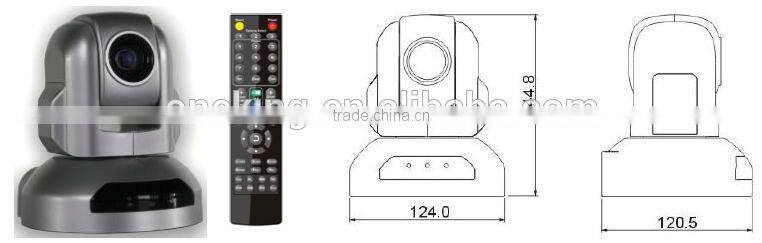

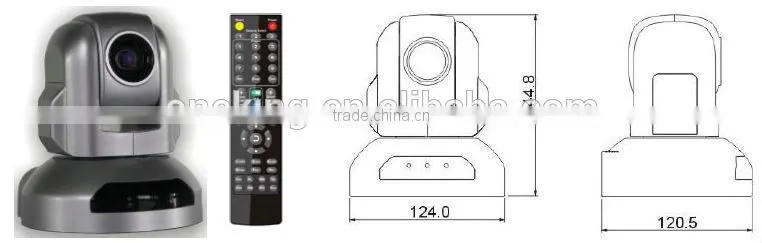

Dimension:

  • L 124mm x W 120mm x H145mm
  • 220x175x220mm (Package)
  • N. Weight: 1.4kgs
  • G. Weight: 1.7kgs

 Installation:

  • Desktop
  • Ceiling mount
  • Standard Tripod accessory
Our Services

 1080p mini camera specifications:


Sensor

Sensor

1/3" Color CMOS, 2.1 M compatible

Minimum Scene illumination

1Lux at F1.8

White Balance

AUTO/Manual

Gain Control

AUTO

Back-light compensation

ON/OFF

Electronic shutter

1/5~1/4000S

S/N Ratio

>50db

Lens

Focus

AUTO

Iris

AUTO/Manual

Zoom

10 X Optical ZOOM

1/3.6 model f = 5 – 50.0 mm F2.0 – 2.8

Video Output

USB 3.0

YUY2

Video format

YUY2 | 1920x1080@30fps, 1280x720@60fps

Control Decoder

EIA/RS-485

Communication

EIA/RS-232(Bidirectional)

PTZ Control Protocol

VISCA,PELCO-P,PELCO-D

Baud Rate

4800/9600 bps

Patrol tours

4

Preset

64

Save status after Power off

Support

Speed Matching Function

Support

OSD Menu

Support

Image Auto Flip

Support

Pan Speed

0-100 degrees/s

Tilt Speed

0-80 degrees/s

Pan Rotation Angle

359degrees

Tilt Rotation Angle

240degrees

Auto Pan Scan

Support

Boundary Scan

0-359degrees(Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V ±10% 1.2A

Operation Temperature

-10 degrees~60 degrees

Environmental humidity

0-95%RH(non-condensation)

Length X width X high

124x120x145mm/220x175x220mm(NET/PACKAGE)

Weight

800g/1300g(NET/PACKAGE)



Accessories kits in package:

  • 1xHD380-U30-K2 HD Video Camera
  • 1x DC 12V/2A Power Adaptor
  • 1x User’s manual
  • 1x Installation brackets & screws
  • 1xIR Remote Controller
Packaging & Shipping



 1080p mini camera for video conferencing1080p mini camera for video conferencing1080p mini camera for video conferencing
