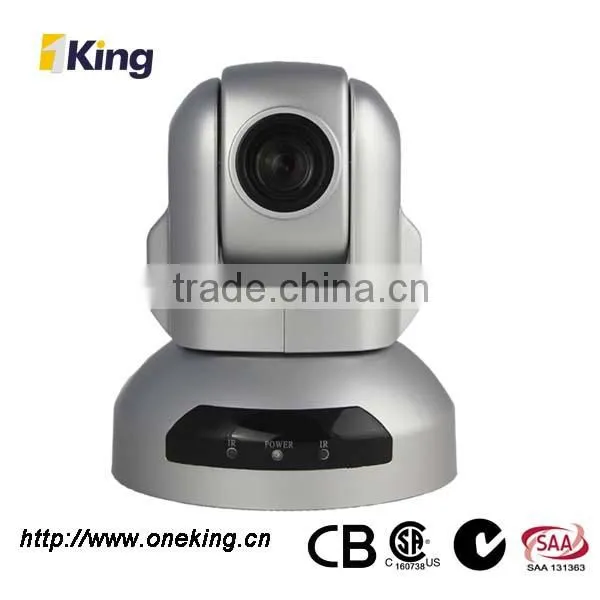

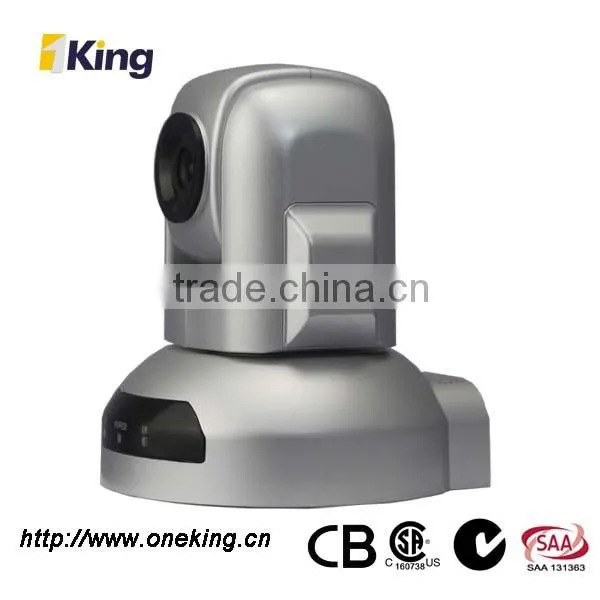

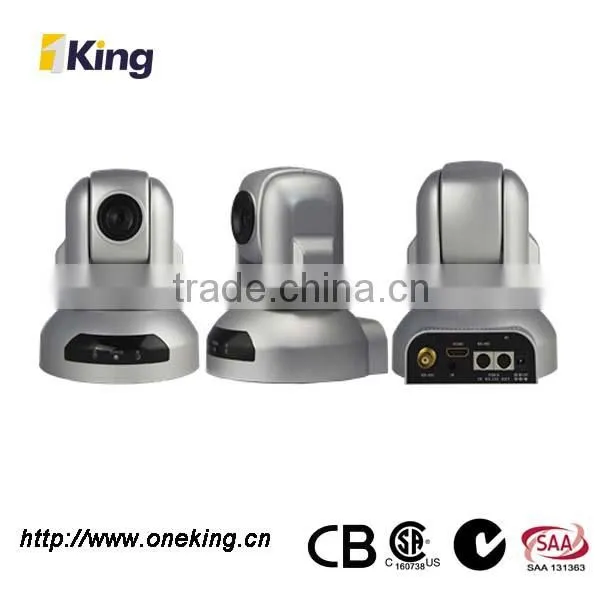

HD Pan/Tilt/Zoom Camera Supports VISCA Protocol For PTZ Control Using RS232 RS485 Protocols
How To Decribe HD Pan/Tilt/Zoom Camera
2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens, enhancing your
video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video
images. DVI-I connector is suited for DVI-D analog component which provide high-quality video display. It supports
HD-SDI Video output for further distance transmission.
What's Features Of HD Pan/Tilt/Zoom Camera?
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- RS-232C/VISCA Protocol
- Lens/Dome OSD menu
- HD SDI/ HDMI Video output
What's Performance Of HD Pan/Tilt/Zoom Camera?
- 1/3" Color CMOS, 2.1 M compatible
- 10x optical zoom
- 1/3.6 model f = 5 – 50.0 mm F2.0 – 2.8
- HOV 51° degree 1920x1080p@30
- Desktop

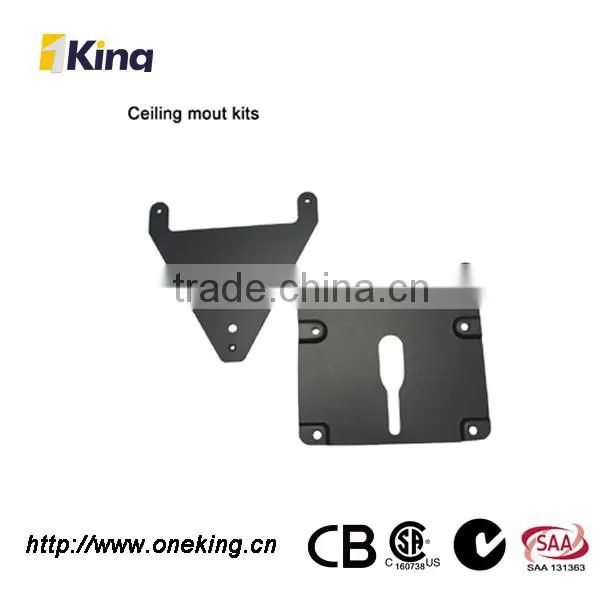

- Ceiling mount
- Standard Tripod accessory
- L 124mm x W 120mm x H145mm
- 220x175x220mm (Package)
- N. Weight: 1.4kgs
- G. Weight: 1.7kgs
What Kind Of Software Can Compatible With HD Pan/Tilt/Zoom Camera?
- Windows 7 & 8
- Mac OS X
- Adobe Connect
- Blue Jeans
- Cisco Jabber
- Cisco WebEX
- Easy Meeting
- Google Hangout
- GoToMeeting
- Lifesize
- Vidyo
What's Specification Sheet Of HD Pan/Tilt/Zoom Camera?
Model | HD380-K2 | |
Image SenSor | Sensor | 1/3” CMOS, 2.1 M compatible |
| Minimum Scene lllumination | 0.1Lux |
| White Balance | AUTO/Manual |
| Gain Control | AUTO |
| Back-light compensation | ON/OFF |
| Electronic shutter | 1/30-1/10000S |
| S/N Ratio | >50db |
Lens | Focus | AUTO |
| Iris | AUTO/Manual |
| Zoom
| 10 x Optical Zoom |
| 1/3.6model f=5-50mm F2.0-2.8 | |
Video Output | HD-SDI | |
| HDMI | |
Video format | 1080P@30,1080P@25,1080P@24,1080I@60, 1080I@50,720P@60,720P@50 | |
Control Decoder | EIA/RS-485 | |
Communication | EIA/RS-232 (Bidirectional) | |
PTZ Control Protocol | VISCA,PELCO-P,PELCO-D | |
Baud Rate | 9600/38400 bps | |
Patrol tours | 4 | |
Preset | 64 | |
Save status after Power off | Support | |
Speed Matching Function | Support | |
OSD Menu | Support | |
Image Auto Flip | Support | |
Pan Speed | 0-100 degrees/s | |
Tilt Speed | 0-80 degrees/s | |
Pan Rotation Angle | 359degrees | |
Tilt Rotation Angle | 240degrees | |
Auto Pan Scan | Support | |
Boundary Scan | 0-359degrees (Programmable) | |
Remoter Control | IR Wireless remote control P/T/Z | |
Power | DC12V ±10% 1.2A | |
Operation Temperature | -10℃~60℃ | |
Environmental humidity | 0-95%RH(non-condensation) | |
Length X width X high | 124x120x145mm/220x175x220mm(NET/PACKAGE) | |
Weight | 800g/1300g(NET/PACKAGE) | |

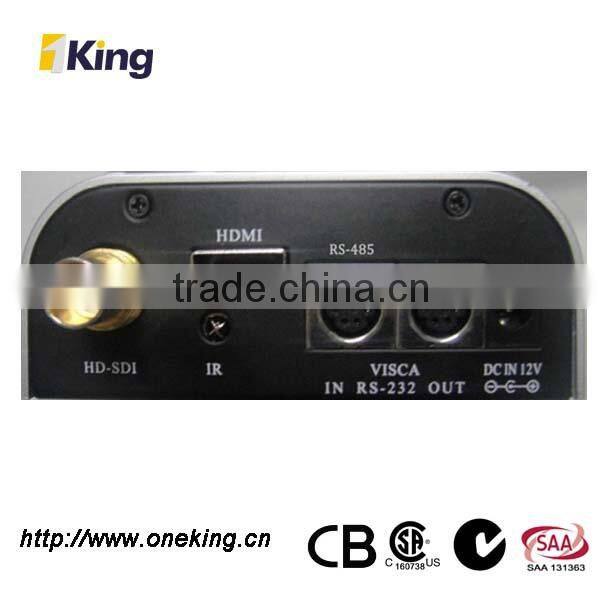

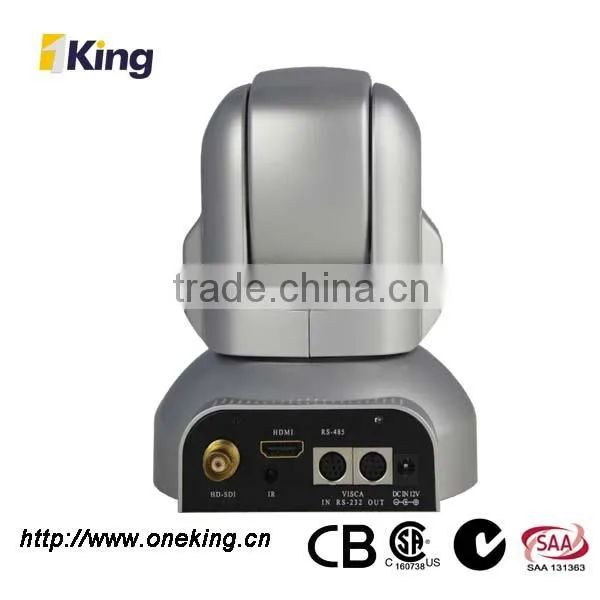

What's Interface Of HD Pan/Tilt/Zoom Camera?
a). HD-SDI HDMI interface
b). IR Receiver of R/C Signal
To receive IR remote controller signal Sensor
c). VISCA RS232C IN Connector
When connect multi cameras to PC via RS-232C (VISCA IN), use serial cable connect VISCA OUT of the first camera to VISCA IN of the second camera.
d). VISCA Out/RS-485 Control Interface
Used for connect Chain Daisy of cameras, or RS485 Control.
e). DC12V 1.2A Power supply socket
Power on/off
What's Accessories Of HD Pan/Tilt/Zoom Camera?
HD Color Video Camera (1)
12V/2.0A DC Power adaptor (1)
Installation bracket (1) , Installation screw (1)
HDMI Interface lines (3m), RS232 Cable, RS-232C to RS-485 cable

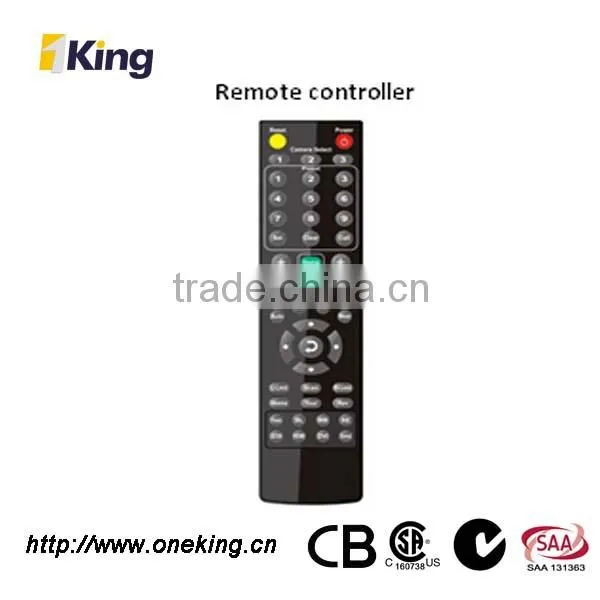

IR Remote Controller (1)
User’s Manual (1)
How To Pack & Ship HD Pan/Tilt/Zoom Camera?

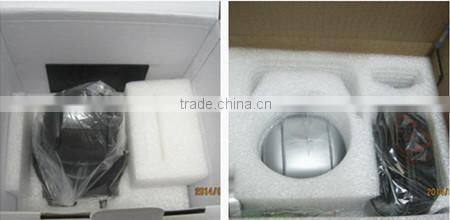

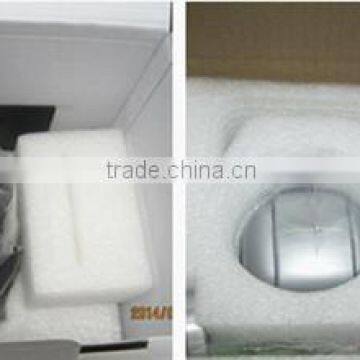

Packaing: All products will be packed in advanced carton, so the product can get effective protection to avoid damage.
Shipping
1. We shipping via DHL / EMS / UPS / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo or Ocean Freigh for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
How About Our Service Of HD Pan/Tilt/Zoom Camera?
1.All goods will nbe inspected and tersted before shipment.
2.Traking No. will be sent to you after delivery. And you will get every important shipping status by email.
3.Customers' satisfactory is important to us.If any problem or questions regacding our transaction,pls contact us by Trademanager Email Skype Wechat Whatsapp. It will be responsed within 24 hours.
What's Company Information Of HD Pan/Tilt/Zoom Camera?
Oneking Technologies was found in 2005, a high-tech enterprises which has 110 staff, engaged in designing, producing and marketing of the professional Color Video Conferencing cameras and video surveillance products over 7-year. Since 2001 we had took part in research of network video & audio products in the Institute of Shenzhen University telecommunications, and keep pace with the most advanced Technologies.
What's Oneking Managerment Of HD Pan/Tilt/Zoom Camera?
What's InfoComm Exhibition Of HD Pan/Tilt/Zoom Camera?
How About Effection Of HD Pan/Tilt/Zoom Camera?

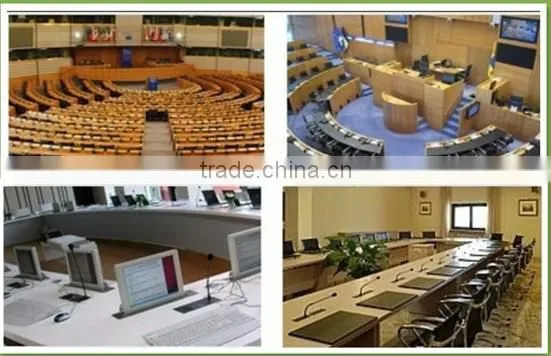

What's Example Project Of HD Pan/Tilt/Zoom Camera?
What's Certification Of HD Pan/Tilt/Zoom Camera?
What's FAQ Of HD Pan/Tilt/Zoom Camera?
Part One .:
1. What is including in an Video Conference System ?
In a complete Video Conferencing system, there is Video Camera, Audio equipments, Central control unit, and the Codec or a set Conference software based on PC in stead.
2. What is the highest resolution of this camera ?
It supports 1920x1080p@60fps progressively output, and compatible with 1080p@30fps also 720p@60fps;
3. What is the Video Connetor ?
There are DVI, HDMI, HD-SDI Video output
4. How many time zoom ?
Support 20x optical, 12x digital zoom, and for 10x, 3x, 30x zoom you can refere to
5. How to control this Camera ?
There are RS232, RS485 PTZ Control, and also support VISCA COMMANDs to control through your Codec or PC through RS232;
6. How to connect an Web Conferencing system ?
It requires an Video card connecting to PC Based Web Conference system, and we also suggest our USB Series PTZ Cameras for Web conferening system;
7. Which kind of software or hardware compatible with this Camera ?
Its compatible with PolyCom, ZTE, HUAWEI Codecs, and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO Etc.
Part Two .:
1. What We Do?
We are a manuifacturer of HD/SD PTZ color video conference cameras since 2005 year, suited for video conferenceing, broadcasting system and medicining training. Our products mainly cover:
1). USB 3.0/USB 2.0 Web Conference Camera
2). 1080p/720p Color Video PTZ Camera
3). DVI/HDMI/HD-SDI 10x 20x 30x PTZ Camera
4). AV/USB 12x/18x PTZ Standard Definition Camera
5). OEM & ODM service
Our partners include Haverford, Snapav,Peoplelink etc.
2. Why buy from Oneking?
-More than 10 years Professional OEM/ODM manufacturer of Video Conference Cameras
-More than 17 Senior R&D Engineers for Accuracy Cameras design
-More than 20 QC staff for Cameras Quality Assurance
3. How to order?
It is very easy to order if you have confirmed which product and quantity you need. But if you can't sure which product can best suitable for your needs, our sales will give you best recommend.
4. How to make payment?
1. T/T, Western Union or Paypal are accepted.
2. If buyer have any problems about Payment, pls call us ASAP.
3. For big order, we also accept L/C
